4-2
BVM-A14
Devices to be used
Name Main Specifications Equipment
Analog RGB generator . 1080/60i (1125)
SDI signal generator . 1035/60i SMPTE 240M standard/1080/60i ITU-R BT.709/
480/60i ITU-R BT601
BKM-68X Analog component input adaptor
BKM-62HS HD SDI/SDI input adaptor
Oscilloscope Frequency: DC to 150 MHz or more Tektronix 2465
2 phenomena or more (ADD mode) or equivalent
Tools
Name Part No. Remark
Extension board A-1091-210-A Z board
75 Z terminator _x 4
Adjustment screwdriver _

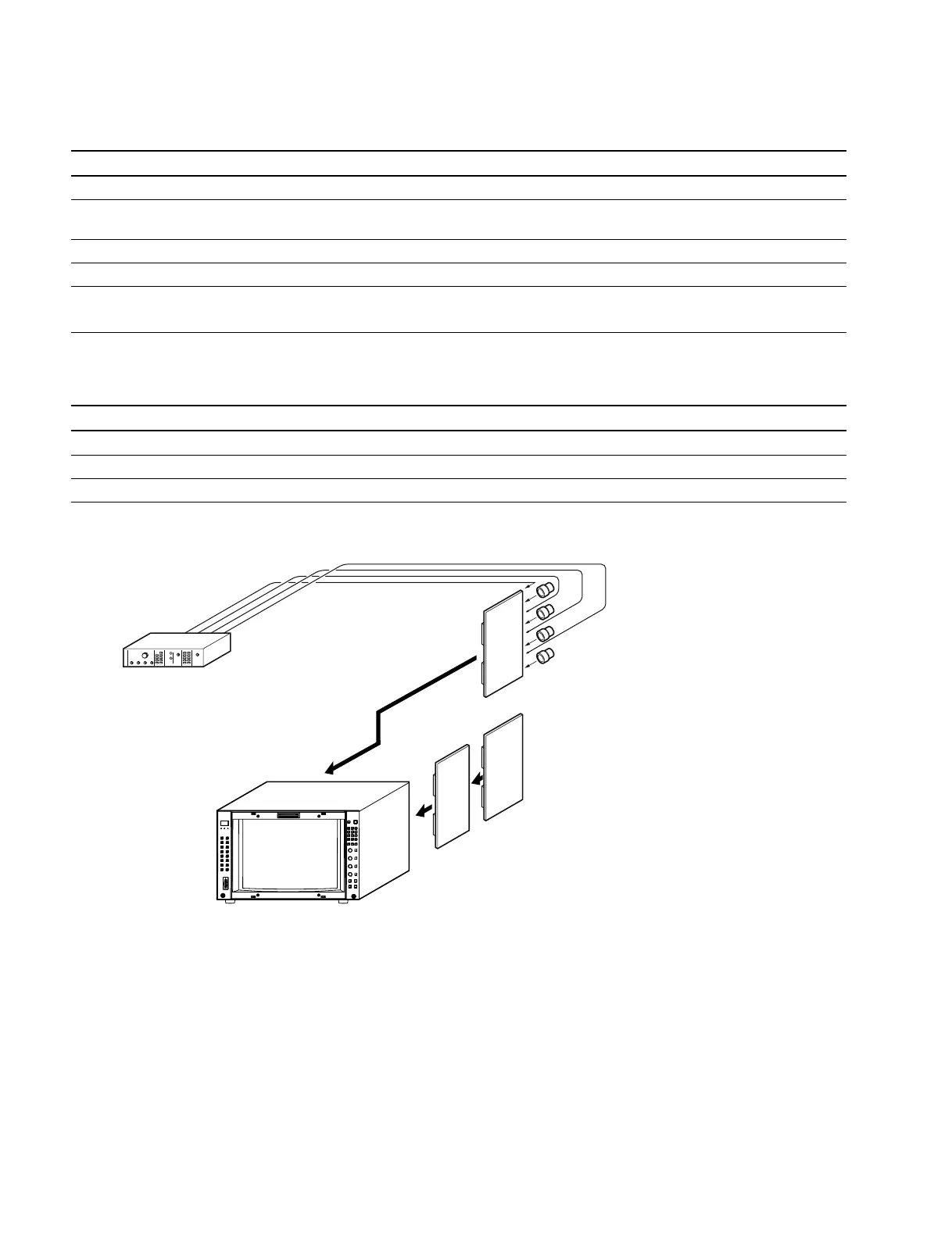

Connection (1)
BKM-68X
(analog component input adaptor)
BK board
75 Z terminator x 4
Y/G terminal
P
B/B terminal
P
R/R terminal
SYNC terminal
YPBPR signal generator
Extension
board
BVM-A14
To Next Page
