6-6
BVM-A14
No. Part No. SP Description
401 A-1091-223-A s MOUNTED CIRCUIT BOARD, C
402 X-2105-533-1 s PLATE ASSY, CORRECTION, TLH
403 X-4033-117-1 s FOOT ASSY
404 X-4033-129-6 s CHASSIS ASSY, BOTTOM
406 1-411-658-11 s COIL, LANDING CORRECTION
407
!
1-411-660-21 s COIL, DEMAGNETIC
408 1-419-183-21 s COIL, NA ROTAION
409
!
1-451-508-13 s DEFLECTION YOKE (Y14MPD-2)
411 4-050-492-03 s SPACER, DY
412 4-050-913-02 o INSULATOR (ANODE)
413 4-053-410-02 s SHIELD, DY
414 4-063-324-01 s HOLDER, LCC
415 4-303-774-03 s SPRING
416 4-306-034-01 s NUT,(B) (M5), FLANGE
417 4-348-567-01 s WASHER, CRT POSITION
418 1-452-436-41 s NECK ASSY, CRT (NA292)
419
!
8-738-373-05 s PICTURE TUBE 14MZ1 (AE, AUS)
!
8-738-375-05 s PICTURE TUBE 14MZ3 (UC)
7-682-161-09 s SCREW +P 4X8
7-682-564-09 s SCREW +P 4X14
7-688-004-02 o W 4, SMALL
1-452-032-11 MAGNET, DISC
4-051-736-23 PIECE A (90), CONV, CORRECT
4-051-736-42 PIECE A (90), CONV, CORRECT

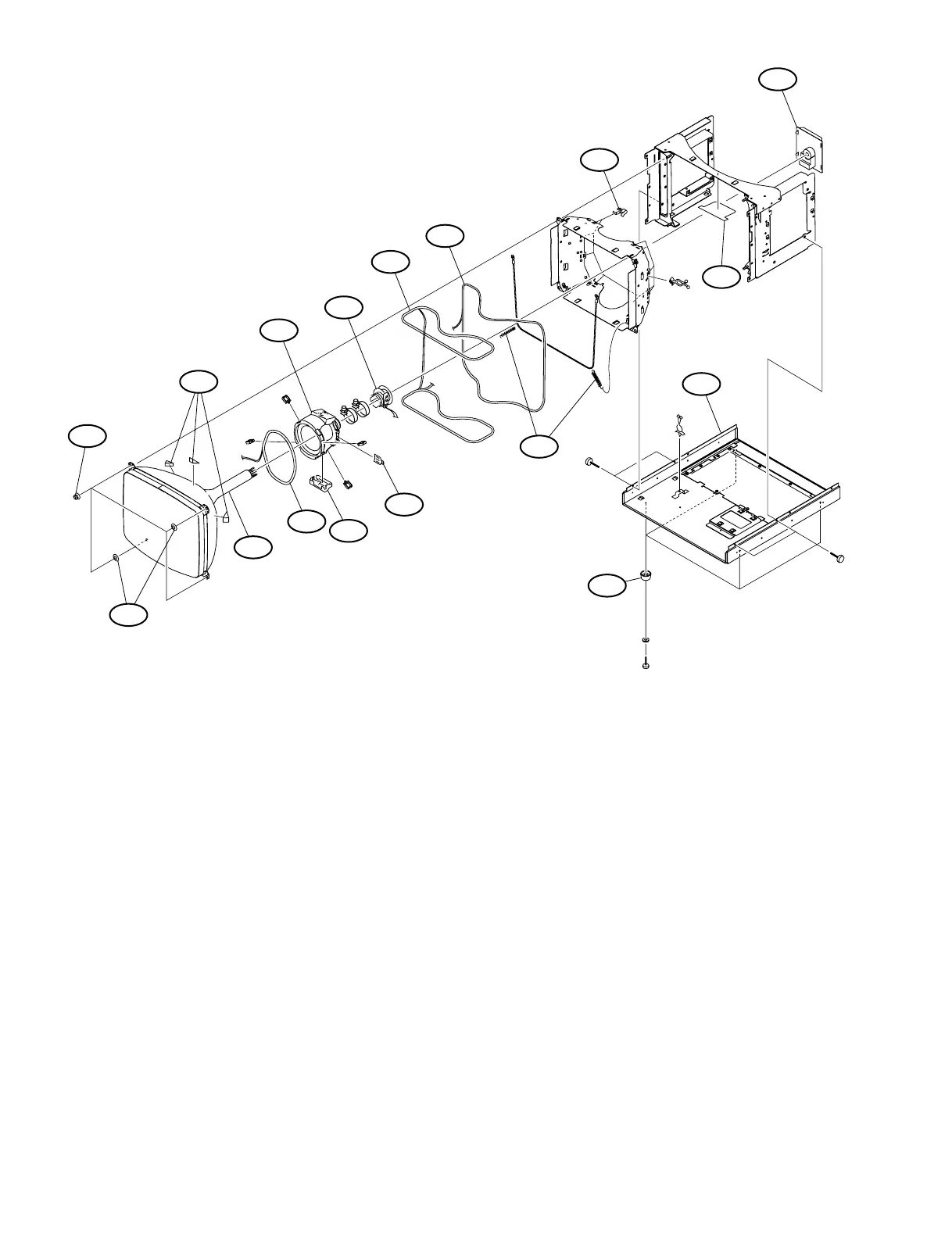

Picture Tube
403
408
413
402
419
416
409
418
407
406
414
412
404
401
415
+P 4x14
SMALL
W 4
417
411
+P 4x8
+P 4x8
To Next Page
