1-3
BVM-A14
A

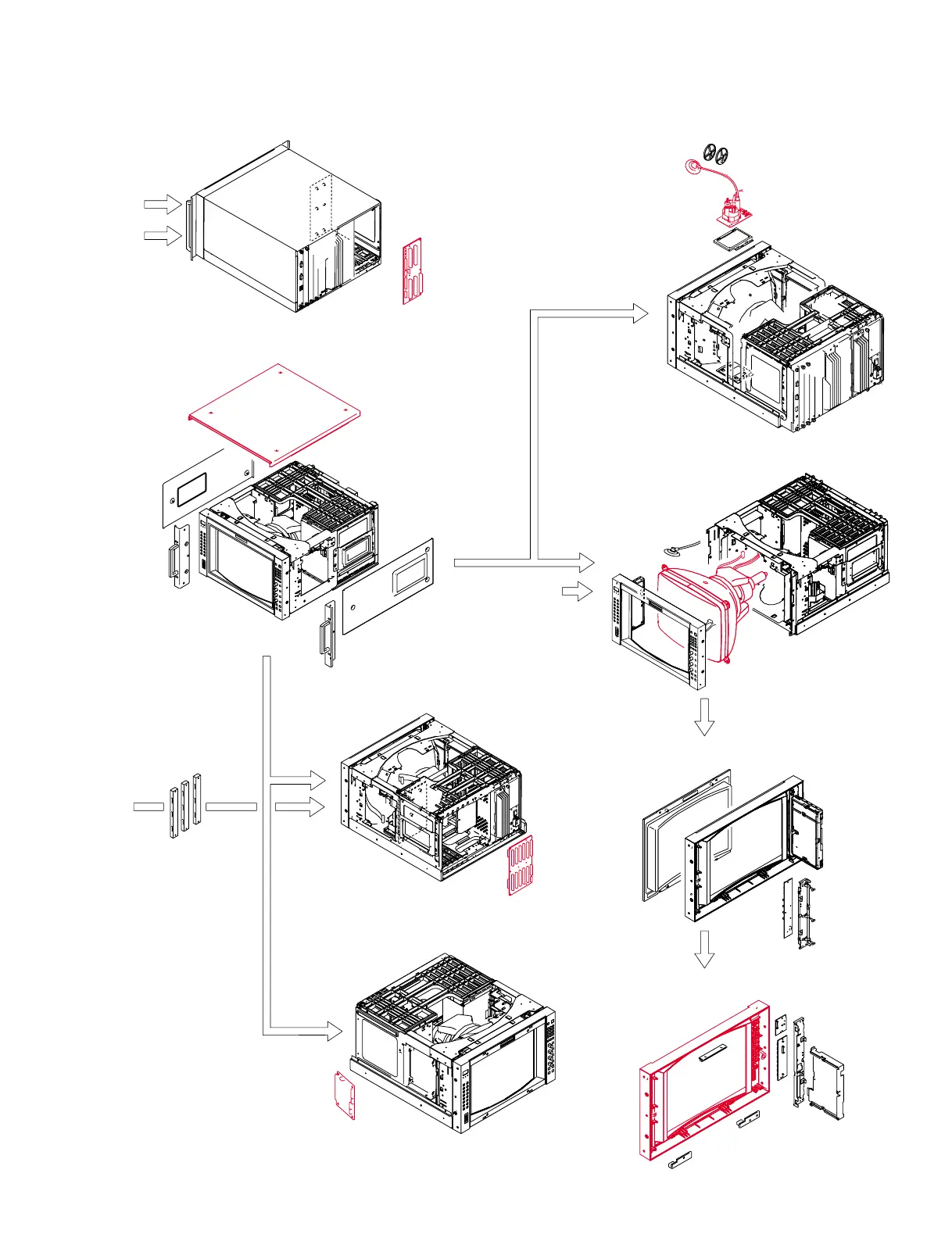

1-3-11. Cabinet
1-3-12. TB Board
1-3-13. PA Board
Remove three blank panels
before installing the board.
1-3-14. PC Board
1-3-15. CRT
1-3-16. Bezel Assembly-1
1-3-17. Bezel Assembly-2
D
B
C
1-3-10. TA Board
