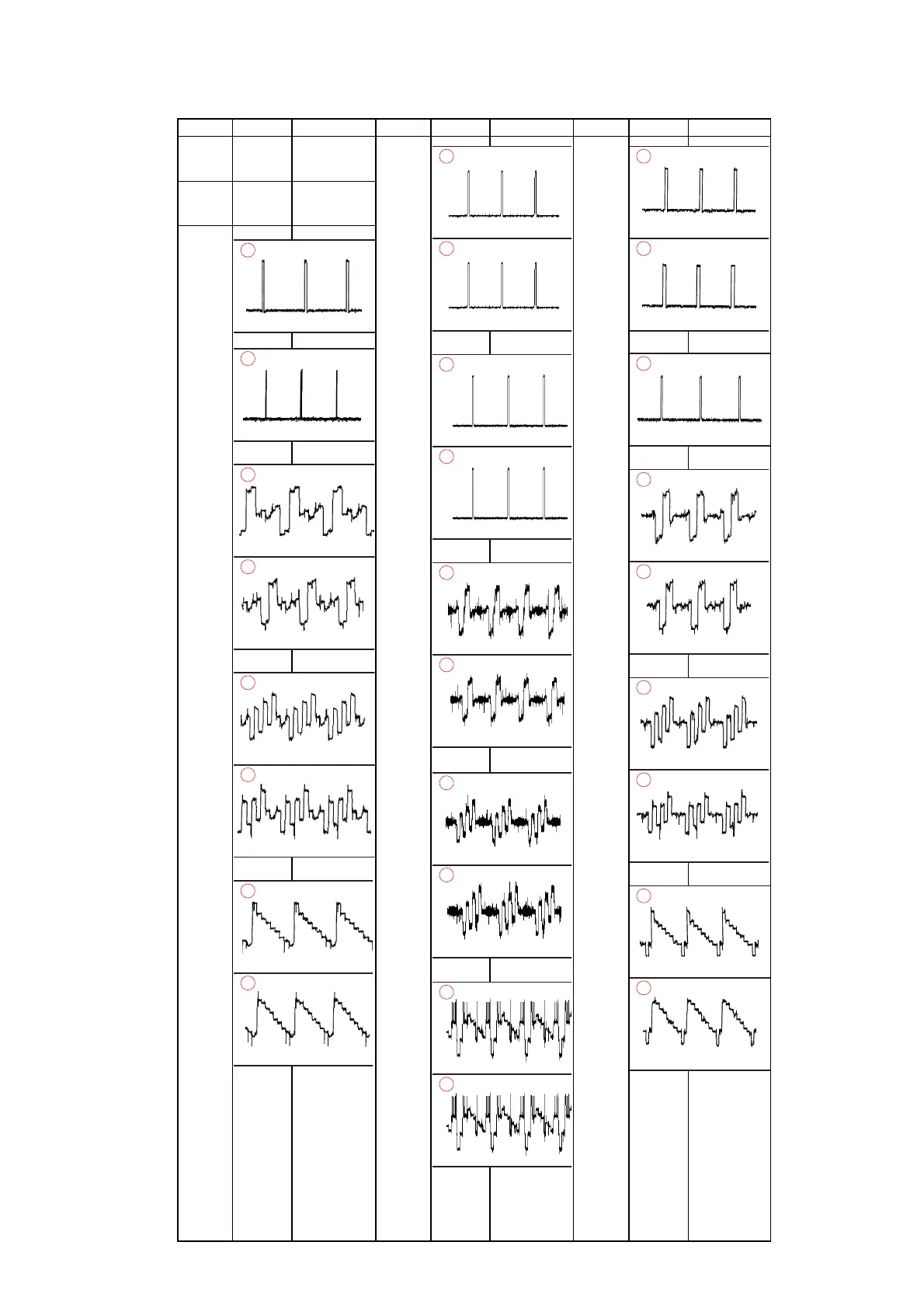

A BOARD VOLTAGE LIST AND WAVEFORM
Q8516 B 3.1
C 8.9
E 2.4
Q8518 B 3.1
C 9.0
E 2.5
3.360Vp-p
12
3.30Vp-p
13
672.0mVp-p
PA L
14
816.0mVp-p
NTSC
14
688.0mVp-p
PA L
15
832.0mVp-p
NTSC
15
913.0mVp-p
PA L
16
936.5mVp-p
NTSC
16
4.720Vp-p
PA L
17
4.880Vp-p
NTSC
17
3.920Vp-p
PA L
18
3.840Vp-p
NTSC
18
960.mVp-p
PA L
19
776.0mVp-p
NTSC
19
730.0mVp-p
PA L
20
788.0mVp-p
NTSC
20
1.390Vp-p
PA L
21
1.480Vp-p
NTSC
21
3.360Vp-p
PA L
22
3.440Vp-p
NTSC
22
3.600Vp-p
23
1.460Vp-p
PA L
24
1.540Vp-p
NTSC
24
1.400Vp-p
PA L
25
1.720Vp-p
NTSC
25
2.060Vp-p
PA L
26
1.700Vp-p
NTSC
26
