19
Important safeguards/notices for use in the
medical environments
1 All the equipments connected to this unit shall be
certified according to Standard IEC601-1, IEC950,
IEC65 or other IEC/ISO Standards applicable to the
equipments.
2 When this unit is used together with other equipment
in the patient area*, the equipment shall be either
powered by an isolation transformer or connected via
an additional protective earth terminal to system
ground unless it is certified according to Standard
IEC601-1 and IEC601-1-1.
* Patient Area
3 The leakage current could increase when connected
to other equipment.
4 The operator should take precautions to avoid
touching the rear panel input and output circuitry and
the patient at the same time.
5 Model PVM-14L2MD/PVM-20L2MD is a video
monitor intended for use in a medical environment to
display video pictures from cameras or other video
system. These models are nonpatient care equipment
with respect to the requirement of leakage current.

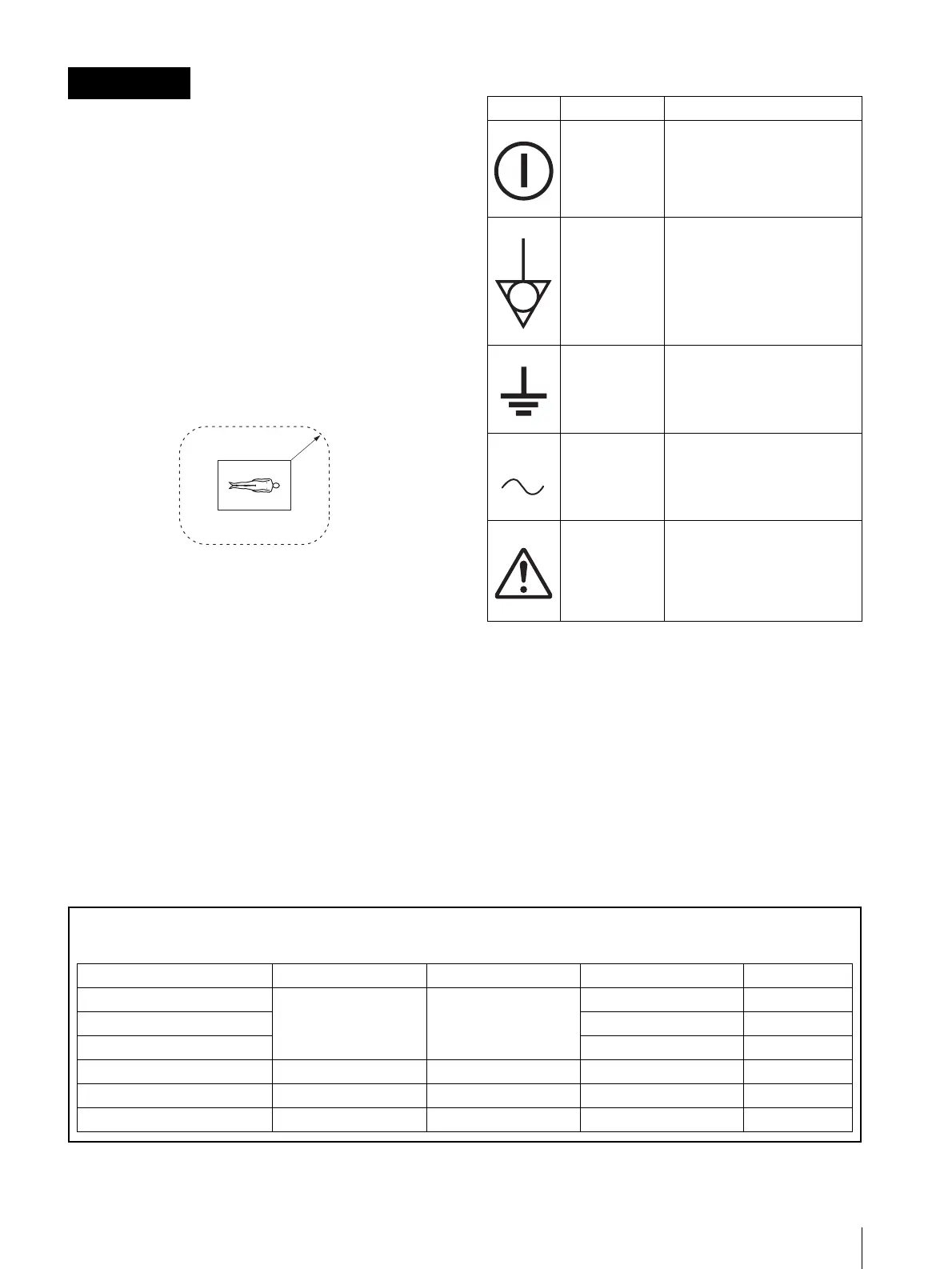

Symbols on the unit
WARNING
R1.5m
Symbol Location This symbol indicates
Front panel Main power switch. Press to turn
the monitor on or off.
Rear panel The equipotential terminal
which brings the various parts of
a system to the same potential.
Rear panel Functional earth terminal
Rear panel Alternating current
Rear panel Attention, consult
ACCOMPANYING
DOCUMENTS
Warning on power connection
Use a proper power cord for your local power supply.
United State Canada Continental Europe Japan
Plug type HOSPITAL GRADE HOSPITAL GRADE LP-34A VM1050
Female end E41395 LL33182 LS-60 VM1010
Cord type E41395-A LL76662 H05VV-F PVCTF
Minimum cord set rating 10A/125V 10A/125V 10A/250V 12A/125V
Cord length Max. 4.5 m (177
1
/
4
in.) Max. 4.5 m (177
1
/
4
in.) – –
Safety approval UL CSA VDE DENAN-HO
