Specifications
31
Video signal
Frequency response
50 Hz to 10 MHz (0 dB/–3 dB)
Aperture compensation
1)
OFF: 0 dB
ON: 2 dB to 6 dB
Picture performance
Normal scan 7% overscan of CRT effective screen
area
Underscan 5% underscan of CRT effective screen
area
Overscan 20% overscan of CRT effective screen
area
Linearity PVM-14L2MD
H: 4% or less
V: 4% or less
PVM-20L2MD
H: 5% or less
V: 5% or less
Color temperature
D65, D56, D93, USER (Adjustable
color temperature: 5000 K to 10000
K)
Convergence error
PVM-14L2MD
Center: 0.4 mm (1/32 inch) or less
Peripheral: 0.5 mm (1/32 inch) or
less
PVM-20L2MD
Center: 0.5 mm (1/32 inch) or less
Peripheral: 0.7 mm (1/32 inch) or
less
Raster size stability
H: 1.0%
V: 1.0%
Resolution (at screen center)
600 TV lines
Operating conditions
Temperature 0 °C to 40 °C (32 °F to 104 °F)
Humidity 30% to 85% (no condensation)
Pressure 700 hPa to 1060 hPa
Storage and transport conditions
Temperature –10 °C to 40 °C (14 °F to 104 °F)
Humidity 0% to 90%
Pressure 700 hPa to 1060 hPa
Accessories supplied
AC power cord (1)
AC plug holder (1)
Operating Instructions (1)
The PVM-14L2MD/PVM-20L2MD is a Trinitron color
video monitor for professional use.
Classification of equipment
Evaluated to EN60601-1, EN60601-1-2, UL2601-1
(Second Edition), CSA601.1, 89/336/EEC, 73/23/
EEC, 93/42/EEC
EQUIPMENT not suitable for use in the presence of a
FLAMMABLE ANAESTHETIC MIXTURE WITH
AIR or WITH OXYGEN OF NITROUS OXIDE
Design and specifications are subject to change without
notice.

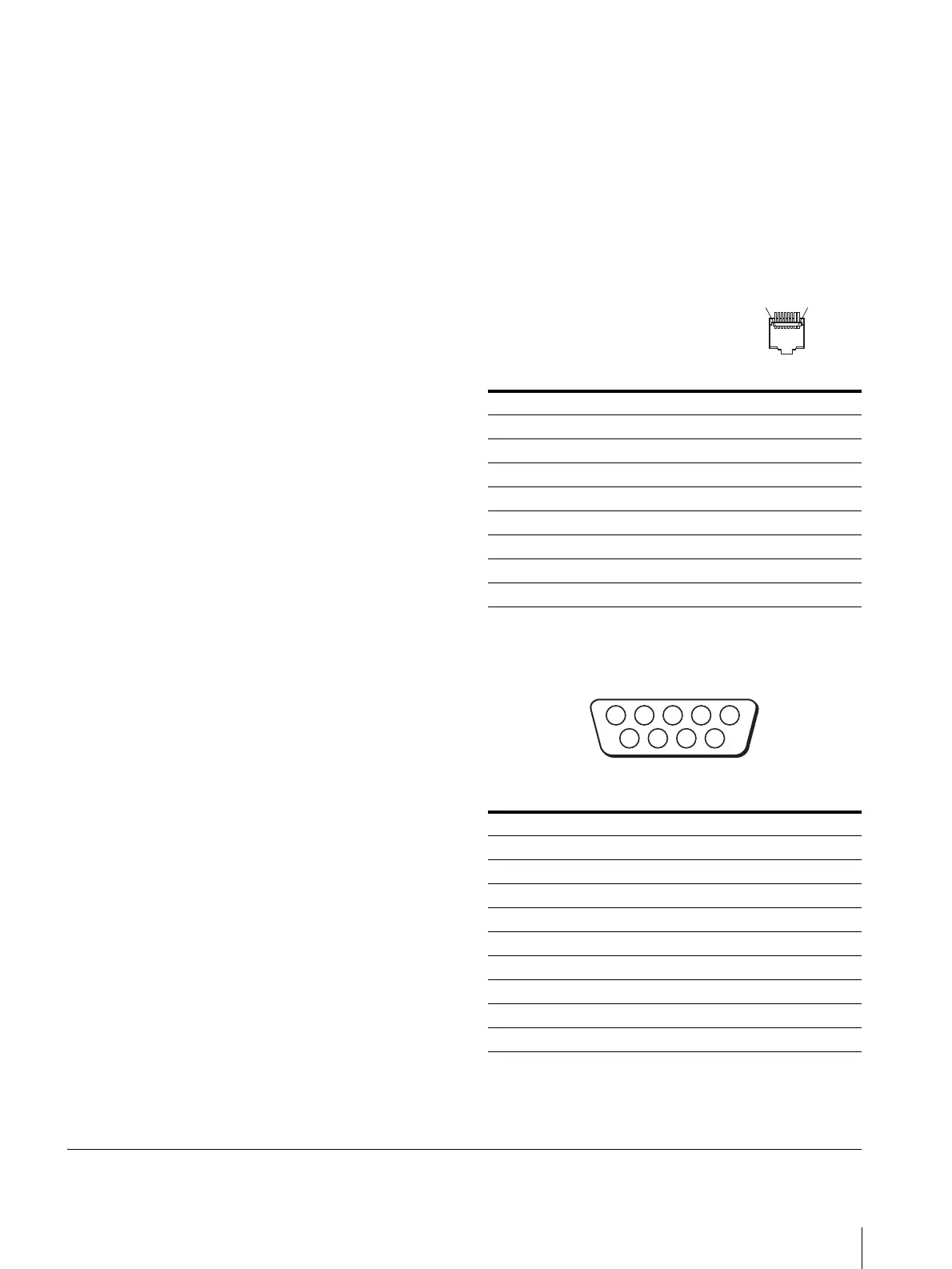

Pin assignment
PARALLEL REMOTE
terminal Modular
connector (8-pin)
You can allocate functions using the REMOTE menu.
RS-232C (D-sub 9-pin) connector
Wiring required to use the Remote Control
Connect the function you want to use with a Remote
Control to the Ground (Pin 5).
1) The aperture cannot be compensated for RGB input signals.
Pin number Functions
1 Set input signal LINE A
2 Set input signal LINE B
3 Set input signal RGB/COMP
4 Set input signal OPTION 1
5 GND
6 Set tally lamp on or off
7 Select underscan
8 Select overscan
Pin number Functions
1 NC
2 RX
3 TX
4 NC
5 GND
6 NC
7 RTS
8 CTS
9NC
1
8
12345
678
9
