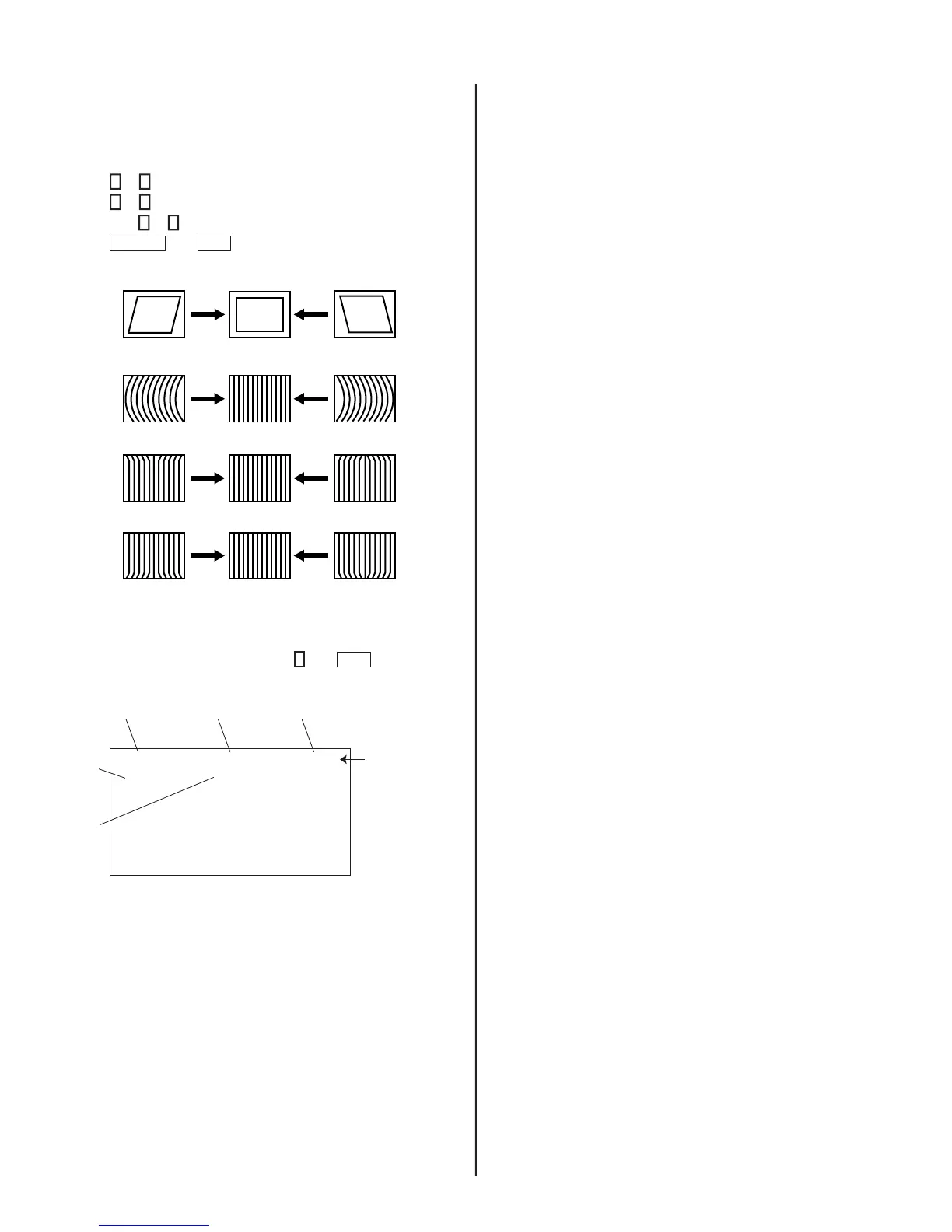

V. Angle (VANG), V. Bow (VBOW), Upper PIN
(UPIN) and Low PIN (LPIN) Adjustments
1. Input a crosshatch signal.
2. Access the Service Adjustment Mode.
3. Press
2
or
5
to select the DEF Category.
4. Press
1
or
4
to select VBOW, VANG, UPIN, or LPIN.
5. Adjust with
3
or
6
for the best picture.
6. Press
MUTING
then
ENT
to write into the memory.
V ANGLE (VANG)
V BOW (VBOW)
UPPER PIN (UPIN)
LOW PIN (LPIN)
Reading Service Adjustment Mode Memory
1. Access Service Adjustment Mode.
2. After completing all adjustments, press
0
then
ENT
.
Read From Memory
Category
Display
Item
Display
Data
Signal
Type
Channel
Type
Text changes
to “READ”
and changes
from green to red
NTSC READDEF
M655E2AMF-107FP
S 3.OD
HSIZ 1 : 51
