24 Additional Information
Sony KV-HW21N63 Group A12 (GB)_4-094-461-11 (1)
DVD player
TV rear panel
Component video
cable
(not supplied)
Audio cable
(not supplied)
VIDEO
VIDEO 1 IN VIDEO 3 IN
MONITOR OUT
(MONO)
(MONO)
AUDIO
AUDIO
L
R
R
L
Y
C
B
C
R
VIDEO
Connect To (on the DVD player)
Y (green) Y
CB (blue) CB, PB, Cb or B-Y
CR (red) CR, PR, Cr or R-Y

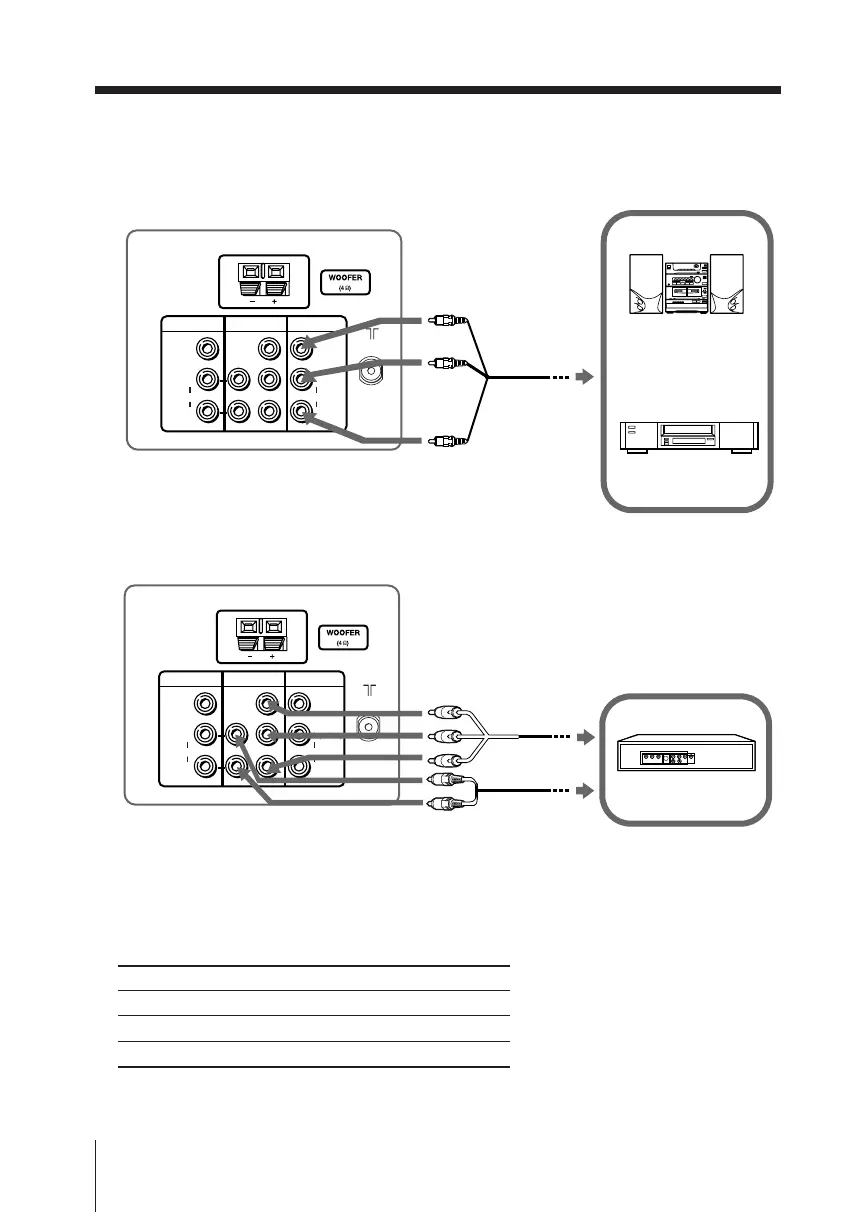

Connecting to VIDEO 3 IN terminal
Notes
• If your DVD player can output interlace and progressive mode signals, select the interlace
output when connecting to VIDEO 3 IN on your TV. Your TV can receive either 525i/60Hz or
625i/50Hz interlace signals.
• Some DVD player terminals may be labeled differently:
• If you select “Video 3” on your TV screen, the signal from the MONITOR OUT will not be
output properly. This does not indicate a malfunction.
TV rear panel
Audio system
VIDEO
VIDEO 1 IN VIDEO 3 IN
MONITOR OUT
(MONO)
(MONO)
AUDIO
AUDIO
L
R
R
L
Y
C
B
C
R
VIDEO
VCR
Audio/Video
cable
(not supplied)
Connecting to MONITOR OUT terminal
continued
