Additional Information
Sony KV-HW21N63 Group A12 (GB)_4-094-461-11 (1)

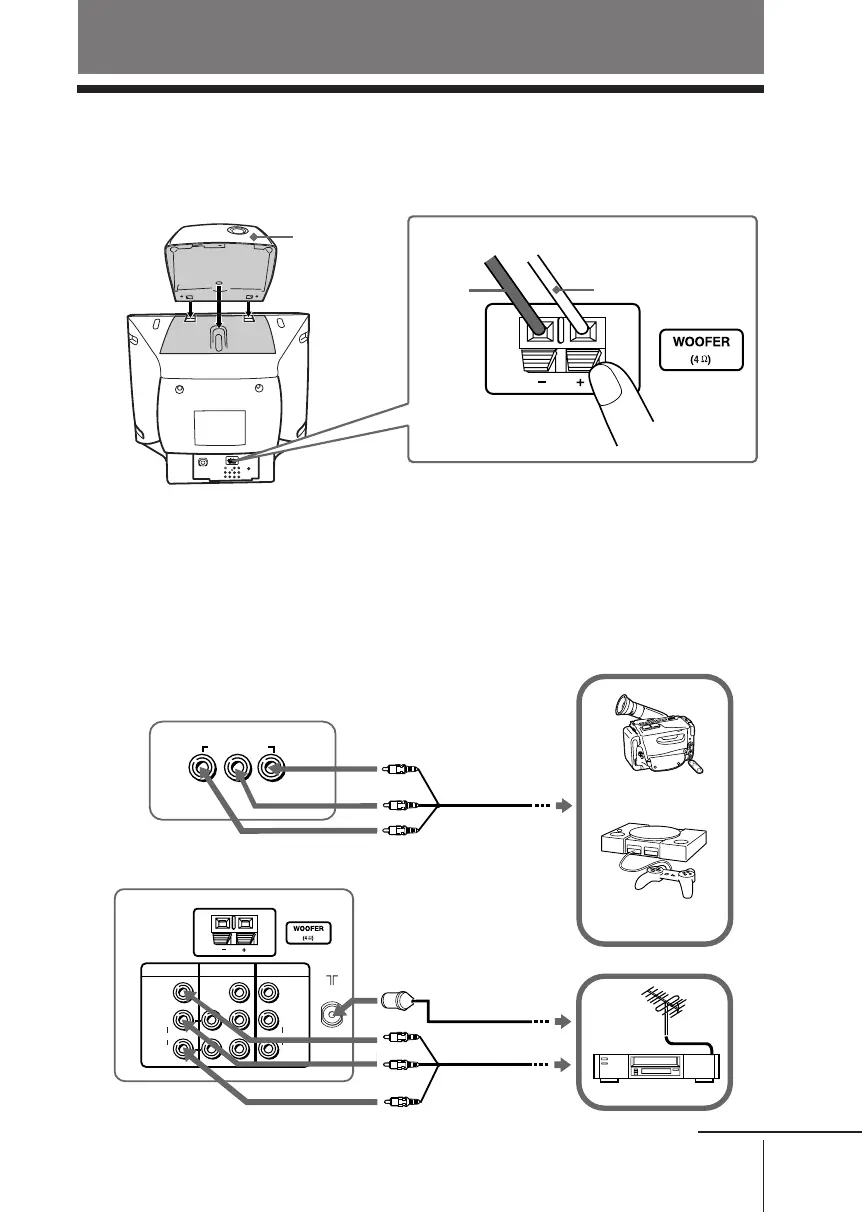

x Connecting optional components
Connecting to VIDEO 2 INPUT and VIDEO 1 IN terminals
Additional Information
TV front panel
Video game
equipment
VIDEOVIDEO
VIDEO 1 IN VIDEO 3 IN
MONITOR OUT
(MONO)
(MONO)
AUDIO
AUDIO
L
R
R
L
Y
C
B
C
R
VIDEO 2 INPUT
VIDEO
R
AUDIO
L
(MONO)
Audio/Video cable
(not supplied)
Antenna cable
(not supplied)
VCR
TV rear panel
Audio/Video cable
(not supplied)
Camcorder
x Connecting the 3D WOOFER
B KV-HW21N63 only
You can enjoy high quality sound by connecting the 3D WOOFER as follows:
Notes
• Connect only the supplied 3D WOOFER; otherwise your TV may malfunction.
• Unplug your TV from the wall outlet when connecting the 3D WOOFER.
• To prevent a malfunction caused by a short circuit of the terminals, make sure that none of the 3D
WOOFER wire strands stick out, making contact with the neighbouring 3D WOOFER terminal.
Black
wire
Red wire
Step 1
Step 2
3D WOOFER
continue
