Connecting the Projector
• When installing the cables, use a cable tester, cable analyzer, or similar device to check if the
cables meet the CAT5e or higher requirement. If there is a transit connector between this unit and
the HDBaseT transmitter, include it when measuring.
• To reduce the affect of noise, install and use the cable in a manner where it is not rolled up and it
is as straight as possible.
• Install the cable away from the other cables (especially the power cable).
• When installing multiple cables, do not bind them and keep the running parallel distance as short
as possible.
• The transmittable distance of the cable is 100 m (approx. 328 feet) maximum. If it exceeds 100 m
(approx. 328 feet), it may cause the image or the sound to break up, or cause a multifunction in
LAN communication. Do not use the HDBaseT transmitter beyond the transmittable distance.
• Inquire about operation or function problems caused by other manufacturer's devices with the
relevant manufacturer.
Connecting to the network equipment
• HDBaseT is available only on VPL-EW348.
• If you are using a network, make sure “HDBaseT/LAN terminal” is set to “HDBaseT” (page 31).
• Connect this unit and the HDBaseT transmitter without a hub or router between them.

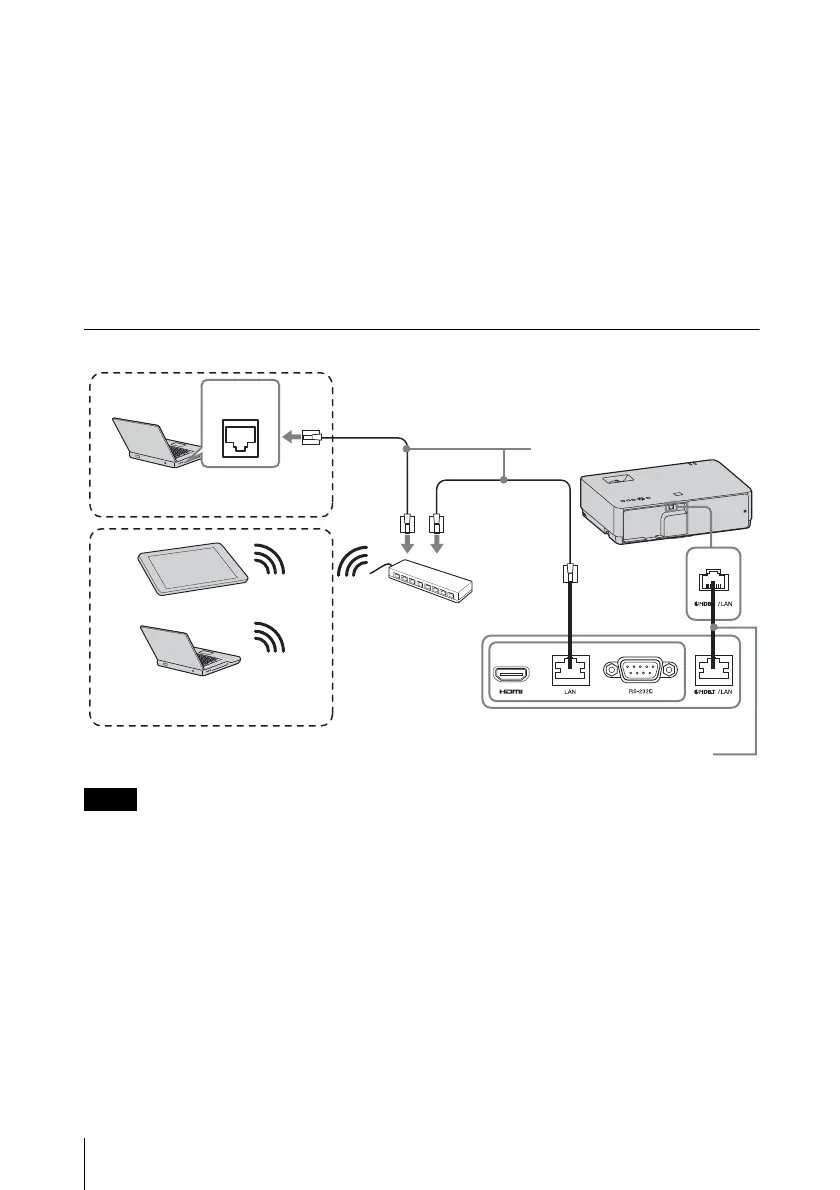

Computer
LAN
connector
Wired connection
LAN cable (straight type)
(not supplied)
Hub, Wireless router
HDBaseT transmitter (not supplied)
Tablet PC/Smartphone
Computer
Wireless connection
LAN cable: STP type (CAT5e or
higher, straight, not supplied)
Notes
To Next Page
