Sony VPL-EW348 - Overview; Location and Function of Controls; Main Unit

4

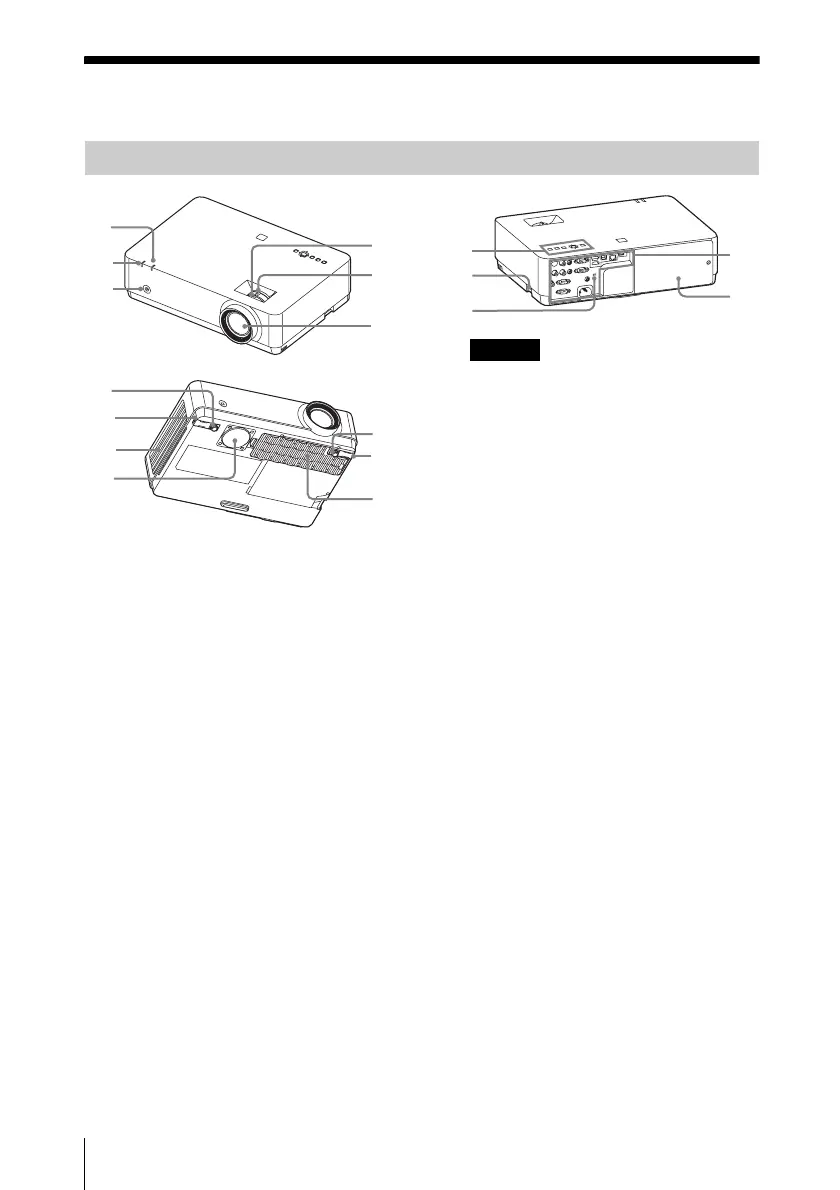

Location and Function of Controls
B Overview
Location and Function of Controls
a Focus ring (page 17)
b Zoom ring (page 17)
c Lens
d Remote Control Receiver
e ON/STANDBY indicator
(page 60)
f WARNING indicator (page 60)
g Front feet (adjustable) (page 18)
h Foot adjust button (page 18)
i Air filter cover/Ventilation holes
(intake) (page 68)
j Ventilation holes (exhaust)
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
k Speaker (VPL-EW348/EW345/
EW315/EX345/EX315 only)
l Terminal (page 5)
m Lamp cover (page 66)
n Security lock
Connects to an optional security cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
o Security bar
Connects to a commercially available
security chain or wire.
p Control panel keys (page 7)
Main Unit
5
4
3
2
1
6
8
7
9
qa
7
8
0
Caution
qh
qs
qd
q
f
qg
