Sony VPL-EW348 - Page 74

74
Specifications

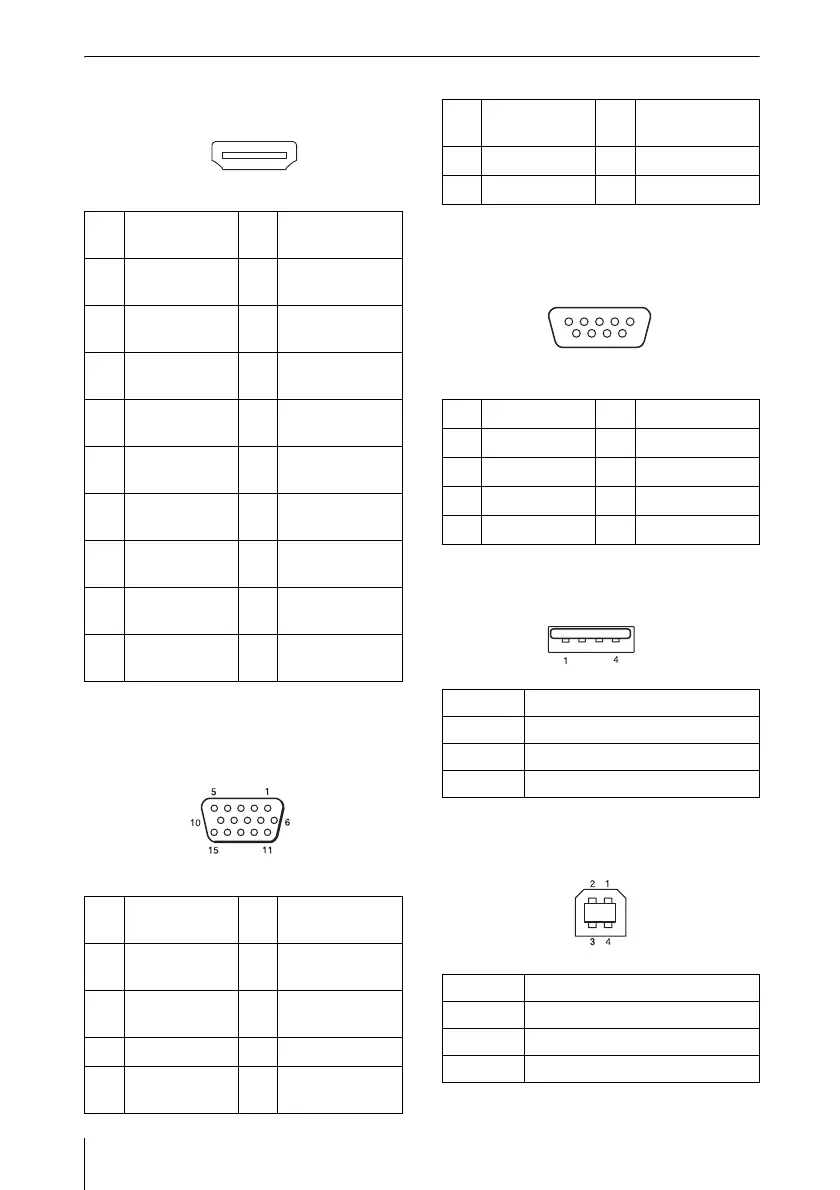

Pin assignment
HDMI terminal (HDMI, female)
RGB input terminal (Mini D-sub
15-pin, female)
RS-232C terminal (D-Sub 9-pin, male)
USB terminal (Type A, female)
USB terminal (Type B, female)
1 T.M.D.S.
Data2+
11 T.M.D.S.
Clock Shield
2 T.M.D.S.
Data2 Shield
12 T.M.D.S.
Clock –
3 T.M.D.S.
Data2 –
13 N.C.
4 T.M.D.S.
Data1+
14 RESERVED
(N.C.)
5 T.M.D.S.
Data1 Shield
15 SCL
6 T.M.D.S.
Data1 –
16 SDA
7 T.M.D.S.
Data0+
17 DDC GND
8 T.M.D.S.
Data0 Shield
18 +5V Power
9 T.M.D.S.
Data0 –
19 Hot Plug
Detect
10 T.M.D.S.
Clock+
1 Video input
(red) R
9Power supply
input for DDC
2 Video input
(green) G
10 GND
3 Video input
(blue) B
11 GND
4 GND 12 DDC/SDA
5 RESERVE 13 Horizontal sync
signal
1
2
19
18
6 GND (R) 14 Vertical sync
signal
7 GND (G) 15 DDC/SCL
8 GND (B)
1NC 6NC
2RXDA 7RTS
3TXDA 8CTS
4DTR 9NC
5 GND
1V
BUS
(4.4 - 5.25 V)
2Data–
3Data+
4Ground
1VCC (+5 V)
2Data–
3Data+
4Ground
51
9
6
