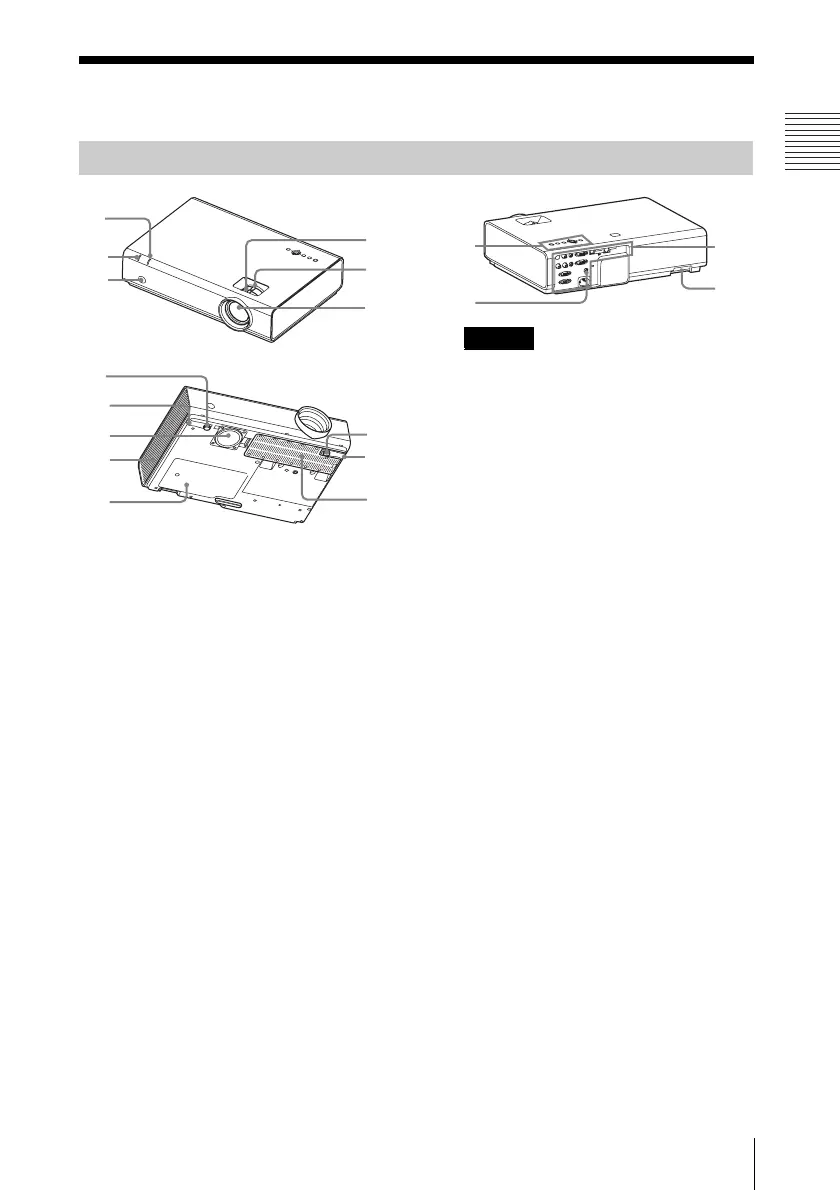

Location and Function of Controls
Overview
B Overview
Location and Function of Controls
a Focus ring (page 22)
b Zoom ring (page 22)
c Lens
d Remote control detector
e ON/STANDBY indicator
(page 50)
f LAMP/COVER indicator
(page 50)
g Front feet (adjustable) (page 23)
h Foot adjust button (page 23)
i Air filter cover/Ventilation holes
(intake) (page 56)
j Lamp cover (page 54)
k Ventilation holes (exhaust)
Do not place anything near the ventilation
holes as this may cause internal heat
buildup. Do not place your hand near the
ventilation holes and the circumference as
this may cause injury.
l Speaker (VPL-EW275/EW245/
EW225/EX275/EX245/EX225
only)
m Connector panel (page 12)
n Security bar
Connects to a commercially available
security chain or wire.
o Security lock
Connects to an optional security cable
manufactured by Kensington.
For details, visit Kensington’s web site.
http://www.kensington.com/
p Control panel keys (page 13)
