Projection Distance

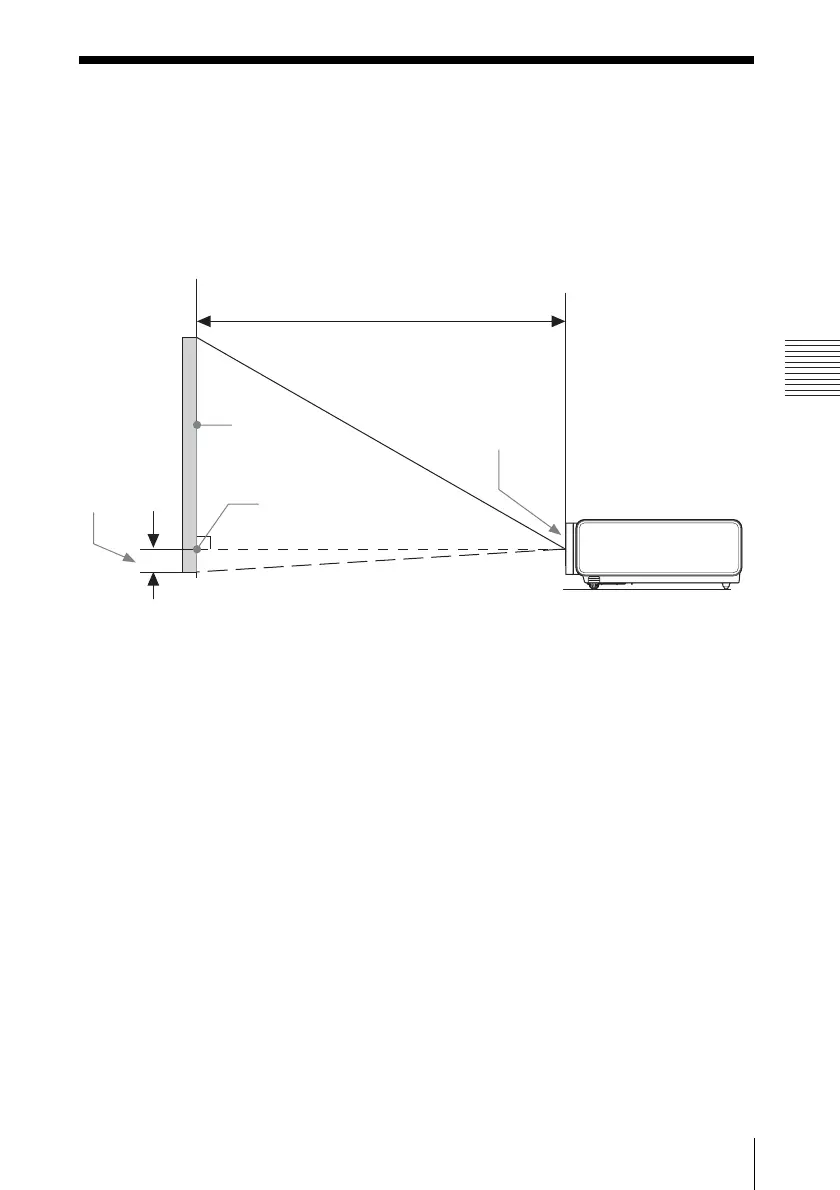

The projection distance is the distance between the front of the lens and the surface of the
projected image. The following describes the projection distance and height from the center of
the lens to edge of screen by each projected screen size. Height H is the height from the bottom
of the projected image (top for ceiling mount) to A (determined by drawing a perpendicular line
from the center of the lens to projected image surface).
Floor Installation
* The number will be minus when the bottom of the projected image is lower than A.
Projection distance L
Center of lens
Height H from
center of lens
to edge of
screen
Projected
A
