Sony VPL-EX281 - Connector Panel

12
Location and Function of Controls
VPL-EW275/EW245/EW225/EX275/EX245/EX225
VPL-EX281/EX271/EX241/EX221
Input (pages 16, 17)
a INPUT A
Video: RGB/YPBPR input connector
(RGB/YP
BPR)
Audio: Audio input connector (AUDIO)
b INPUT B
Video: RGB input connector (RGB)
Audio: Audio input connector (AUDIO)
c INPUT C
Video: HDMI input connector (HDMI)
Audio: HDMI input connector (HDMI)
d S VIDEO (S VIDEO IN)
Video: S video input connector (S
VIDEO IN)
Audio: Audio input connector (L
(MONO) AUDIO/R)
e VIDEO (VIDEO IN)
Video: Video input connector (VIDEO)
Audio: Audio input connector (L
(MONO) AUDIO/R)
• The audio inputs of S VIDEO and VIDEO
are shared.
• The audio input connector and audio output
from the HDMI connector are available only
on VPL-EW275/EW245/EW225/EX275/
EX245/EX225.
Output (page 20)
f OUTPUT
Video: Monitor output connector
(MONITOR)
Audio: Audio output connector
(AUDIO)

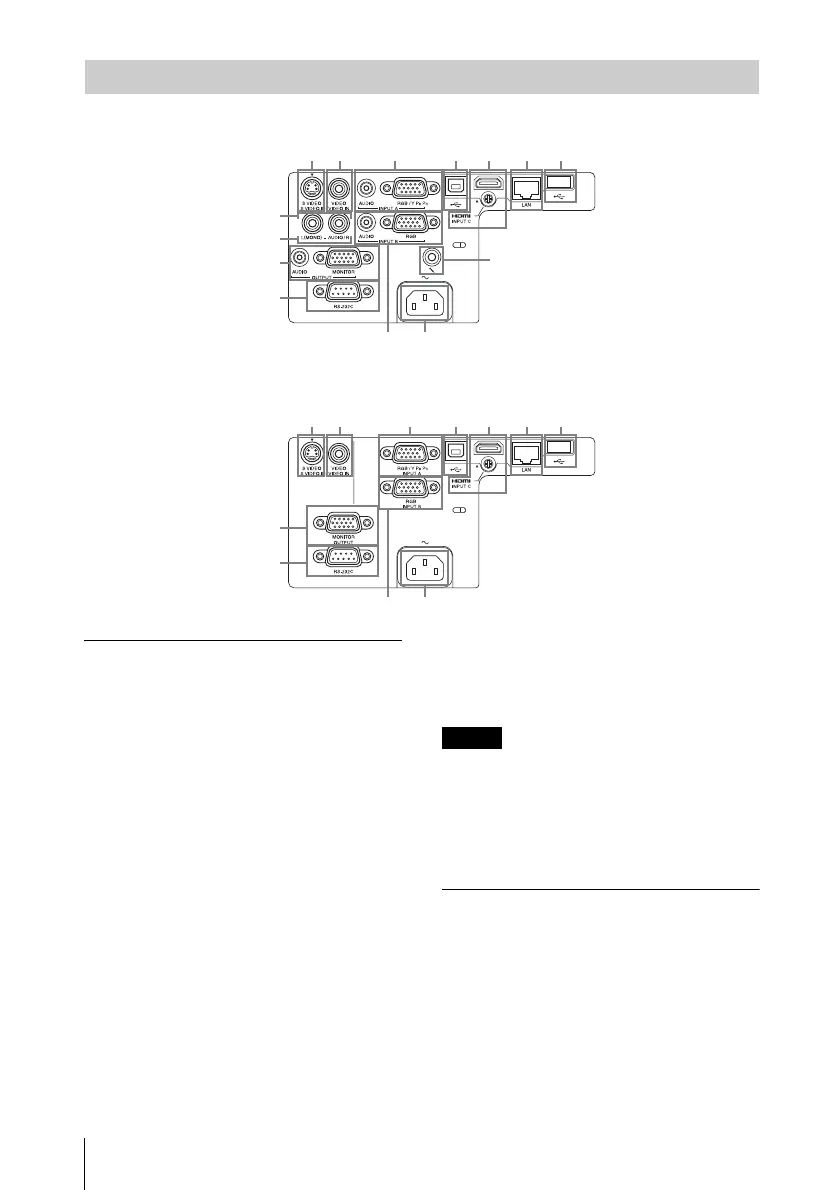

Connector Panel
54
4
5
7
6
1
29
8q;3
qs
qa
54
7
6
1
29
8q;3qa
Notes
