Location and Function of Controls
Overview
• This connector outputs the projected image
or audio only when INPUT A or INPUT B is
used.
• The audio output connector is available only
on VPL-EW275/EW245/EW225/EX275/
EX245/EX225.
Others
g RS-232C connector (RS-232C)
RS-232C compatible control connector.
Connects the computer’s RS-232C
connector and the RS-232C cross cables.
h LAN connector (page 38)
i AC IN (∼) socket
Connects the supplied AC power cord.
j USB connector (Type A) ( )
(pages 19, 46)
k USB connector (Type B) ( )
(page 45)
l Microphone input ( )
Microphone input is available only on VPL-
EW275/EW245/EW225/EX275/EX245/
EX225.

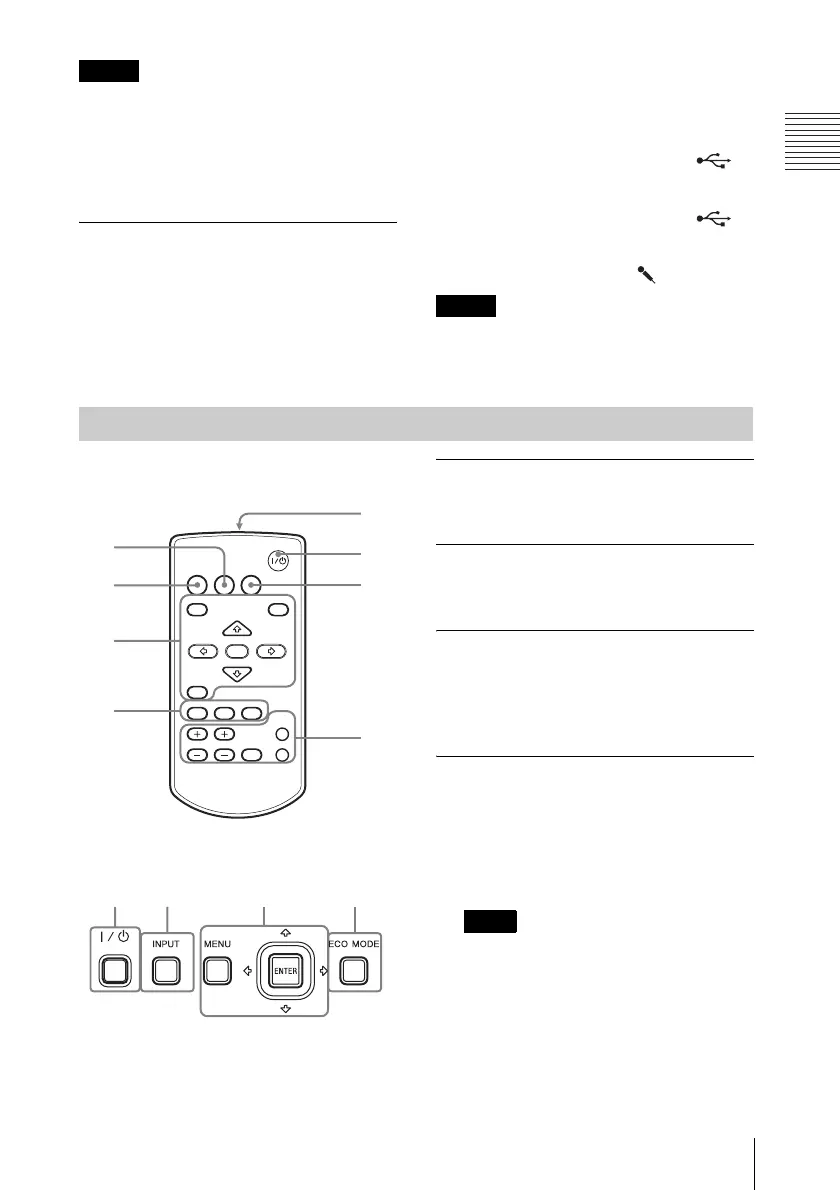

Remote Commander
Control Panel Keys
a Turning on the power/Going to
standby mode
?/1 (On/Standby) key
b Selecting an input signal
(page 21)
INPUT key
c Operating a menu (page 26)
MENU key
RESET key
ENTER /V/v/B/b (arrow) keys
RETURN key
d Adjusting the image (page 22)
ASPECT key (page 28)
KEYSTONE key (page 24)
PATTERN key (page 24)
APA (Auto Pixel Alignment) key
*
(page 24)
*
Use this key when inputting a computer
signal via the RGB input connector
(INPUT A or INPUT B).
Notes
Note
Remote Commander and Control Panel Keys
2
3
4
5
6
1
4
7
INPUT
MENU
APA ECO MODE
RETURN
ASPECT
D ZOOM
KEYSTONE
ENTER
VOLUME
PATTERN
FREEZE
BLANK
MUTING
RESET
