WM-FS421
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.

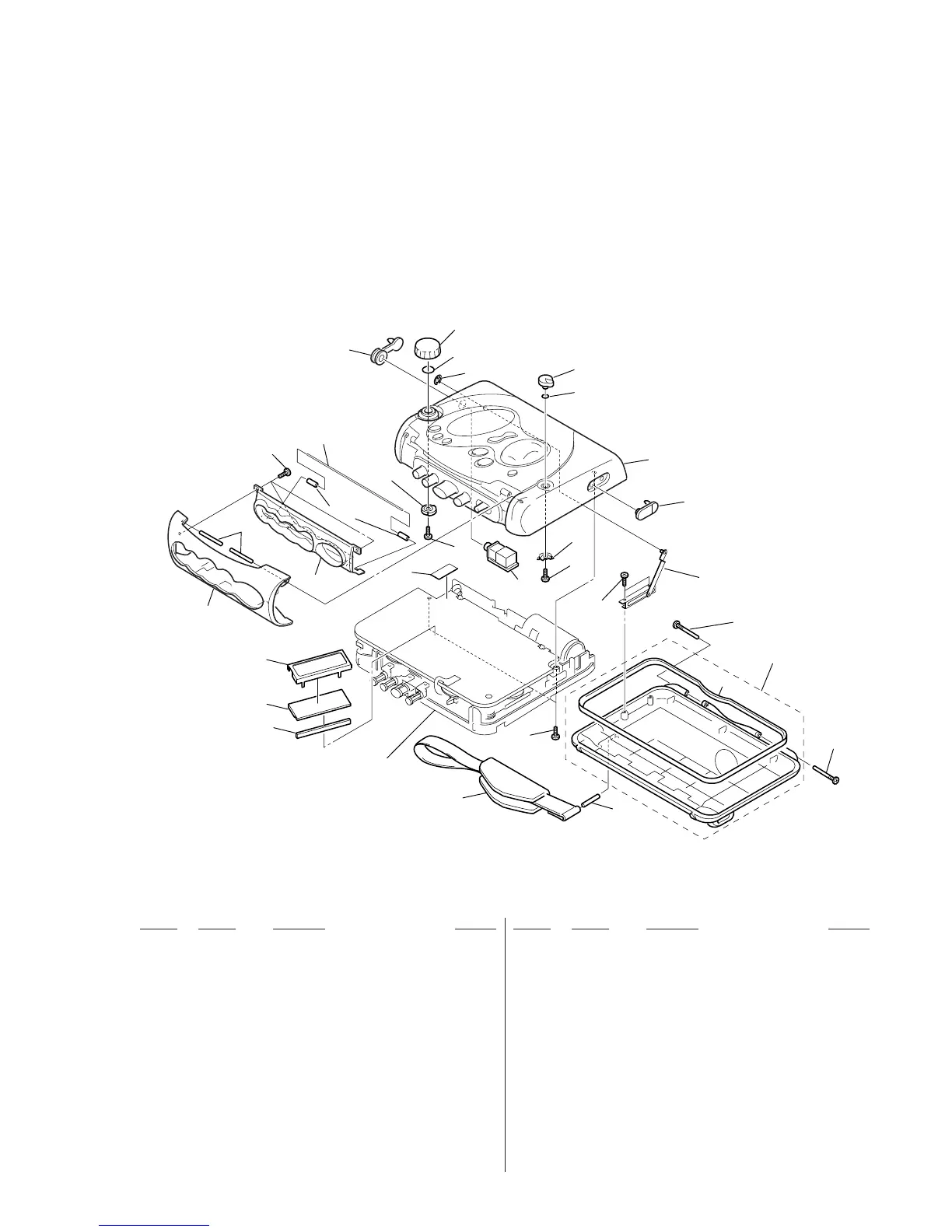

7-1. CABINET ASSY SECTION
19
ND701
22
2
21
4
5
23
20
8
7
9
11
15
13
13
12
10
17
24
14
21
25
26
@
not
supplied
@@@
not
supplied
@@@
4
1
3
6
18
16
MAIN BOARD
SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 3-224-944-01 BUCKLE
2 3-224-946-01 SHAFT (BUCKLE)
3 3-224-971-01 PLATE, LOCK
4 3-318-203-62 SCREW (B1.7X4), TAPPING
5 3-224-941-01 PACKING (MD.RVS)
6 3-224-945-01 SHAFT (ROLLER)
7 3-012-927-01 RING, O
8 3-224-937-01 KNOB (VOL)
9 3-224-938-01 KNOB (HOLD)
10 X-3380-327-1 CABINET (REAR) SUB ASSY
11 3-326-560-11 RING (DIA. 2.5XDIA. 4.5), O
12 3-018-075-01 SPACER
13 3-318-201-51 SCREW (B) (1.4X4), TAPPING
* 14 1-681-951-01 HEADPHONE BOARD
15 3-227-296-01 JOINT (HOLD)
16 7-624-101-04 STOP RING 1.2 (E TYPE)
17 3-922-447-01 PACKING, DC JACK
18 3-386-371-01 PACKING, HP JACK
19 7-626-311-81 SPRING-PIN 1.6X18
20 X-3369-989-1 ARM ASSY
21 3-386-373-01 SCREW, TAPPING
22 X-3380-329-1 CASSETTE SUB ASSY, LID
23 3-318-203-32 SCREW (B1.7), TAPPING
24 3-228-185-01 STRAP, HAND
25 3-224-947-01 HOLDER (LCD)
26 3-040-176-01 RUBBER, CONDUCTIVE
ND701 1-804-256-11 LIQUID CRYSTAL DISPLAY
