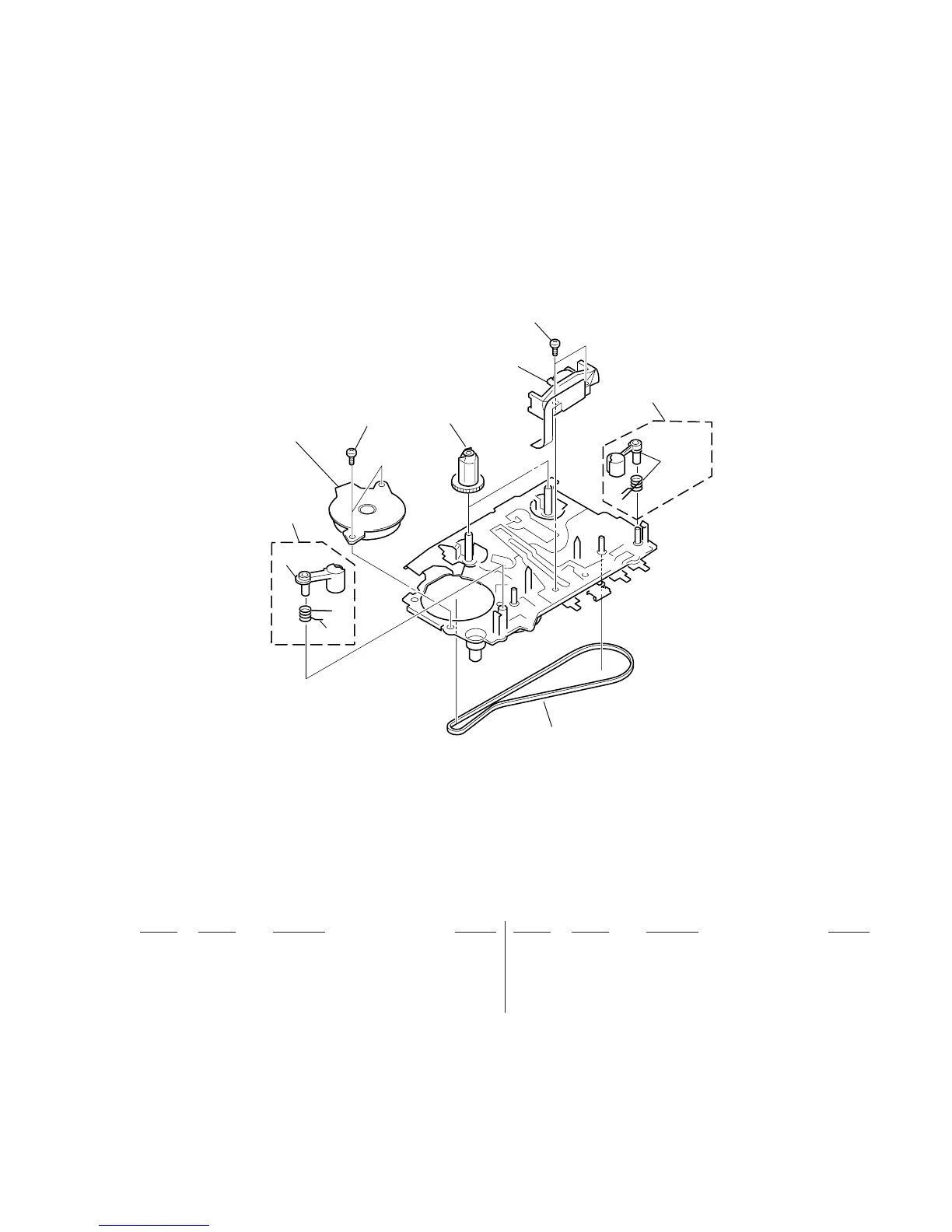

7-3. MECHANISM DECK SECTION-1
(MF-WMFS421-114)
206
205
207
203
202
204
201
M601
HP701
not
supplied
@@
@
not
supplied
@@@
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 3-938-657-01 BELT
202 3-920-997-01 SPRING (PINCH R)
203 X-3369-748-1 PINCH LEVER (R) ASSY
204 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
205 3-024-223-11 GEAR (REEL-2)
206 3-704-197-71 SCREW (M1.4)
207 X-3369-749-1 PINCH LEVER (N) ASSY
HP701 1-500-648-11 HEAD, MAGNETIC (PLAYBACK)
M601 1-763-683-11 MOTOR, DC(REEL/CAPSTAN)(WITH PULLEY)
