16
WM-FS421

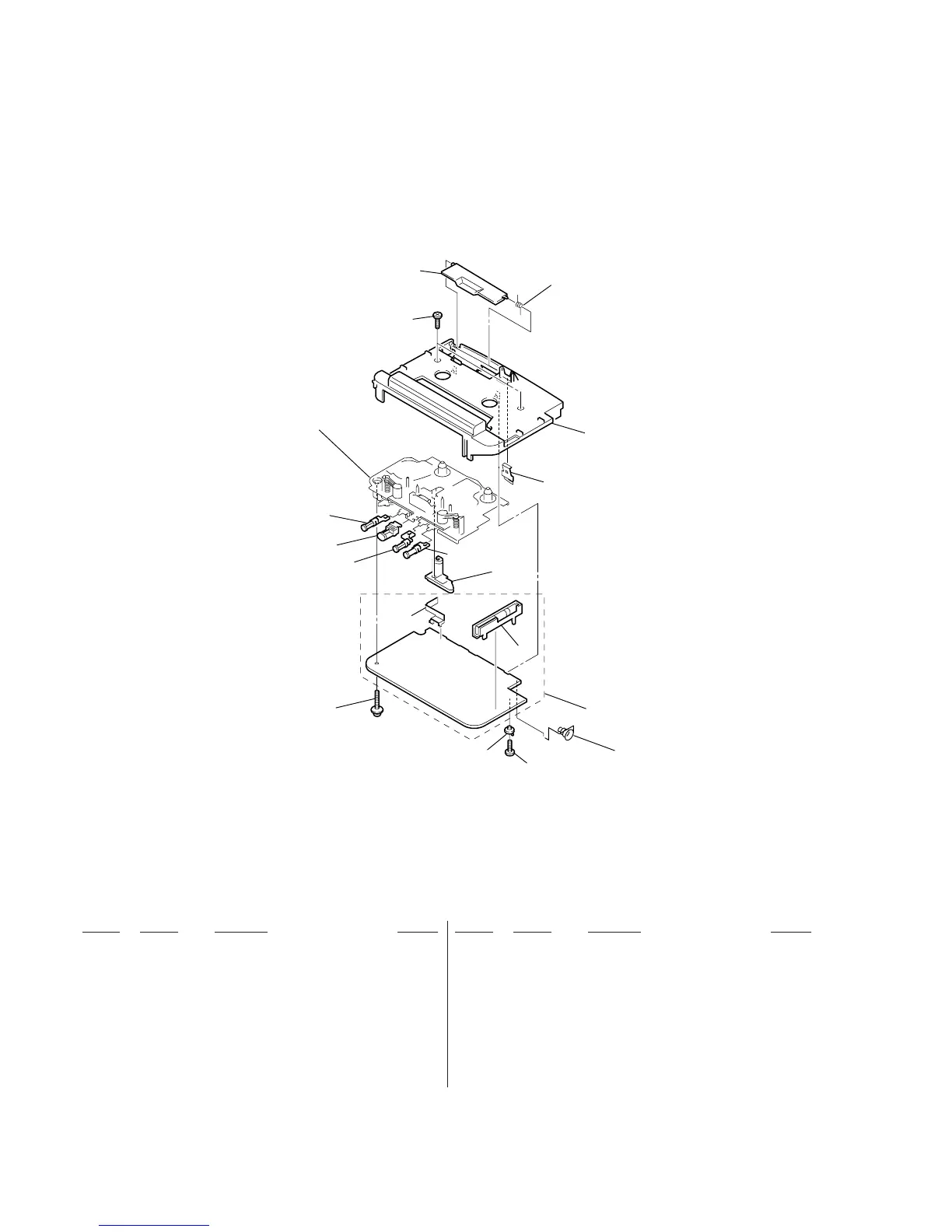

7-2. MAIN BOARD SECTION
L3
63
62
60
55
54
59
52
56
51
53
57
58
MF-WMFS421-114
64
67
65
66
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 3-227-295-01 LID, BATTERY CASE
52 3-231-465-01 SPRING, TORSION
53 3-318-203-32 SCREW (B1.7), TAPPING
54 3-227-301-01 SPRING (CASSETTE)
55 3-224-933-01 CHASSIS
56 3-227-300-01 BUTTON (REW)
57 3-227-297-01 BUTTON (PLAY)
58 3-227-299-01 BUTTON (FF)
59 3-227-298-01 BUTTON (STOP)
60 3-224-939-01 STOPPER (L2)
62 3-015-285-01 SCREW (M1.4),TOOTHED LOCK (WH)
* 63 A-3021-390-A MAIN BOARD, COMPLETE
64 3-221-310-01 LEVER (VOL) (B)
65 3-921-878-01 TERMINAL BOARD, BATTERY
66 3-224-948-01 TERMINAL (-), BATTERY
67 3-318-201-51 SCREW (B) (1.4X4), TAPPING
L3 1-754-166-11 ANTENNA, FERRITE-ROD
To Next Page
