4
WM-FS421
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
Note : Disassemble the unit in the order as shown below.

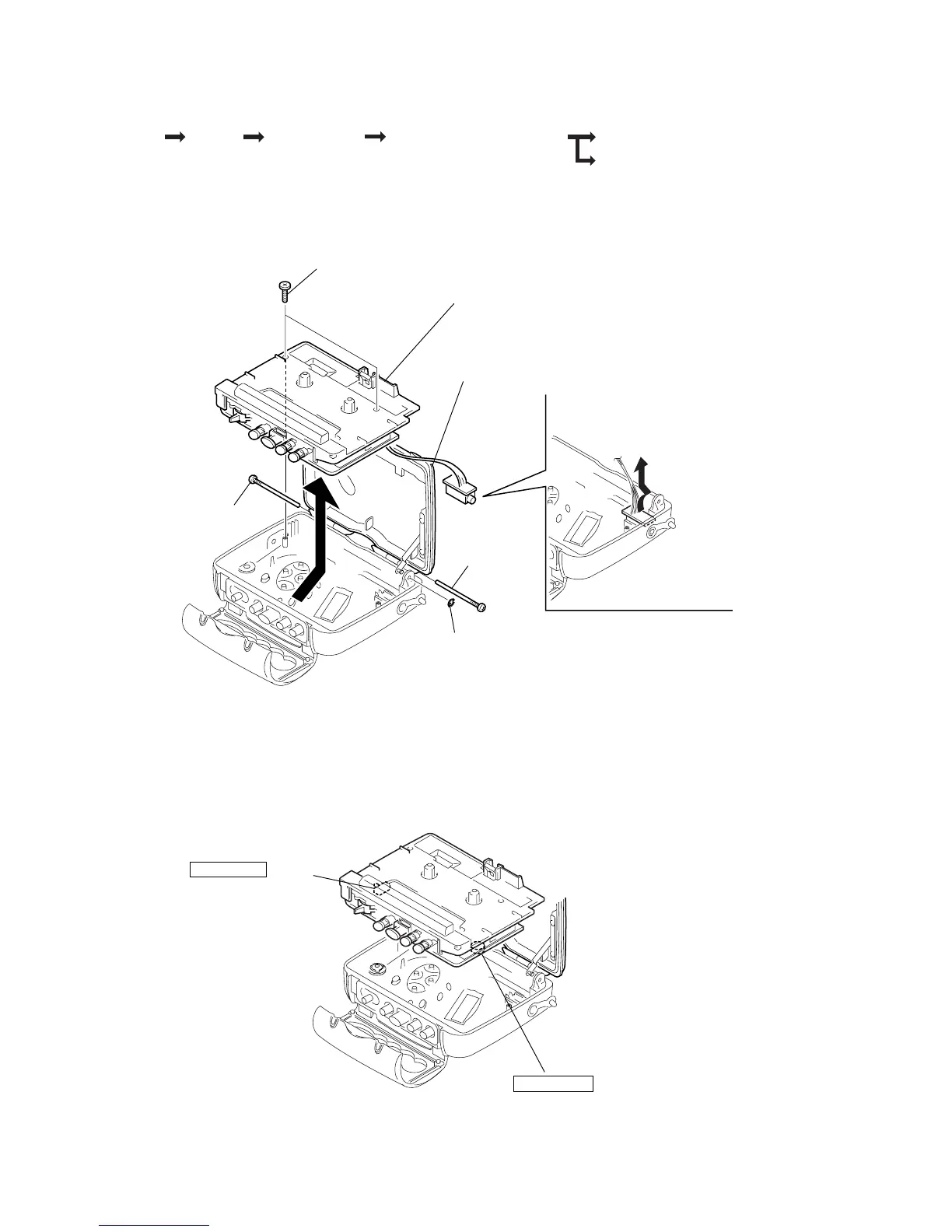

3-1. MAIN ASSY
CAUTION WHEN ASSEMBLING THE MAIN Assy
• Assemble the main Assy in a way that each switch mates with the corresponding knob each other.
Set
Main Assy
Chassis Sub Assy
MAIN Board and Mechanism Deck
Belt
Head, Magnetic (HP701
)
6 Remve the main assy in the direction of arrow.
(Be careful not to focibly pull the wire that connects
the main board and the headphone board.)
7 Remove the HEADPHONE
borad in the direction of arrow.
1 Stop ring (E 1.2)
5 Two screws (+B1.7 × 7)
3 Screw, tapping
2 Screw, tapping
4 Cassette sub assy, holder
HOLD • > (S701)
w VOLUME (RV301)
