Sorensen DCS Series 3kW Supplies Advanced Operation

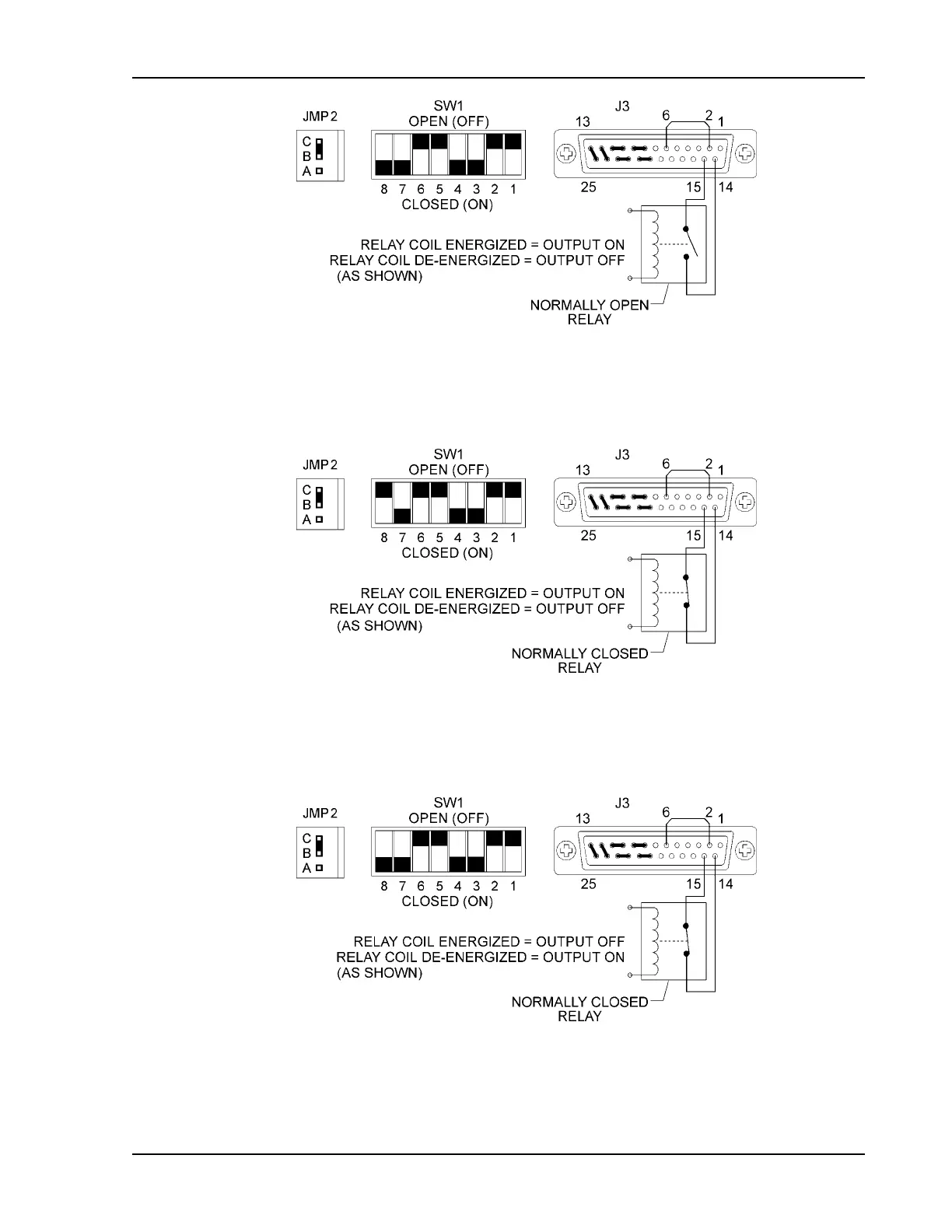

Figure 4-19 Using Shutdown with Contact Closure
of a Normally OPEN Relay (Negative Logic)
Figure 4-20 Using Shutdown with Contact Closure
of a Normally CLOSED Relay (Positive Logic)
Figure 4-21 Using Shutdown with Contact Closure
of a Normally CLOSED Relay (Negative Logic)
Operation Manual 4-19
