Soucy S-TECH 7016 - Page 37

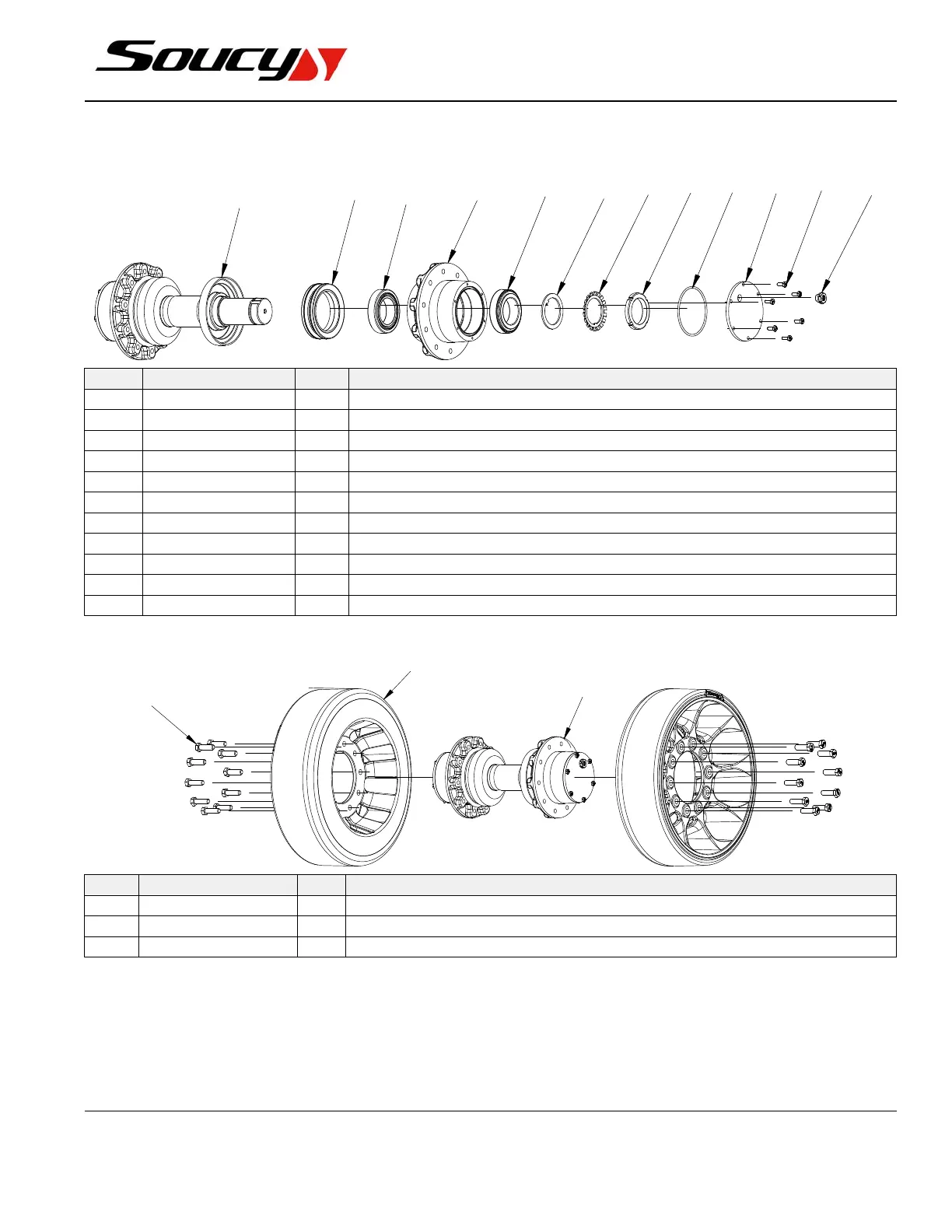

Figure6.12PARTLISTOFMID-ROLLERASSEMBLY(8034011-0060-1)
7
5
11
2
9
6
3
1
4
6
8
10
ITEM
PART#QTYDESCRIPTION
178034011-0030-12
S-TECH7016MIDROLLERSHUB
2
7S6485-00002-000
2
M16X1.5BRASSOILSIGHTPLUGWITHREFLECTOR
38034007-0050-12
HARDENEDWASHER
48034011-0020-11
SP-716MIDROLLERSAXLESHAFTASS'Y
5
8034011-0050-12
HUBCAP
6
B32011-XQ-SKF
4
TAPEREDROLLERBEARING55X90X23
7
S1131-06015-0D7
12
HEX.BOLTCL8.8ZnNiM6-1.0X15(DIN933)
8
S4214-M0550-000
2
KM-11LOCKNUTM55X2
9
S4531-M0550-000
2
MB11LOCKWASHERDIA.55MM
10
S6701-00043-000
2
O-RINGHNBRN12062-240
11
S6732-23001-000
2
HDDFC6VITONMECHANICALSEAL*
Figure6.13PARTLISTOFMID-ROLLERASSEMBLY(8034011-0100-1)
2
1
3
ITEM
PART#QTYDESCRIPTION
1
8034011-0060-1
1
SP-716MIDROLLERAXLE
28034011-0240-1217IN.WHEEL
3
S1111-12040-0D7
20
HEX.BOLTCL.8.8ZnNiM12-1.75X40(DIN931)
INSTALLATION,OPERATIONANDMAINTENANCEGUIDE
