New connectors are supplied with the amplifier.
Using the above information, an appropriate cable for your transceiver(s) may be
constructed.
Or you might order a cable specifically for your particular transceiver when you order
your amplifier from your local distributor
The transceiver connectors (called “Radio” in the next diagram) are usually supplied
with the transceiver.
For connections to the Radio connectors, please refer to the transceiver operating
manual.

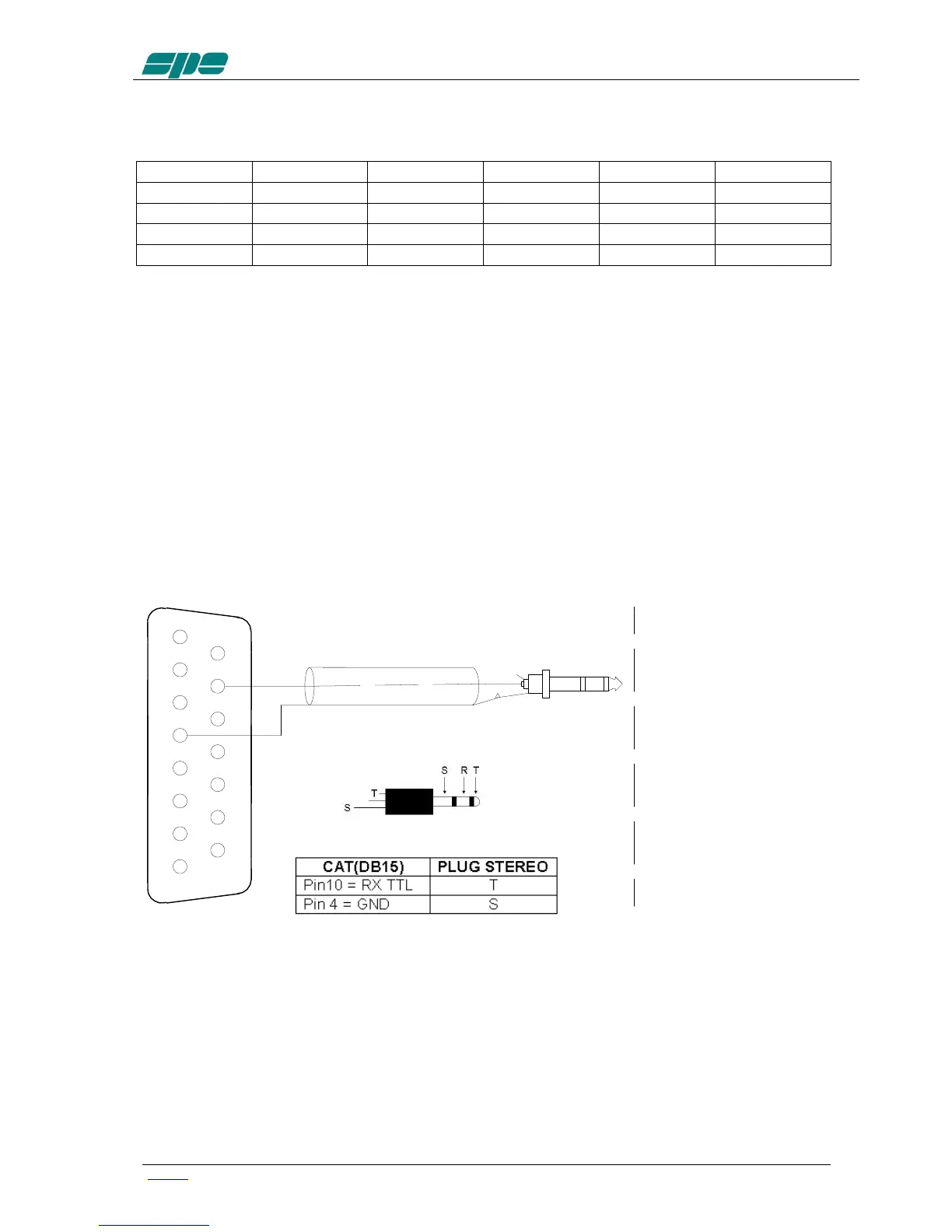

12.2 Icom
CAT CI–V Interface
This interface is standard for all the Icom models equipped with CAT.
The cable always terminates into a 3.5 mm. mono plug.
It is possible to use a stereo plug according to the above figure.
The plug is inserted into the "Remote" connector of the transceiver.
Set “CI-V Transceive ON” on its menu.
