SPE EXPERT 1.5K-FA - Kenwood; CAT RS232 Interface; CAT 5 V TTL Interface

User manual
Expert Amp 1.5K-FA
INDEX Page. 38 of 89

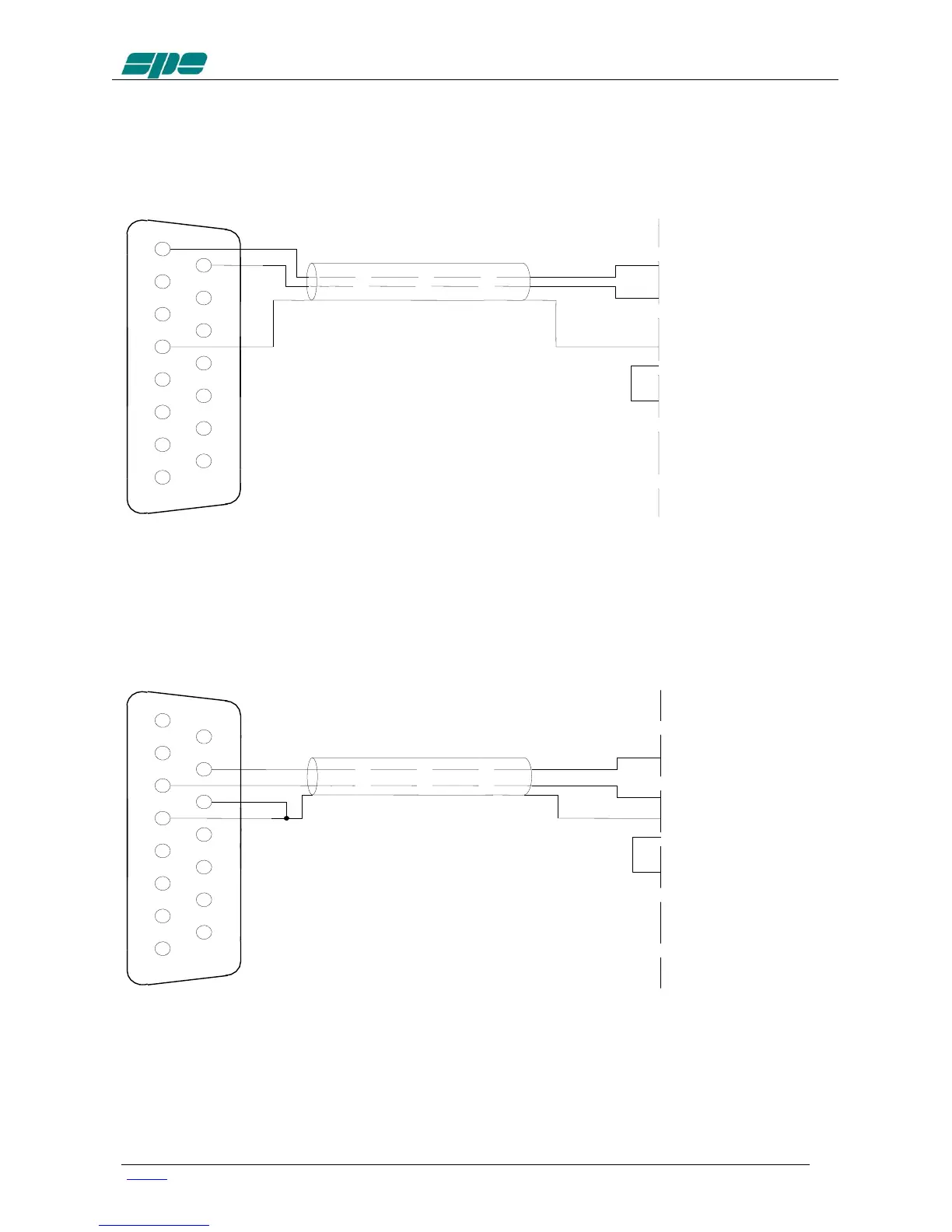

12.3 Kenwood
CAT RS232 Interface
The Radio connector could be DB-9 or DB-25 male connector or female connector
(read the specific manual). In the manual, also verify if the RTS–CTS link is necessary.
CAT 5V TTL Interface
The connector is described in the transceiver’s manual.
Verify if the RTS–CTS link is required by the transceiver.
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
RX
TX
DB15 M
RX TTL
TX TTL
KEN TTL
RTS
CTS
.
4
3
2
1
5
6
7
8
9
12
13
14
11
10
15
GND
GND
RADIO
CONNECTOR
DB15 M
RX 232
TX 232
RX 232
TX 232
.
RTS
CTS
(RXD)
(TXD)
