SPE EXPERT 1.5K-FA - Rear Panel Connections

User manual
Expert Amp 1.5K-FA
INDEX Page. 9 of 89

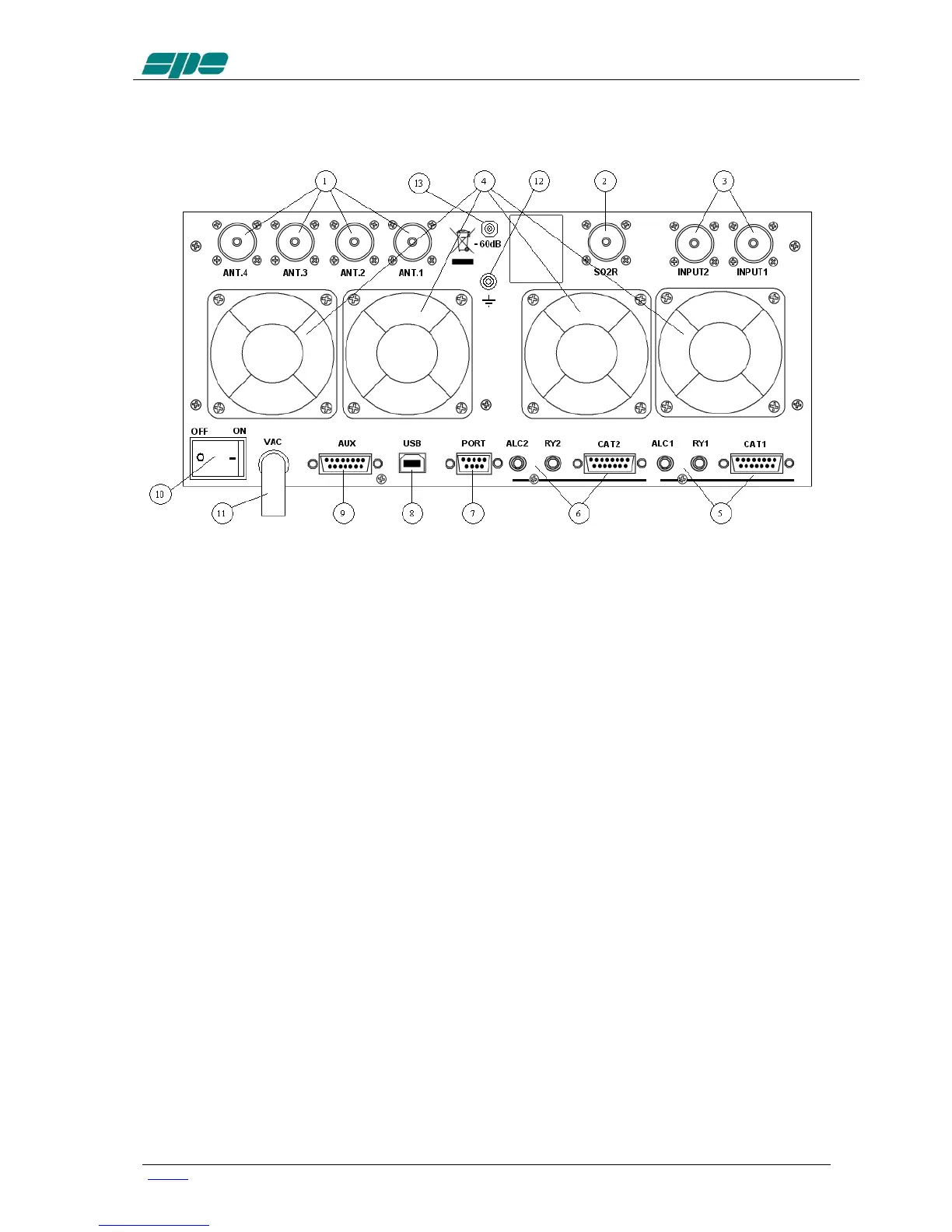

1.2 Rear Panel
1) ANT connectors for four available antennas.
2) SO2R connector for SO2R operations.
3) INPUT connectors to connect two exciters.
4) FANS
5) IN 1 ALC, RELAY, CAT connectors for exciter 1.
6) IN 2 ALC, RELAY, CAT connectors for exciter 2.
7) “PORT” connector.
8) “USB” connector.
9) “AUX” connector.
10) ON main switch.
11) AC mains power cable.
12) GND ground connection.
13) Pred. -60dB attenuated tap.
