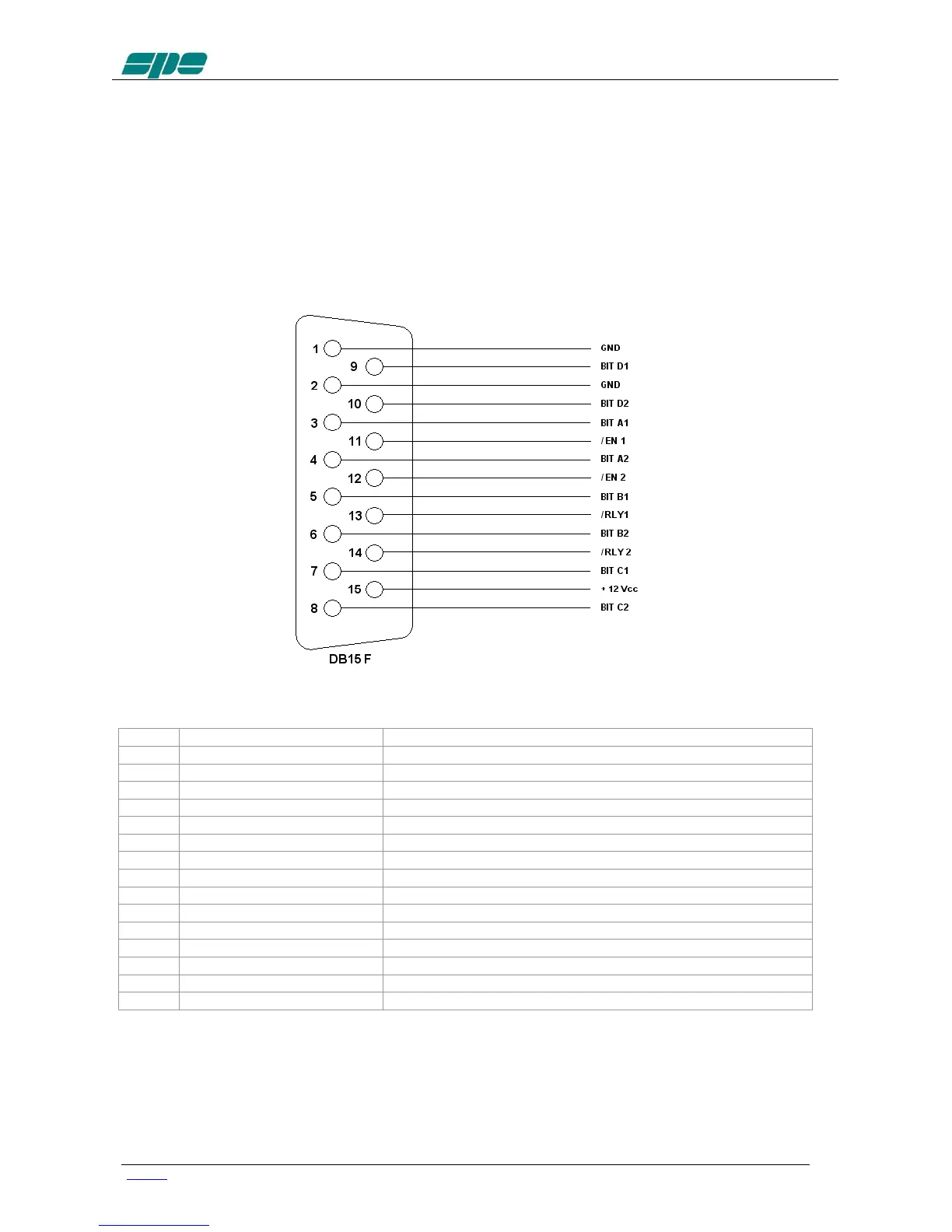

13.4 AUX Connector
This connector provides data about the bands currently being switched on both INPUTs,
indicating which input is connected to the antenna ANT 1/2/3/4 and which is connected
to the SO2R socket.
In this way you can know which one of the two transceivers is currently
connected to the switched output antenna and when it is in transmission etc.
Pin n.
Pin name
Description
3
BIT A1
BIT A INPUT 1 (as for BAND DATA)
5
BIT B1
BIT B INPUT 1 (as for BAND DATA)
7
BIT C1
BIT C INPUT 1 (as for BAND DATA)
9
BIT D1
BIT D INPUT 1 (as for BAND DATA)
11
/ EN 1
INPUT 1 0 = not connected with ANT, 1 = connected with ANT
13
/ RLY 1
INPUT 1 0 = TX state 1 = RX state
1
GND
GND
4
BIT A2
BIT A INPUT 2 (as for BAND DATA)
6
BIT B2
BIT B INPUT 2 (as for BAND DATA)
8
BIT C2
BIT C INPUT 2 (as for BAND DATA)
10
BIT D2
BIT D INPUT 2 (as for BAND DATA)
12
/ EN 2
INPUT 2 0 = not connected with ANT, 1 = connected with ANT
14
/ RLY 2
INPUT 2 0 = TX state 1 = RX state
2
GND
GND
15
+ 12 Vcc
OUT + 12 VDC 0.2 A max.
Each output is an open collector.
Note: WARNING, SPE is not responsible for any failure resulting from misuse of hardware
interfaces.
