SPE EXPERT 1.5K-FA - 13.5 PORT Connector; Steppir Cable

User manual
Expert Amp 1.5K-FA
INDEX Page. 47 of 89

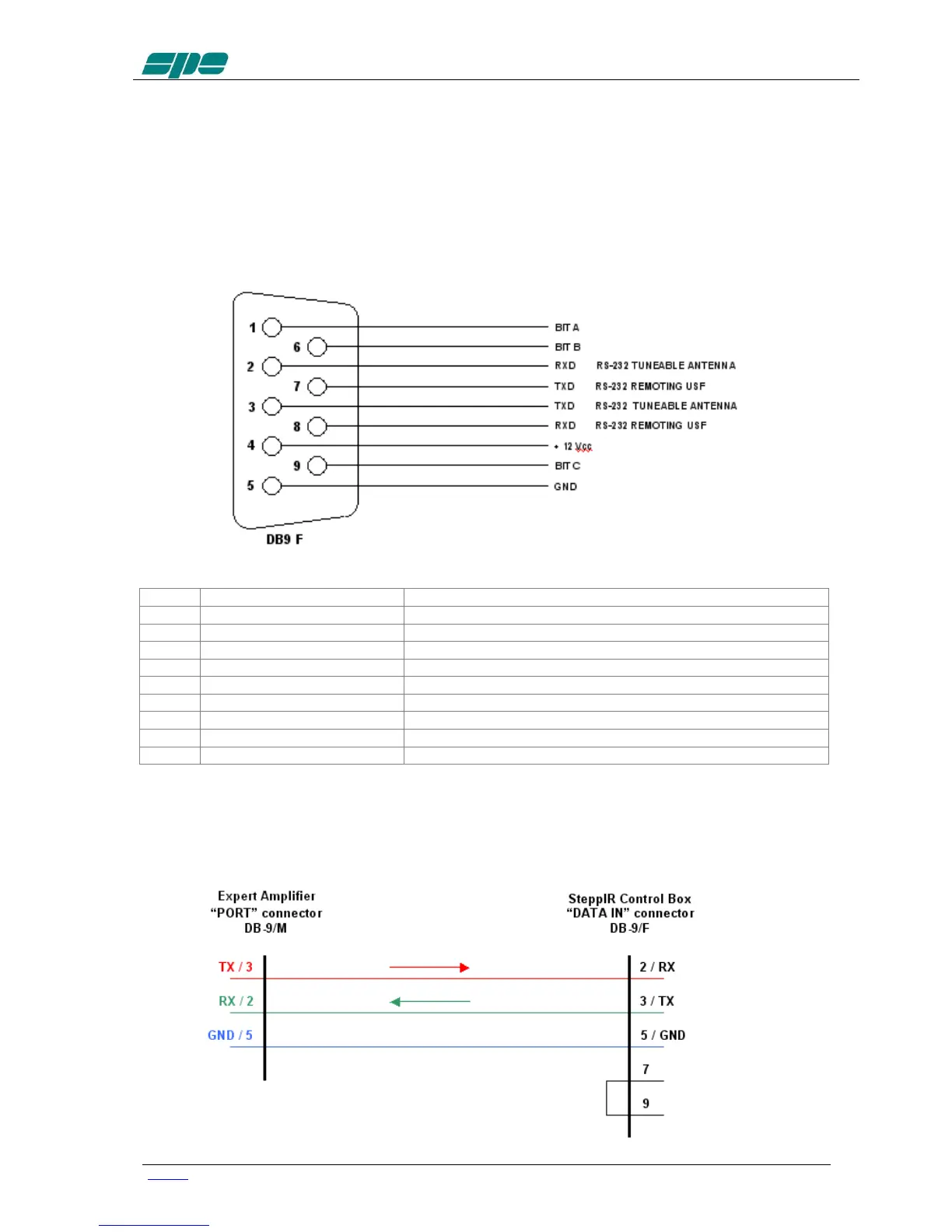

13.5 PORT Connector
This connector provides:
a) Data about the ANT port in use (each output is open collector).
b) RS 232 port for connection to a controller of a tunable antenna.
c) RS 232 port for remoting use (as an alternative of USB port).
Pin n.
Pin name
Description
1
BIT A
BIT A of the antenna number in use (see ANTENNA menu)
6
BIT B
BIT B of the antenna number in use (see ANTENNA menu)
9
BIT C
BIT C of the antenna number in use (see ANTENNA menu)
5
GND
GND
2
RXD
RS232 port Tunable Antenna
3
TXD
RS232 port Tunable Antenna
7
TX_232 (formerly RTS)
RS232 port Remote use
8
RX_232 (formerly CTS)
RS232 port Remote use
4
+ 12 VDC
+ 12 VDC 0.2 A max.
When connecting to a control box of a tunable antenna a suitable cable should be
wired.
SteppIR cable:
