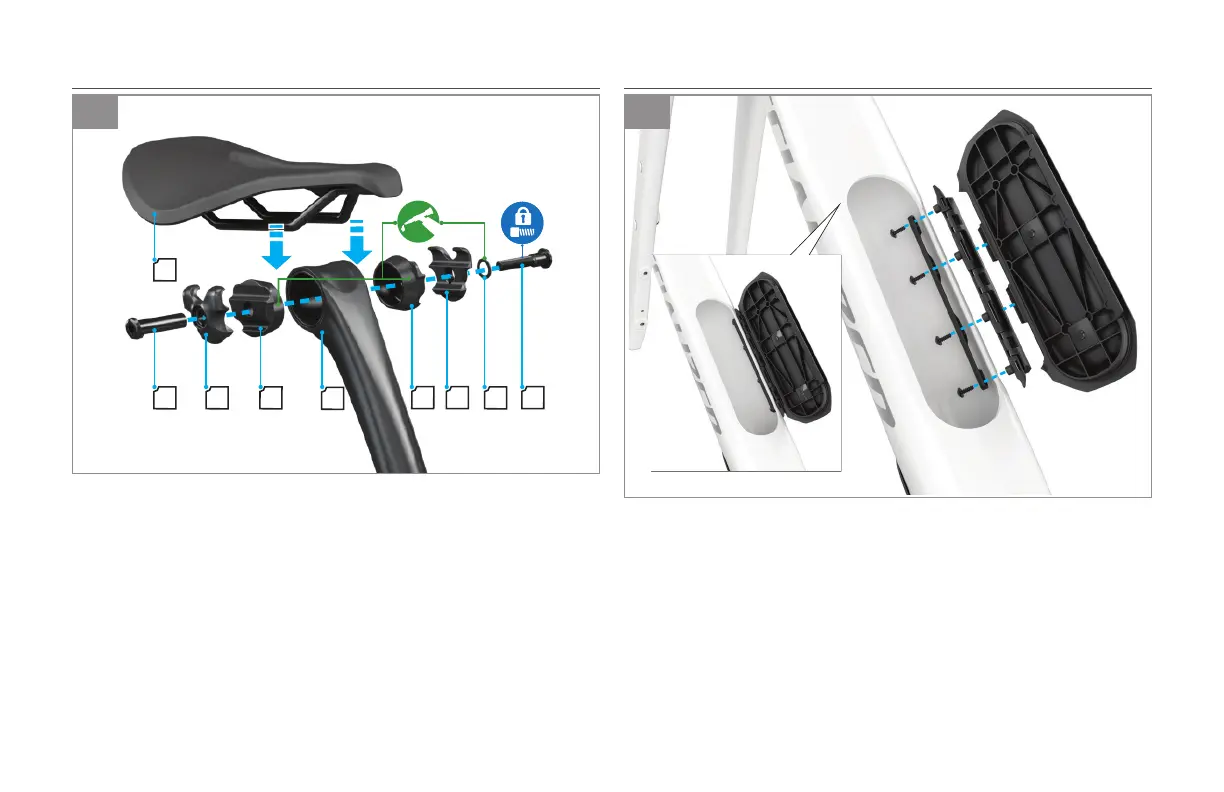

5.5. INSTALL THE SADDLE
A B C
E
C B
D F
G
2
FIG. 2
 Grease the inboard rail clamp contact surfaces (C), then install them in the seatpost head
(D).
 Position the saddle rails (G) on the inboard rail clamps.
 Position the outboard rail clamps (B) over the saddle rails. Use 7x7mm clamps for alloy rails
or 7x9mm clamps for carbon rails.
 Insert the female bolt (A) through one of the outboard rail clamps and key the bolt tab in
the outboard rail clamp groove.
 Apply Loctite to the male bolt threads (F), grease the washer (E), then place the washer on
the male bolt.
 Install the bolt in the opposing outboard rail clamp, then thread it into the female bolt.
5.6. ASSEMBLE THE SWAT DOOR
3
FIG. 3
 Line up the SWAT latch pieces with the holes in the frame.
 Insert the SWAT latch bolts. Using a T10 Torx key, tighten the bolts intermittently until there
is no more wiggle in the latch.
 Snap the SWAT door into place.
