6.3. DISC BRAKES

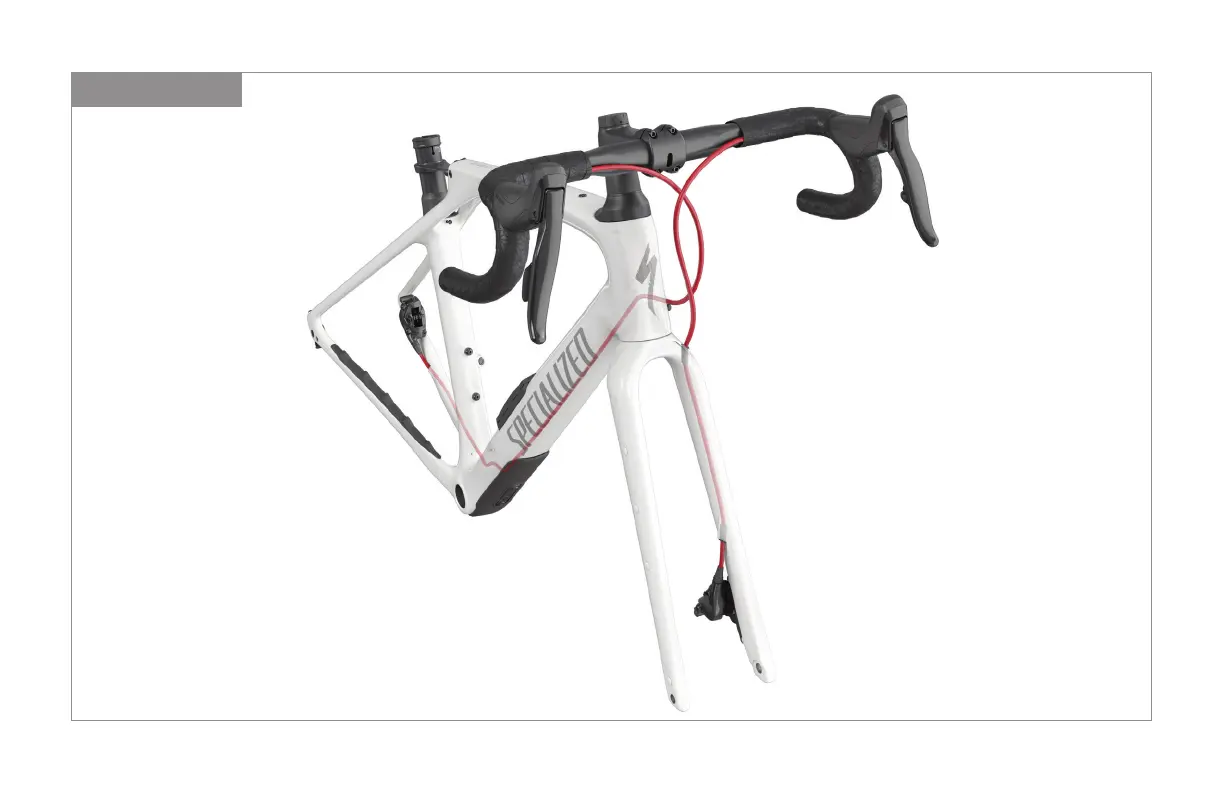

FIG. 3
ROUTE THE REAR BRAKE
Refer to the manufacturers’ manuals, supplied with your bicycle, for more information on assembly and adjustments.
Starting at the chainstay ICR port, guide the hose through the chainstay to the bottom bracket.
Guide the hose into the ICR channel in the downtube with your fingers. Push the hose upward until it exits the ICR port near the headtube.
Loosely install the caliper on the chainstay. Align the brake caliper with the rotor, then torque the caliper bolts according to the brake manufacturer’s specification.
According to the component manufacturer’s instructions, assemble the brake hose to the brake caliper.
ROUTE THE FRONT BRAKE
Run the front brake hose in through the lower ICR port in the fork and guide it up the fork leg until it exits at the upper ICR port.
Install the ICR grommets over the hose and into the fork ICR ports (S179900013).
Loosely install the caliper on the fork leg. Align the brake caliper with the rotor, then torque the caliper bolts according to the brake manufacturer’s specification.
According to the component manufacturer’s instructions, assemble the brake hose to the brake caliper.
3. DISC BRAKES
