105
Steps to set Wake on LAN:

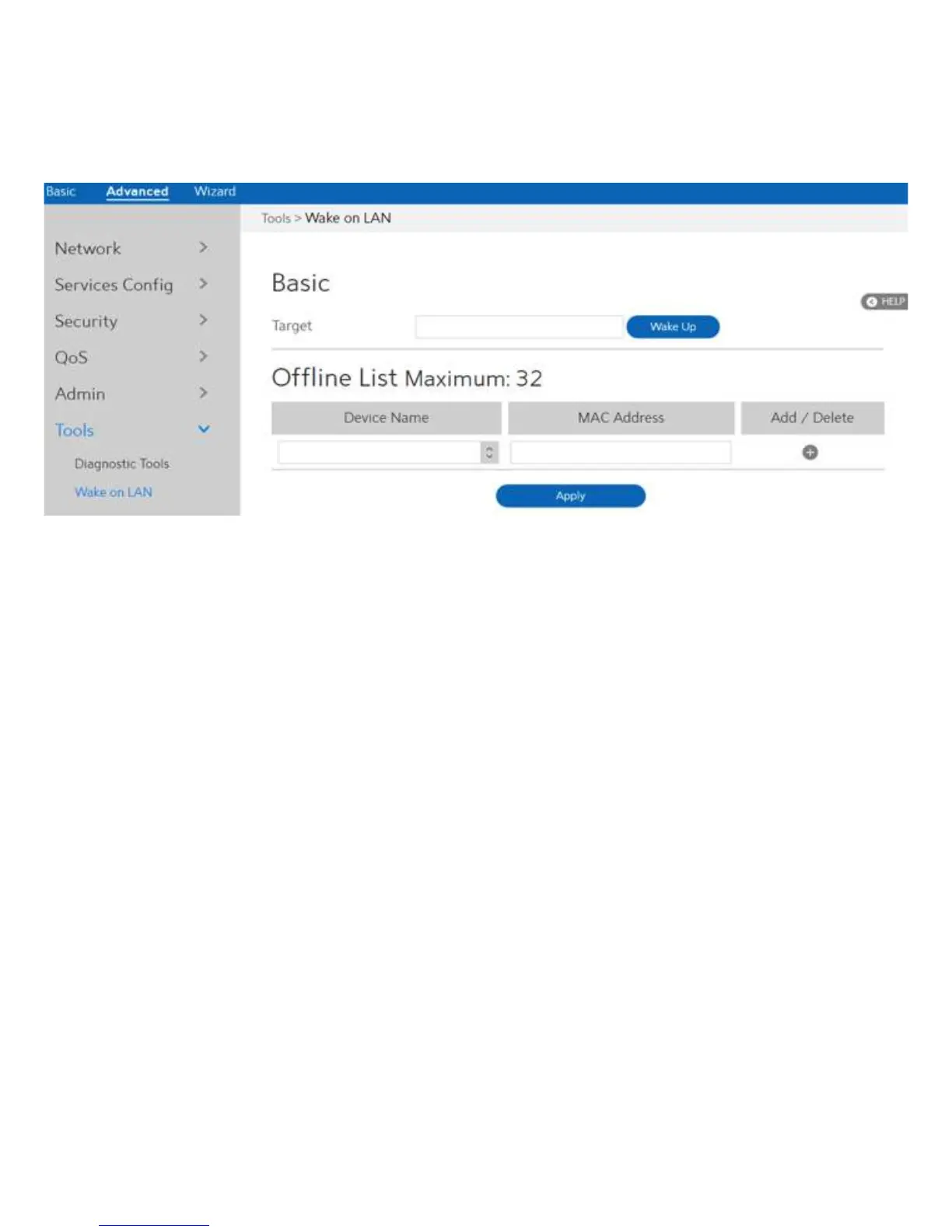

1. From the navigation panel, go to Advanced> Tools> Wake on LAN.
2. Target: Enter the MAC address of the device to be woken up, or select the device
name from the list.
3. Device Name: Name of device.
4. MAC Address: The format for the MAC address is six groups of two hexadecimal digits,
separated by colons (:), in transmission order (e.g. 12:34:56:aa:bc:ef).
5. When done, click Apply.
2.4.6.2 Wake on LAN
Wake on LAN is a power management function. It lets network admins wake up LAN side
devices from standby or hibernation mode. This function requires motherboard support on
LAN-side devices.
