2.4.3.3.1 Allow Services
Allow Services allows various types of service rules including protocol like TCP/UDP and
ICMPv6 Message Type. It will allow certain packets and drop the other IPv6 packets from
WAN-side to LAN-side.
Steps to set up IPv6 Firewall:

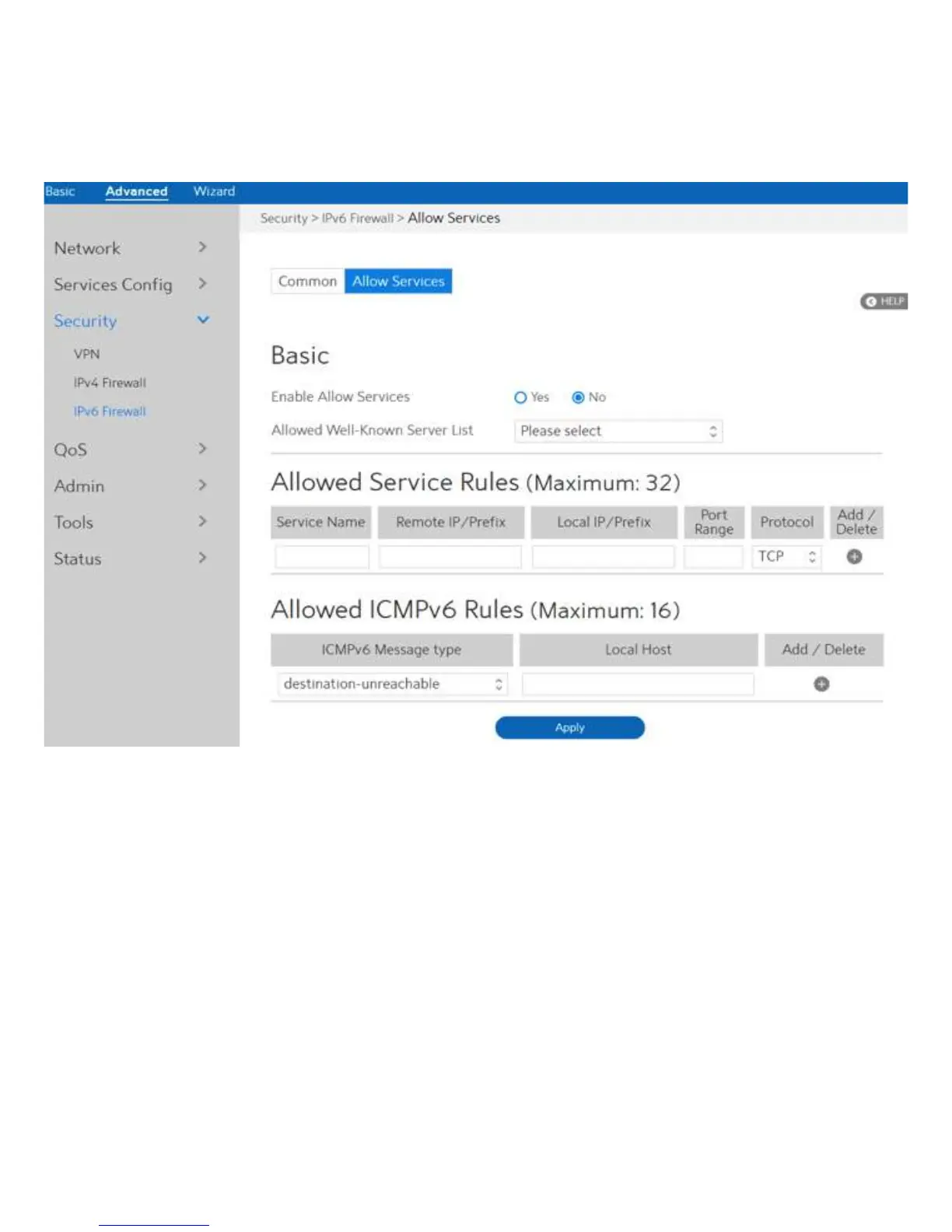

1. From the navigation panel, go to Advanced > Security > IPv6 Firewall > Allow Services.
2. Enable Allow Services: Enable or disable the IPv6 Allow Services feature. When
Allow Services is enabled, the Allowed Service Rules will
be allowed.
3. Allowed Well-Known Server List: List of well-known servers to be allowed. For example:
ftp, samba.
4. Service Name: The name of the service which will add IPv6 firewall rule.
5. Remote IP/Prefix: IPv6 address or Prefix of a remote server.
6. Local IP/Prefix: IPv6 address or Prefix of a LAN-side client.
7. Port Range: Port range accepts various formats such as Port Range
(300:350), individual ports (566,789) or Mix (1015:1024,
3021).
