SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL
IT
Funzione
1
Antenna
2
Speaker Grill
3
Interruttore H
4
Interruttore G
5
Interruttore F
6
Stick motore/alettoni
(Mode 1)
Stick elevatore/alettoni
(Mode 2)
Stick motore/timone
(Mode 3)
Stick elevatore/timone
(Mode 4)
Funzione
7
Trim elevatore (Mode 2, 4)
Trim motore (Mode 1, 3)
8
Trim alettone (Mode 1,2)
Trim timone (Mode 3,4)
9
Rotella di scorrimento
(Roller)
Impugnatura destra
11
Interruttore On/Off
12
LCD
13
Pulsante Clear
14
Pulsante Back
15
Apertura per la scheda SD
Funzione
16
Impugnatura sinistra
Aggancio per cinghia
18
Trim timone (Mode 1,2)
Trim alettone (Mode 3,4)
19
Trim elevatore (Mode 1,3)
Trim motore (Mode 2,4)
20
Stick elevatore/timone
(Mode 1)
Stick motore/timone
(Mode 2)
Stick elevatore/alettone
(Mode 3)
Stick motore/alettone
(Mode 4)
Funzione
21
Interruttore C
22
Interruttore B
23
Interruttore A
24
Interruttore D
25
Interr./Bind I
26
LED
Il trasmettitore viene fornito
con un sottile film plastico
trasparente applicato su alcuni
pannelli frontali, come protezione.
L’umidità e l’uso possono far
distaccare parzialmente questo
film. Lo si può togliere quando si
vuole agendo delicatamente.

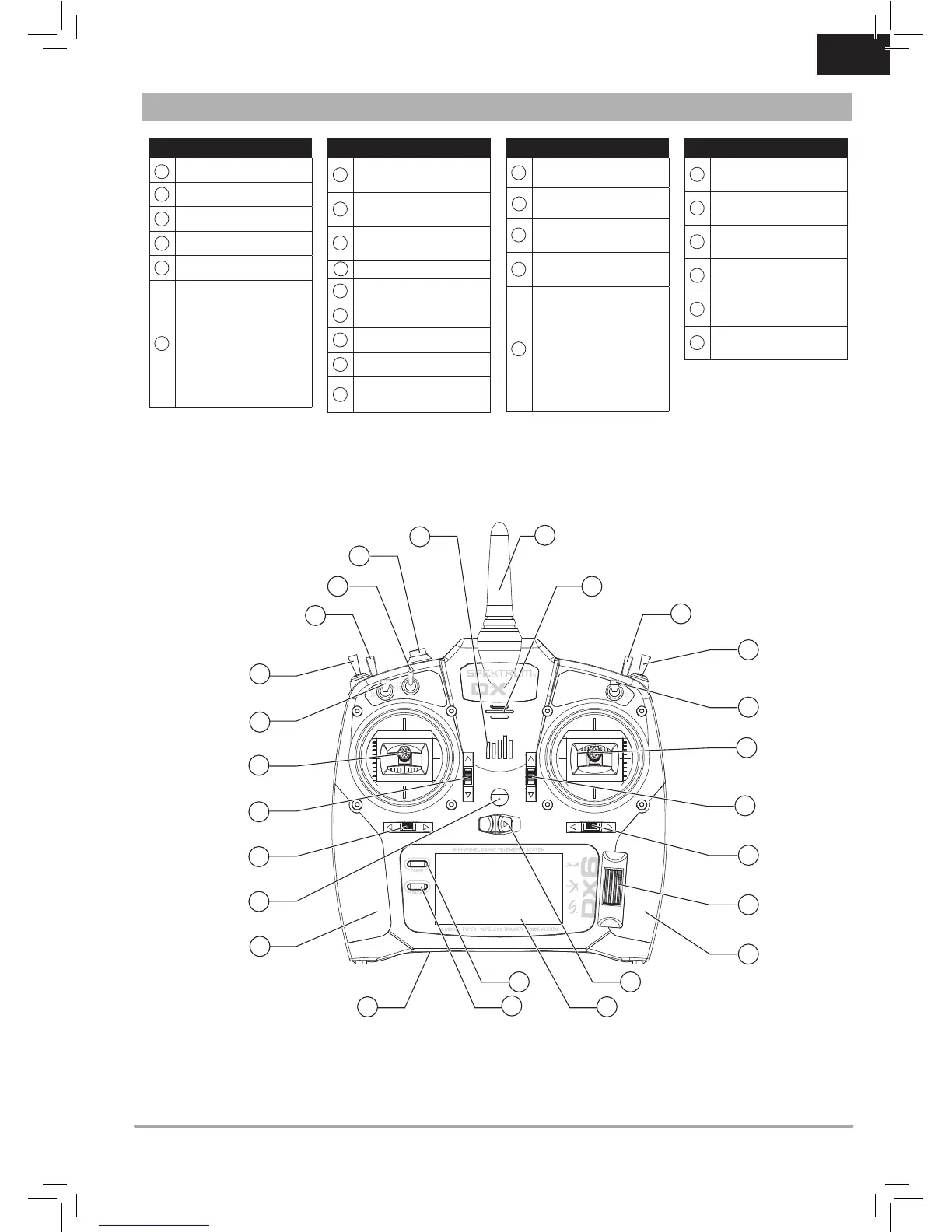

FUNZIONI DEL TRASMETTITORE
F
C
D
6
3
19
18
17
20
21
22
23
1
4
5
6
8
7
10
11
12
13
14
15
16
24
25
26
2
9
10
