SPEKTRUM DX6 • TRANSMITTER INSTRUCTION MANUAL
EN
Function
1
Antenna
2
Speaker Grill
3
Switch H
4
Switch G
5
Switch F
6
Throttle/Aileron Stick
(Mode 1)
Elevator/Aileron Stick
(Mode 2)
Throttle/Rudder Stick
(Mode 3)
Elevator/Rudder Stick
(Mode 4)
Function
7
Elevator Trim (Mode 2, 4)
Throttle Trim (Mode 1, 3)
8
Aileron Trim (Mode 1,2)
Rudder Trim (Mode 3,4)
9
Scroll wheel
Right Side Grip
11
On/OffSwitch
12
LCD
13
Clear Button
14
Back Button
15
SDCardOpening
Function
16
left Side Grip
Neck Strap Mount
18
Rudder Trim (Mode 1,2)
Aileron Trim (Mode 3,4)
19
Elevator Trim (Mode 1,3)
Throttle Trim (Mode 2,4)
20
Elevator/Rudder Stick
(Mode 1)
Throttle/Rudder Stick
(Mode 2)
Elevator/Aileron Stick
(Mode 3)
Throttle/Aileron Stick
(Mode 4)
Function
21
Switch C
22
Switch B
23
Switch A
24
Switch D
25
Bind/Switch I
26
LED
The transmitter comes with a thin,
clear plastic film applied to some
front panels for protection during
shipping. Humidity and use may
cause this film to come off. Carefully
remove this film as desired.

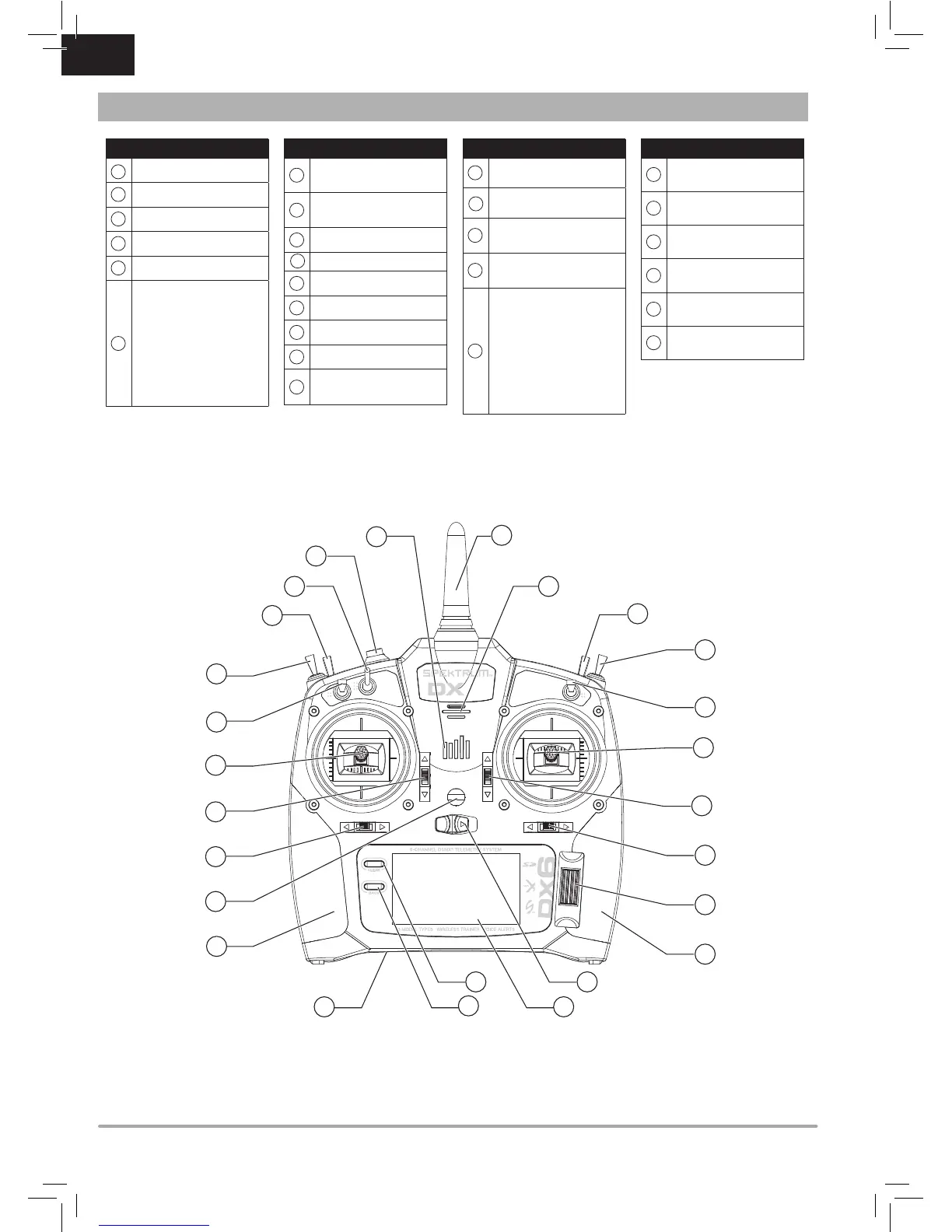

TRANSMITTER FUNCTIONS
F
C
D
6
3
19
18
17
20
21
22
23
1
4
5
6
8
7
10
11
12
13
14
15
16
24
25
26
2
9
10
17
