SHORT STROKE VALVES

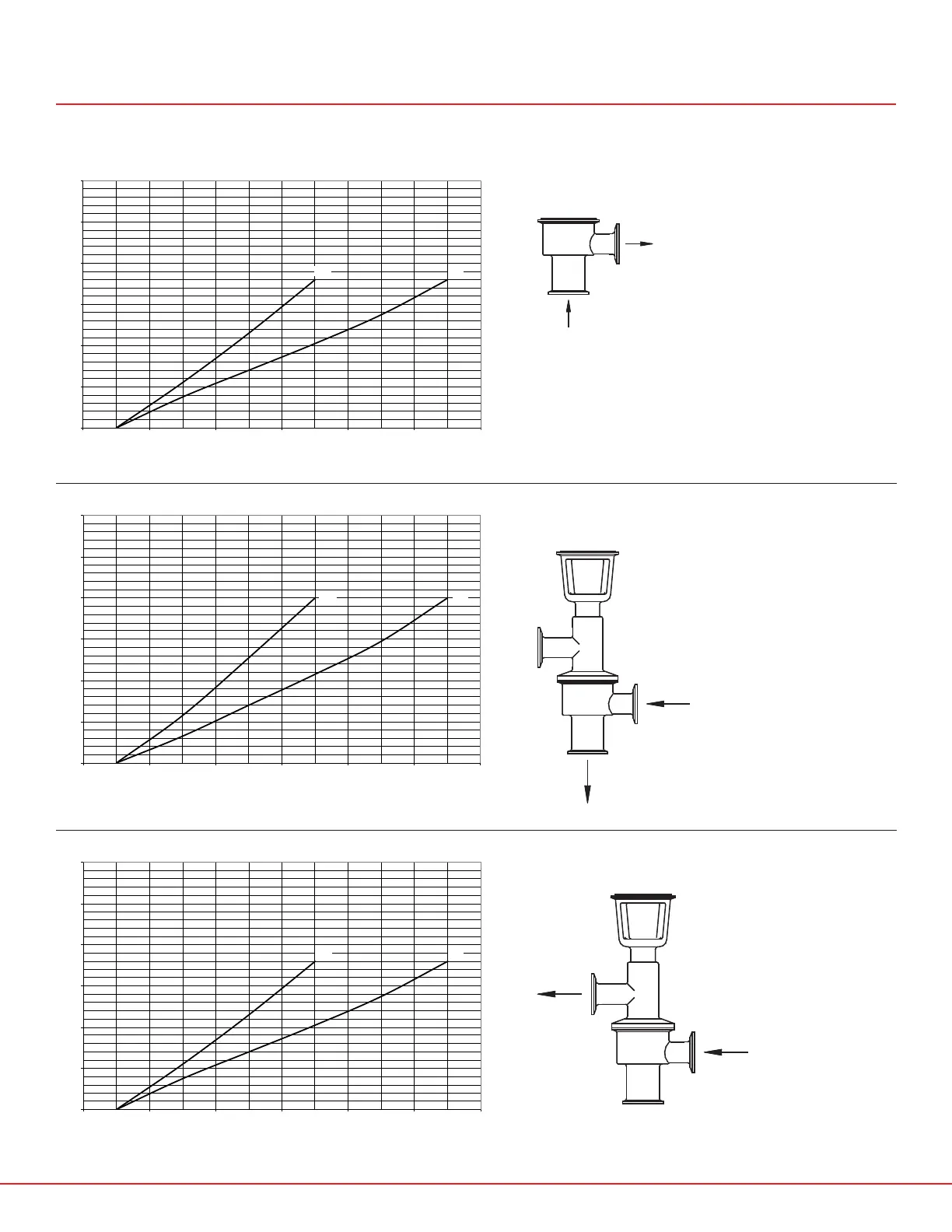

SP60 SERIES – HEAD LOSS CURVES
1/2"
3/4'
0
10
20
30
40
50
60
0 10 20 30 40 50
Loss (Feet of Water)
Flow Rate (GPM)
SP160-7 Tee Body Valve
SP160-7 Tee Body Valve
SP160-77 Divert Valve
SP160-77 Divert Valve
1/2"
3/4'
0
10
20
30
40
50
60
0 10 20 30 40 50
Loss (Feet of Water)
Flow Rate (GPM)
