MANUAL VALVES
SP160 SERIES / SP161 SERIES - RUBBER COATED AND PTFE REPLACEABLE SEAT
SP1607X*H
SP1617X*H
SP1609X*H
SP1619X*H
SP16077X*H
SP16177X*H

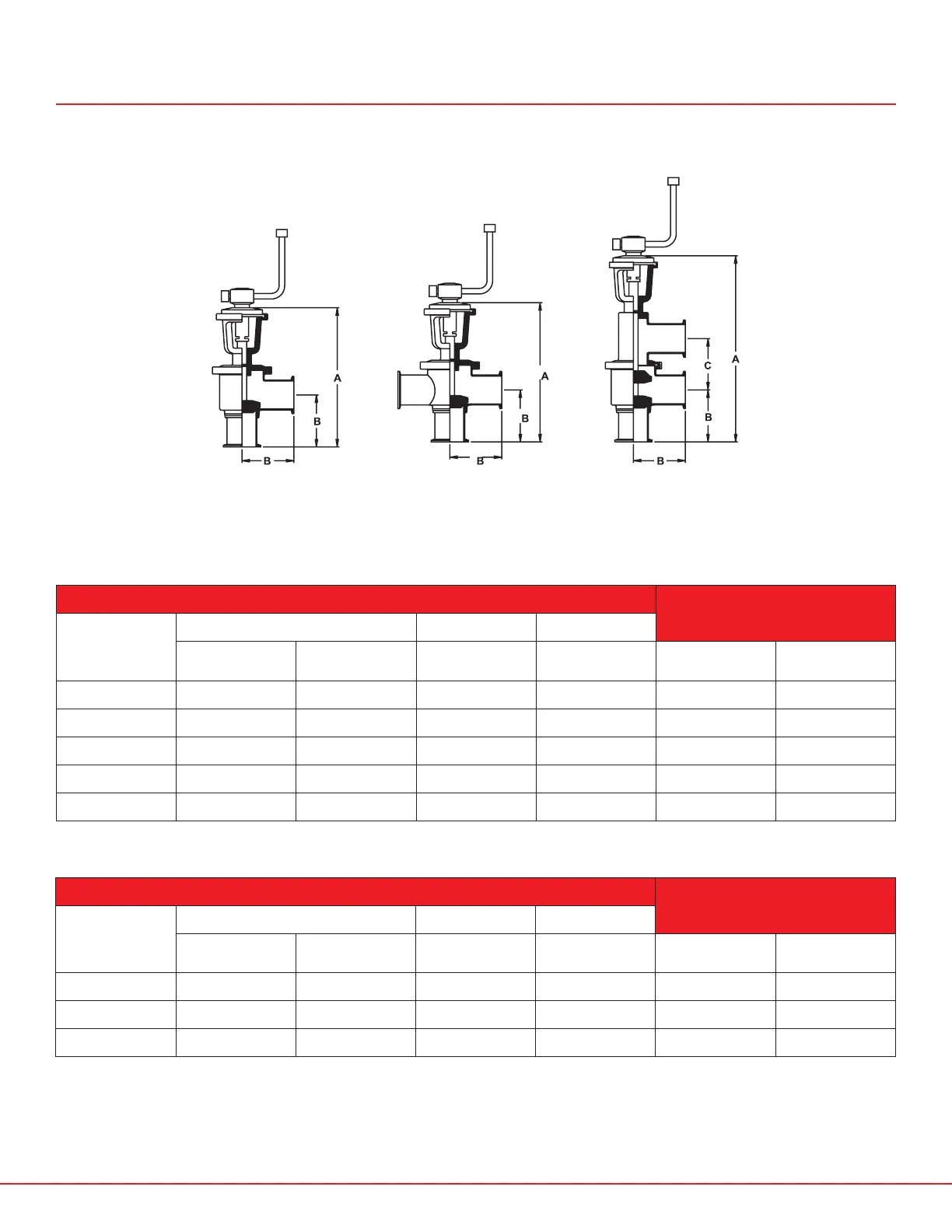

SP160 SHORT STROKE VALVE DIMENSIONS
SHIPPING #S
SIZE
A B C
SHUT-OFF
VALVE
DIVERT VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
1” 7 1/8” 9 3/4” 2 1/2” 2 27/32” 2 1/2 # 3 1/2 #
1.5” 7 3/8” 10” 2 3/4” 2 27/32” 2 1/2 # 3 1/2 #
2” 8 3/8” 11” 3 1/2” 3 7/16” 3 1/2 # 4 1/2 #
2.5” 8 3/4” 12” 3 1/2” 3 15/16” 4 1/2 # 5 1/2 #
3” 9 1/16” 14” 3 3/4” 4 9/16” 7 # 8 #
SP161 LONG STROKE VALVE DIMENSIONS
SHIPPING #S
SIZE
A B C
SHUT-OFF
VALVE
DIVERT VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
2” 9 7/8” 13 3/16” 3 1/2” 3 7/16” 8 # 10 #
2.5” 10 1/2” 14 1/4” 3 1/2” 3 15/16” 9 1/2 # 12 #
3” 11 3/4” 15 7/8” 3 3/4” 4 9/16” 11 # 13 1/4 #
ALL VALVES ARE STANDARD WITH SANITARY CLAMP END-CONNECTIONS, PLEASE CONTACT FACTORY FOR OTHER OPTIONS.
