SPI VALVES SP160 Series User Manual

22
TANK OUTLET VALVES

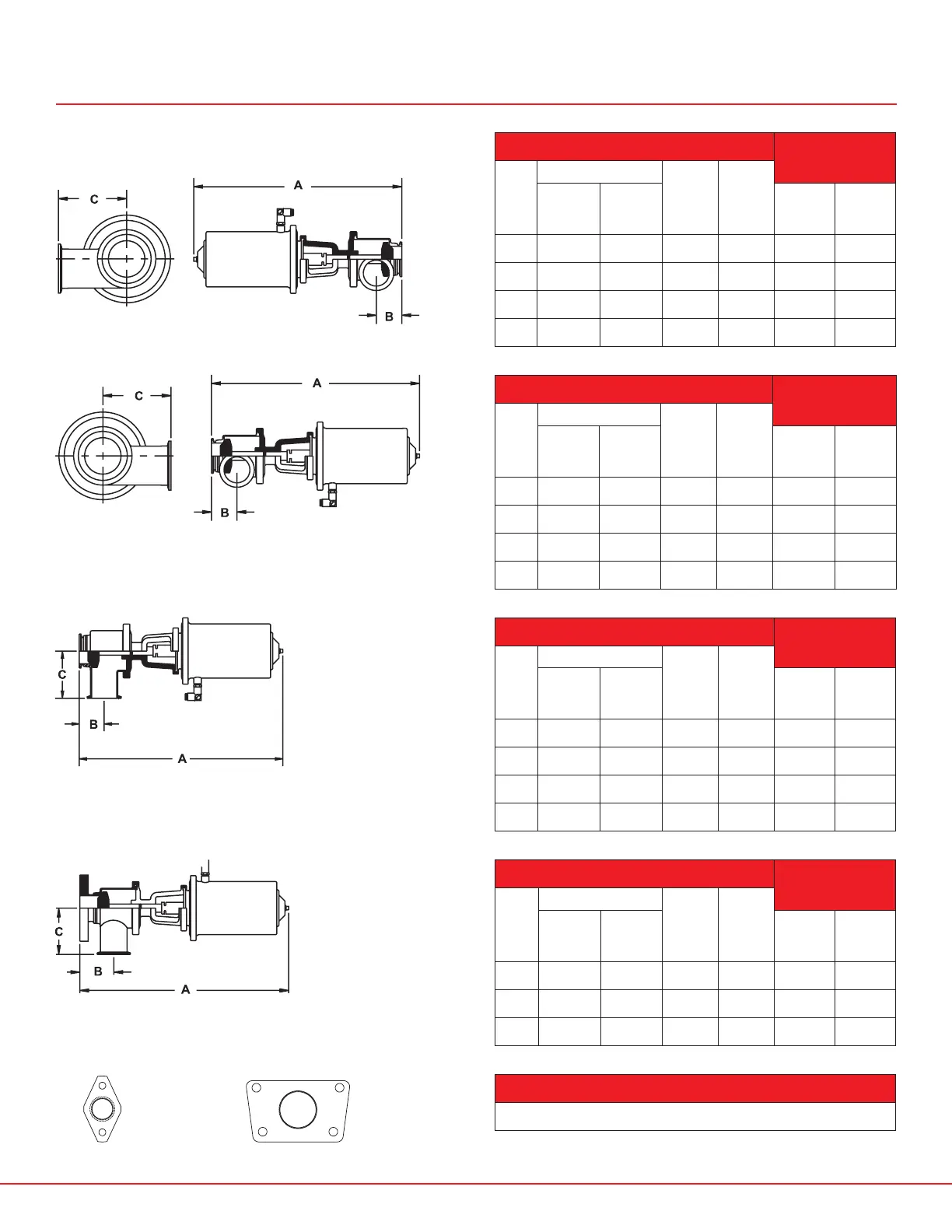

SP163 AND SP1613 TANK OUTLET VALVES
VALVE DIMENSIONS
SHIPPING #S
SIZE
A
B C
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
2” 14 31/32” 21 1/8” 1 27/32” 4 1/8” 16.5 # 22 #
2.5” 15 13/16” 21 13/16” 2 5/16” 4 1/8” 18 # 22 #
3” 16 9/16” 22 11/16” 2 5/8” 4 1/2” 20 # 25 #
4” N/A 19” 3 3/16” 4 3/4” N/A 28 #
VALVE DIMENSIONS
SHIPPING #S
SIZE
A
B C
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
2” 14 31/32” 21 1/8” 1 27/32” 4 1/8” 16.5 # 22 #
2.5” 15 13/16” 21 13/16” 2 5/16” 4 1/8” 18 # 22 #
3” 16 9/16” 22 11/16” 2 5/8” 4 1/2” 20 # 25 #
4” N/A 19” 3 3/16” 4 3/4” N/A 28 #
VALVE DIMENSIONS
SHIPPING #S
SIZE
A
B C
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
2” 14 31/32” 21 1/8” 1 27/32” 4 1/8” 16.5 # 22 #
2.5” 15 13/16” 21 13/16” 2 5/16” 4 1/8” 18 # 22 #
3” 16 9/16” 22 11/16” 2 5/8” 4 1/2” 20 # 25 #
4” N/A 19” 3 3/16” 4 3/4” N/A 28#
VALVE DIMENSIONS
SHIPPING #S
SIZE
A
B C
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
SHORT
STROKE
VALVE
LONG
STROKE
VALVE
2” 14 31/32” 21 1/8” 1 27/32” 4 1/8” 16.5 # 22 #
2.5” 15 13/16” 21 13/16” 2 5/16” 4 1/8” 18 # 22 #
3” 16 9/16” 22 11/16” 2 5/8” 4 1/2” 20 # 25 #
TANGENTIAL RIGHT
TANGENTIAL LEFT
STRAIGHT
FLANGE
2” VALVES
2- AND 4-HOLE FLANGES
Contact factory for options and dimensions.
21/2” AND 3” VALVES
