SPI VALVES SP160 Series User Manual

9

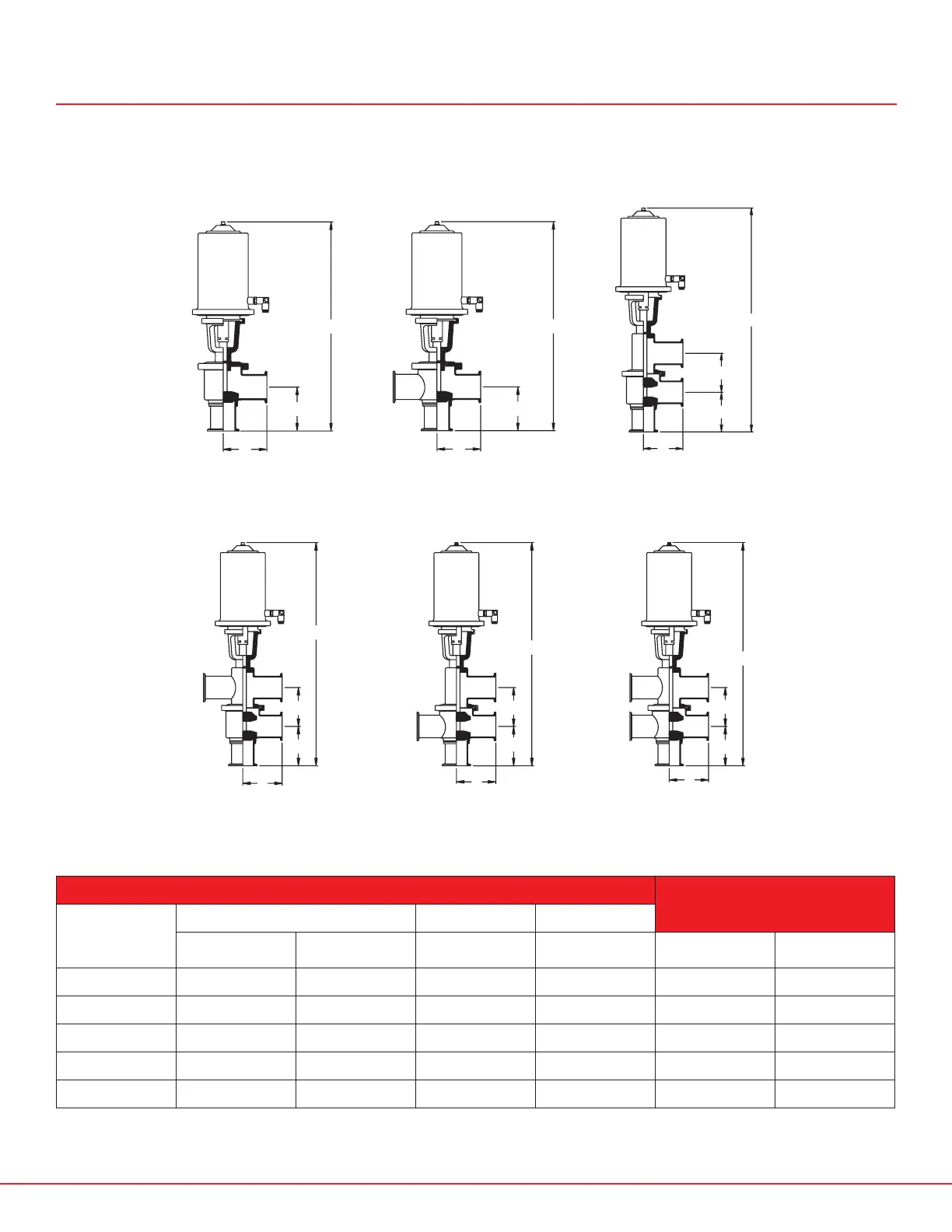

SHORT STROKE VALVES
SP1607X*ACT
SP60 SERIES – RUBBER COATED AND PTFE REPLACEABLE SEAT
SP1609X*ACT SP16077X*ACT
SP1607X*ACT SP1607X*ACT SP160X*ACT
VALVE DIMENSIONS
SHIPPING #S
SIZE
A B C
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
1” 14 7/8” 17 9/16” 2 1/2” 2 27/32” 16 1/2 # 18 #
1.5” 15 5/8” 18 5/16” 2 3/4” 2 15/16” 16 1/2 # 18 #
2” 15 5/8” 19 13/16” 3 1/2” 3 7/16” 16 1/2 # 19 1/2 #
2.5” 17” 20 11/16” 3 1/2” 3 15/16” 18 # 20 1/2 #
3” 17 11/16” 22 1/4” 3 3/4” 4 9/16” 20 # 22 1/2 #
A
C
B
B
A
B
B
A
B
B
A
C
B
B
A
C
B
B
A
C
B
B
VALVES ARE SHOWN WITH #20 ACT. ALL VALVES ARE STANDARD WITH SANITARY CLAMP END-CONNECTIONS. PLEASE CONTACT FACTORY FOR OTHER OPTIONS.
*X=VALVE SIZE.
