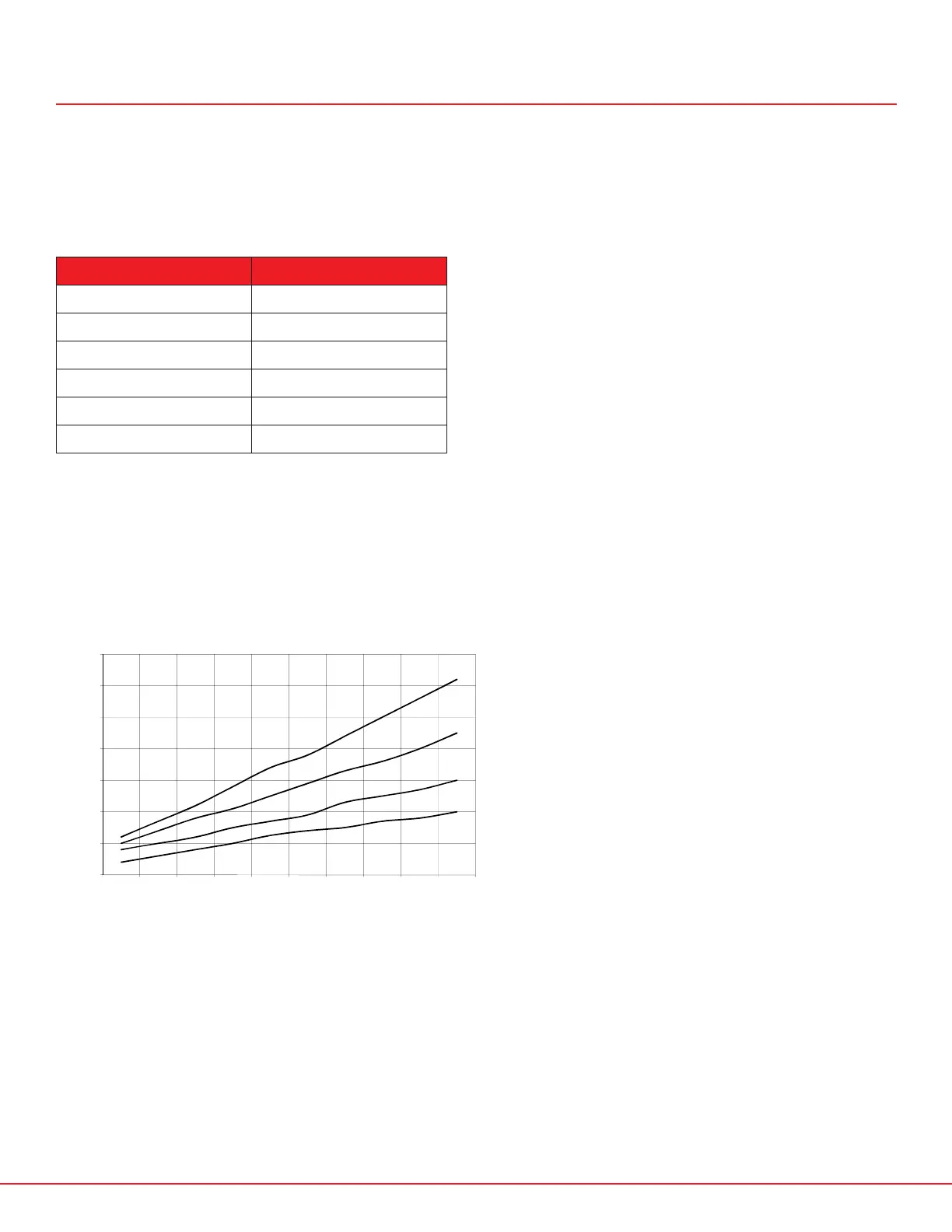

SPI VALVES SP160 Series User Manual

8
SHORT STROKE ACTUATORS
SP20 SHUT-OFF CAPABILITIES
The following table gives the approximate
maximum line pressure against which the spring
in a normally closed, air-to-open valve will hold.
VALVE SIZE SP20 ACTUATOR
1/2” 195 PSI
3/4” 50 PSI
1” AND 1 1/2” 190 PSI
2” 100 PSI
2 1/2” 60 PSI
3” 45 PSI
1 1/2"
2"
2 1/2"
3"
60
70
80
90
100
110
120
130
10 20 30 40 50 60 70 80 90 100
Air Pressure (PSI)
Line Pressure (PSI)
SP0 ACTUATOR LINE PRESSURE CURVE
The chart below illustrates the air supply which
must be available to a normally-open; air-to-
close valve in order to fully shut o against the
corresponding fluid pressure.
