SPI VALVES SP160 Series User Manual

15
LONG STROKE VALVES

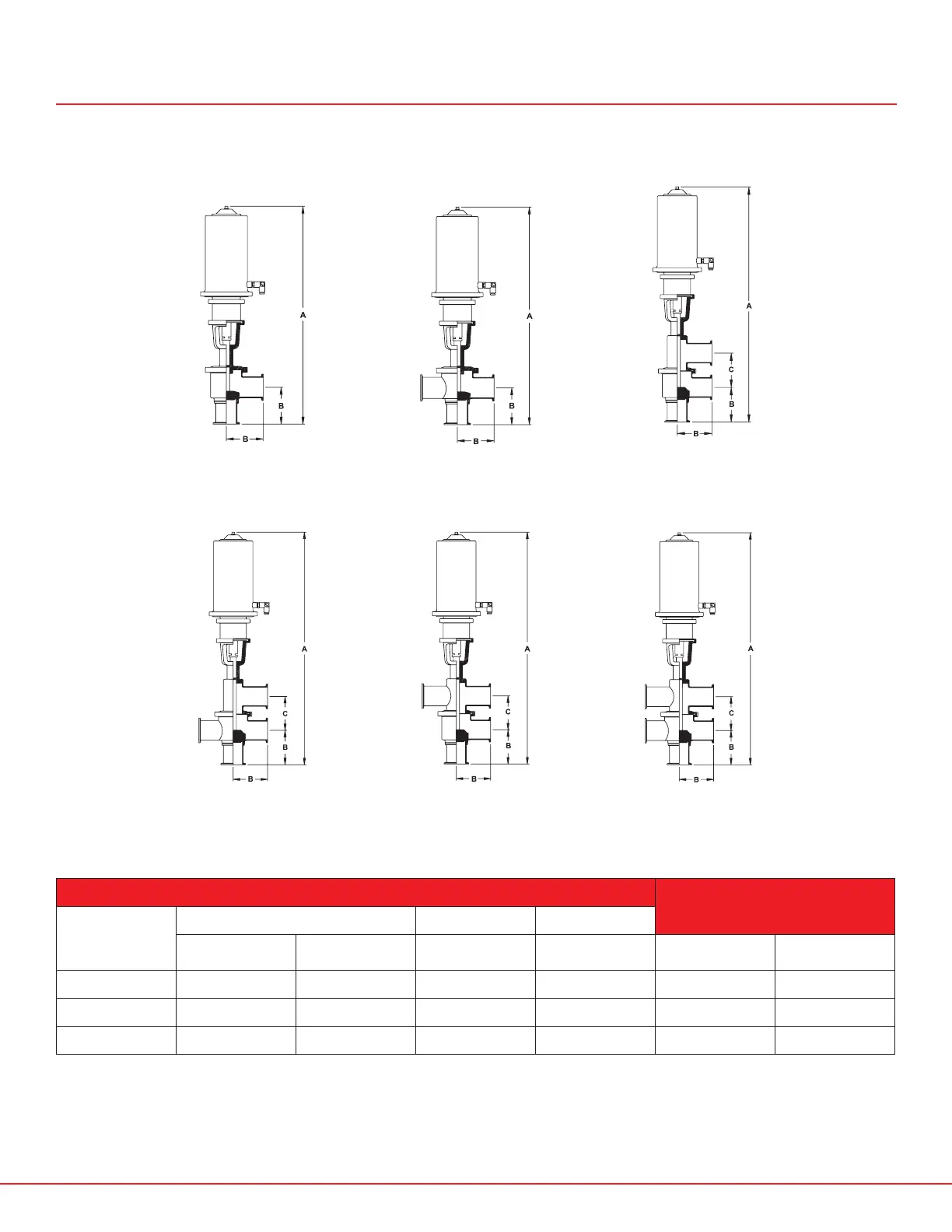

SP61 SERIES — RUBBER COATED AND PTFE REPLACEABLE SEAT
VALVE DIMENSIONS
SHIPPING #S
SIZE
A B C
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
2” 21 3/4” 25 3/4” 3 1/2” 3 7/16” 16 1/2 # 19 1/2 #
2.5” 22 1/2” 27 1/4” 3 1/2” 3 15/16” 18 # 20 1/2 #
3” 23 7/8” 29” 3 3/4” 4 9/16” 20 # 22 1/2 #
VALVES ARE SHOWN WITH #120 ACT.
SP1619X*ACT
SP16179X*ACT
SP16177X*ACT
SP1617X*ACT
SP16197X*ACT
SP16199X*ACT
*X=VALVE SIZE.
ALL VALVES ARE STANDARD WITH SANITARY CLAMP END-CONNECTIONS. PLEASE CONTACT FACTORY FOR OTHER OPTIONS.
