SP160 and SP161 Plug and Stem Identication

Short Stroke   



   











 































 



























m 

























 I























Long Stroke

































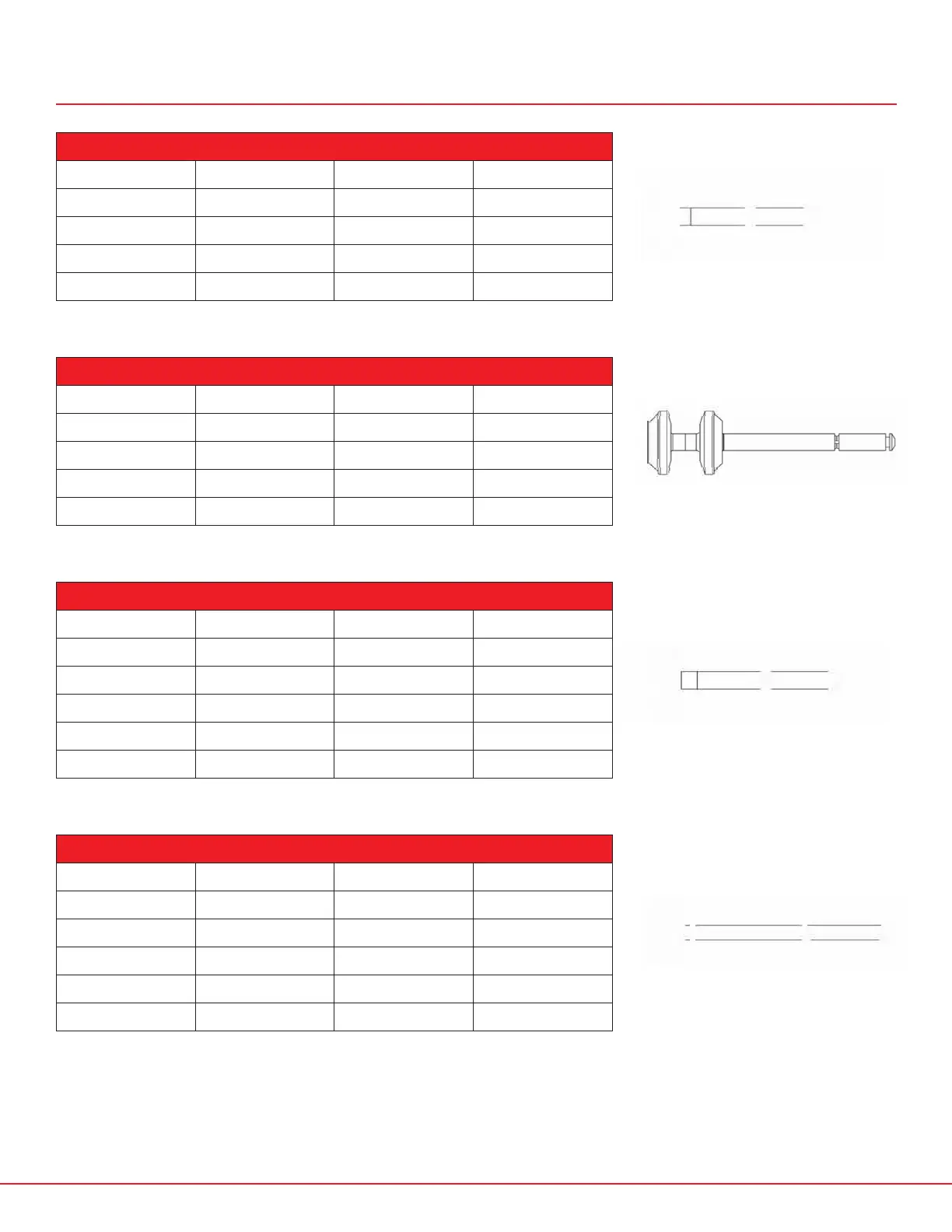

VALVE BODY PLUG AND STEM IDENTIFICATION

SHORT STROKE SHUT OFF VALVES

PART NUMBER OVERALL LENGTH PLUG DIAMETER SHAFT DIAMETER

SP160-7-1.5-2 4.819 1.937 0.625

SP160-7-2-2 5.312 2.437 0.625

SP160-7-2.5-2 5.781 2.937 0.625

SP160-7-3-2 6.35 3.438 0.625

DIVERT VALVES

PART NUMBER OVERALL LENGTH PLUG DIAMETER SHAFT DIAMETER

SP160-77-1.5-2 7.438 1.937 0.625

SP160-77-2-2 8.499 2.437 0.625

SP160-77-2.5-2 9.487 2.937 0.625

SP160-77-3-2 10.56 3.438 0.625

LONG STROKE SHUT OFF VALVES

PART NUMBER OVERALL LENGTH PLUG DIAMETER SHAFT DIAMETER

SP161-7-2-2 6.062 2.437 0.625

SP161-7-2.5-2 7.022 2.937 0.625

SP161-7-3-2 8.351 3.438 0.625

SP161-7-4-2 #110 14.969 4.438 0.875

SP161-7-4-2 #120 11.094 4.438 0.875

DIVERT VALVES

PART NUMBER OVERALL LENGTH PLUG DIAMETER SHAFT DIAMETER

SP161-77-2-2 9.687 2.437 0.625

SP161-77-2.5-2 10.874 2.937 0.625

SP161-77-3-2 12.18 3.438 0.875

SP161-77-4-2 #110 20.701 4.438 0.875

SP161-77-4-2 #120 16.707 4.438 0.875

  

 
