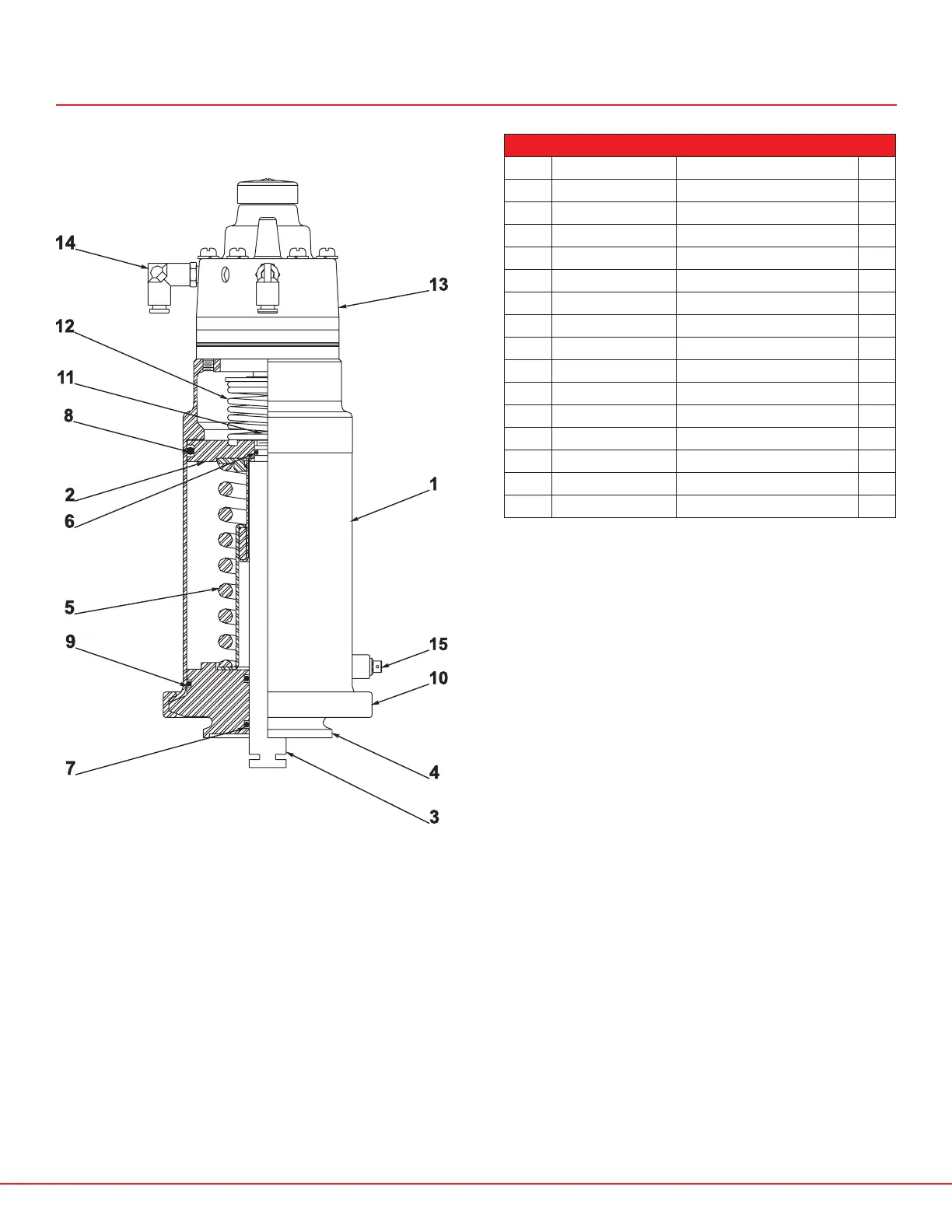

PARTS LIST  MODULATING ACTUATOR

SP10VPD POSITIONER

ITEM PART NUMBER DESCRIPTION KIT

1 SP10VPD-1 Cylinder Assembly

2 SP10VP-2 Piston

3 SP10-2D Actuator Stem

4 SP10-4 Actuator Foot

5 SP10-5 Spring and Cage Assembly

6 SP10-6 Upper Stem O-Ring ▲ ○

7 SP10-7 Lower Stem O-Ring ▲ ○

8 SP10-8 Piston O-Ring ▲ ○

9 SP10-9 Foot O-Ring ▲ ○

10 SP13HC-4 Actuator Clamp

11 SP10-12 Stem Nut

12 12395-X-1612 Range Spring

13 73N12F Valve Postioner

14 SP10MS-14 Poly Tube Connector

15 SP10-15BV Breather Vent Plug

▲ INCLUDED IN SP20-SK ACTUATOR SERVICE KIT

○ INCLUDED IN SP20-RBK-SIZE VALVE SERVICE KIT

SP10VPD - DIRECT ACTING VALVE POSITIONER
