FLOW DIVERSION VALVES

SP160 FDV SERIES SHORT STROKE

SP161 FDV SERIES LONG STROKE

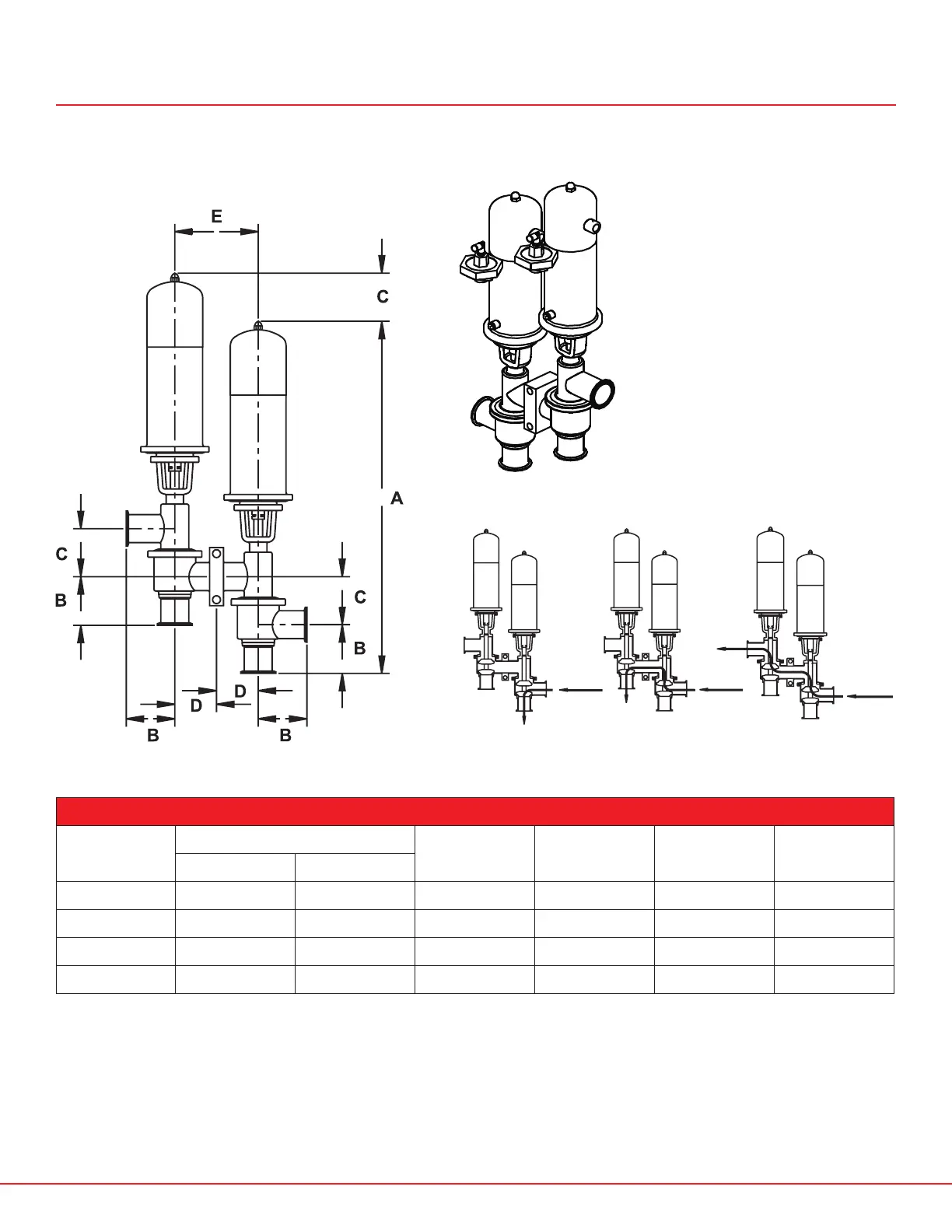

VALVE DIMENSIONS

SIZE

BB C D E

SHORT STROKE LONG STROKE

1.5” 23 1/2” n/a 2 3/4” 2 27/32” 3” 6”

2” 25” 27 1/2” 3 1/2” 3 7/16” 3 3/4” 7 1/2”

2.5” 25 7/8” 28 1/4” 3 1/2” 3 15/16” 3 3/4” 7 1/2”

3” 27 7/16” 29 5/8” 3 3/4” 4 9/16” 4” 8”

DIVERT FLOW LEAK DETECTOR FLOW FULL FORWARD FLOW
