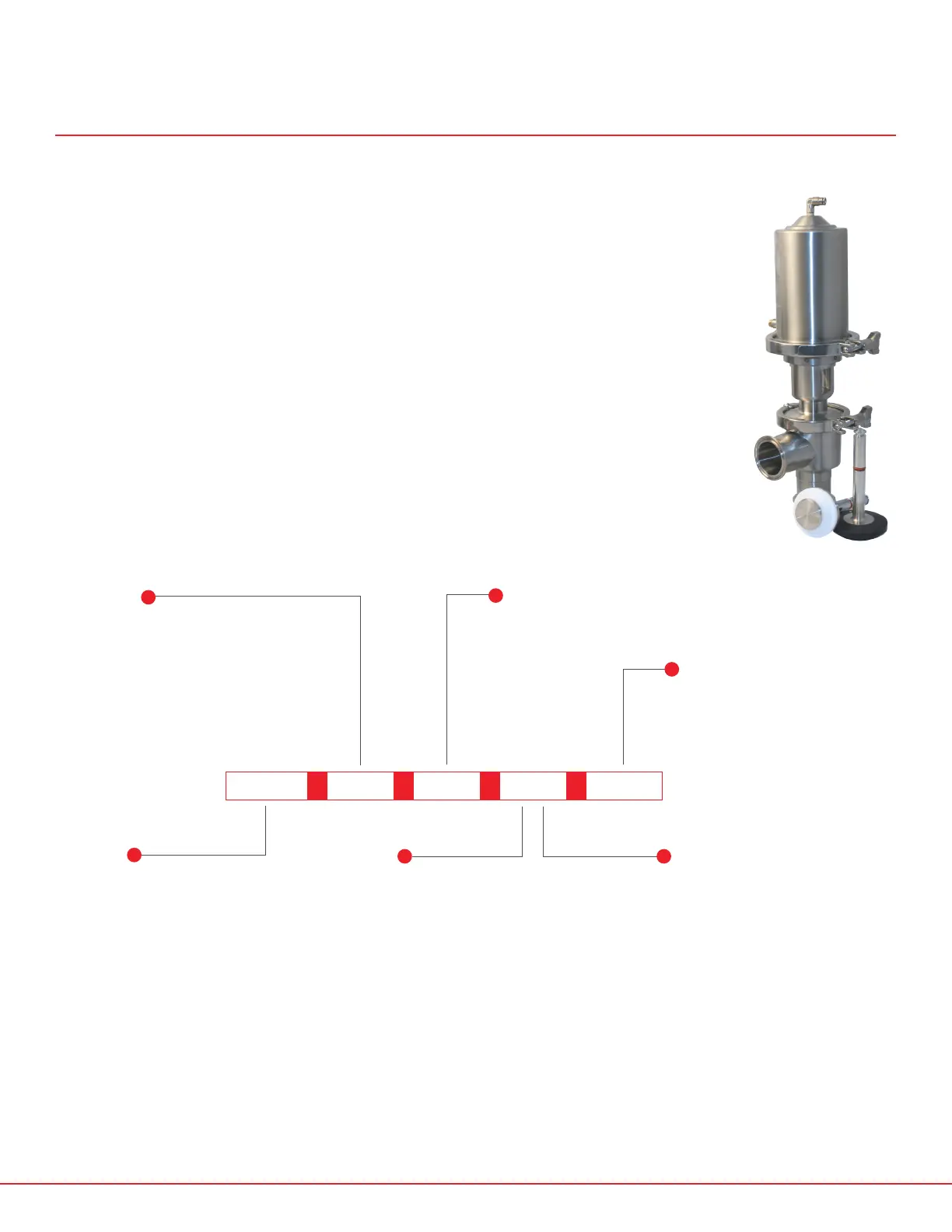

SP160/SP161 SERIES SHUTOFF AND DIVERT VALVES
ORDERING INFORMATION
• All stainless steel constructions (T6L wetted parts)
• Precision molded seat assures positive shut-off and long life
• Seat material includes:
• EPDM (275  F Max)
• Viton
®
(450  F Max)
• P.T.F.E (replaceable seat) (140  F Max)
• Dual micro-switch or dual proximity switch optional
• Viton stem O-ring
• Open yoke provides leak detection and visual stem position
• No special tools needed for valve maintenance
SP160 7220__ EPDM
- - - -
BONDED PLUG MATERAL:
EPDM = EPDM
SFY = VITON®
RS = PTFE
STROKE OPTIONS:
SP160 = SHORT STROKE
SP161 = LONG STROKE
VALVE SIZE:
0.5
0.75
1
1.5
2
2.5
3
4 - SP161 ONLY
BODY STYLE:
SHUT-OFF
7 = TEE BODY
9 = CROSS BODY
DIVERT
77 = UPPER TEE, LOWER TEE
79 = UPPER TEE, LOWER CROSS
97 = UPPER CROSS, LOWER TEE
99 = UPPER CROSS, LOWER CROSS
INDICATION OPTIONS:
[BLANK] = NO SWITCH
MS = MICRO-SWITCH
PRX = PROX-SWITCH
Switches not available
on 4 inch valves or light
duty spring actuators
ACTUATOR STYLE:
SHORT STROKE
H = MANUAL HANDLE
10 = NORMALLY OPEN
20 = NORMALLY CLOSED
30 = AIR-T0-AIR
10/70 = LIGHT DUTY SPRING N.O.
20/70 = LIGHT DUTY SPRING N.C.
LONG STROKE
H = MANUAL HANDLE
110 = NORMALLY OPEN
120 = NORMALLY CLOSED
130 = AIR-TO-AIR
110/70 = LIGHT DUTY SPRING N.O.
120/70 = LIGHT DUTY SPRING N.C.
6
3
1
54
2
