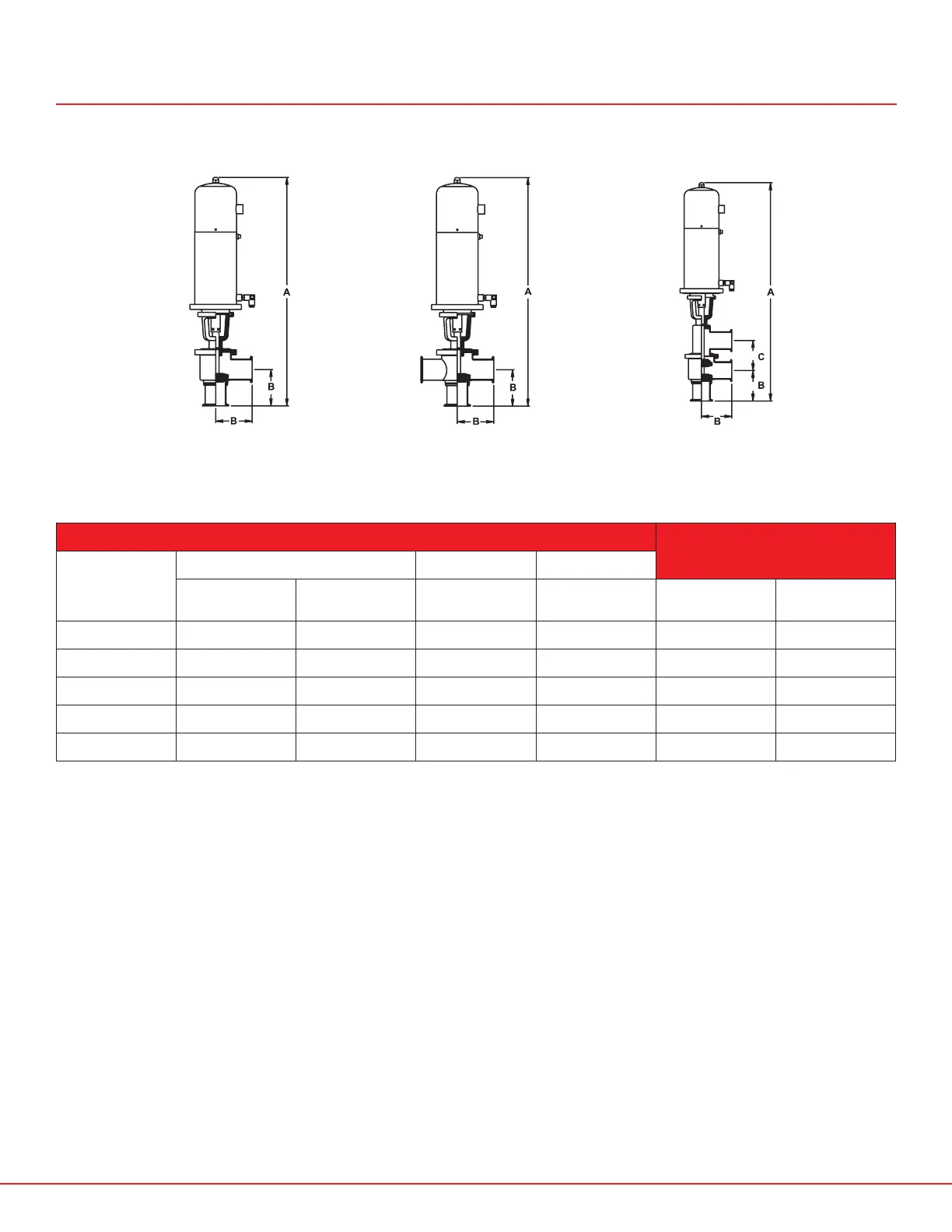

SPI VALVES SP160 Series User Manual

20
MICRO / PROXIMITY ACTUATORS
SP160MS/PRX - SHORT STROKE
VALVE DIMENSIONS
SHIPPING #S
SIZE
A B C
SHUT-OFF
VALVE
DIVERT VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
SHUT-OFF
VALVE
DIVERT
VALVE
1” 21 1/8” 23 13/16” 2 1/2” 2 27/32” 22 1/2 # 24 #
1.5” 21 3/8” 24 1/16” 2 3/4” 2 27/32” 22 1/2 # 24 #
2” 27 1/2” 25 9/16” 3 1/2” 3 7/16” 22 1/2 # 25 1/2 #
2.5” 28 1/4” 26 7 /16” 3 1/2” 3 15/16” 24 # 26 1/2 #
3” 29 5/8” 28” 3 3/4” 4 9/16” 26 # 28 1/2 #
SP160MS/PRX7 BODY SP160MS/PRX9 BODY
SP160MS/PRX77 BODY
