SP160 SERIES 7M MULTI-TAPER CV FACTORS
PLEASE CONTACT THE FACTORY FOR INFORMATION ON 7MR O-RING SEAT OPTIONS.
DATA IS BASED ON WATER AT 70°F
MODULATING VALVES
1"
1 1/
2"
2"
2 1/
2"
3"
0
20
40
60
80
100
120
10 20 30 40 50 60 70 80 90 100
Cv Factor
Valve Stroke

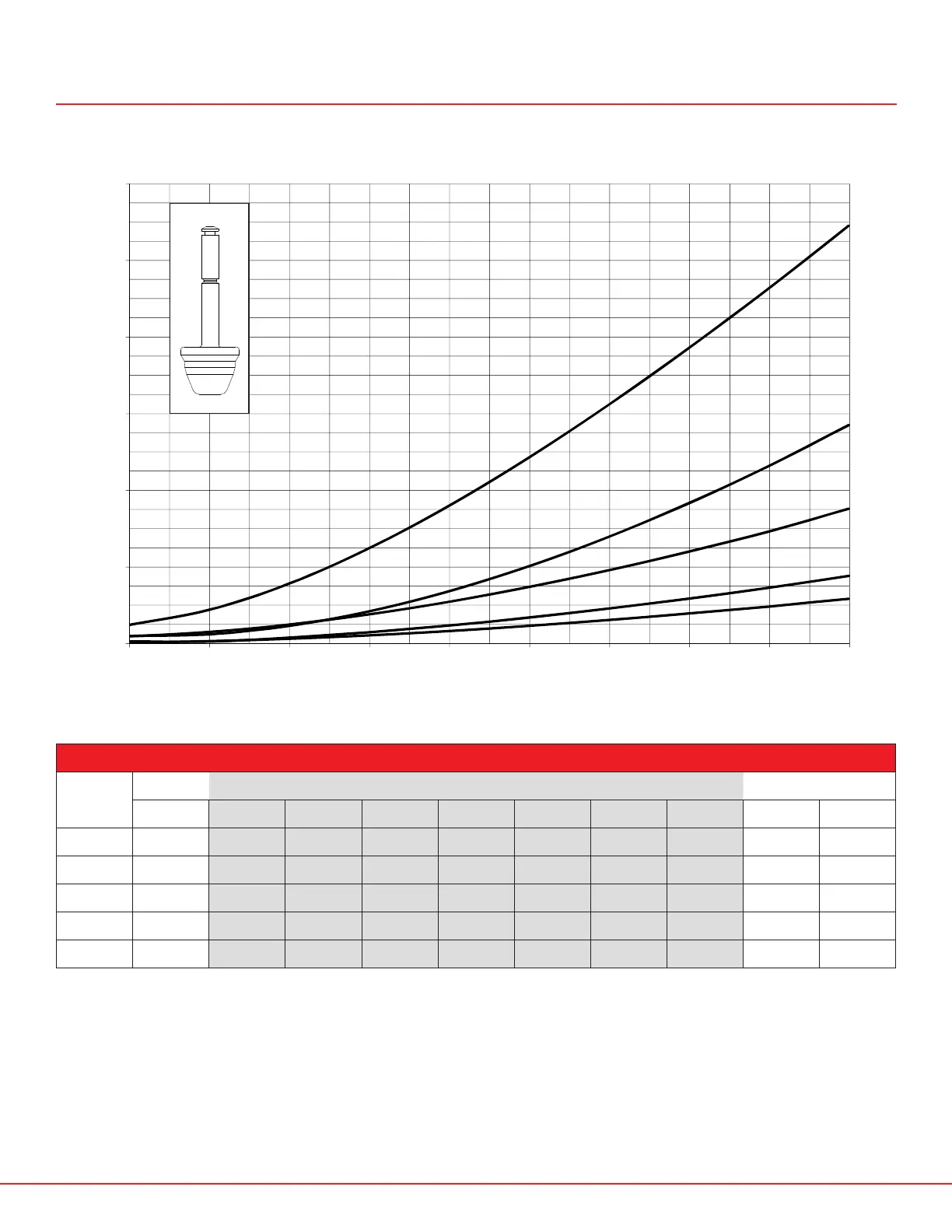

CV VS. % STROKE
VALVE
SIZE
OPERATING RANGE
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
1.0” 0.25 0.75 1.00 1.25 1.875 3.00 4.00 5.00 6.50 12.00
1.5” 0.50 1.00 2.00 3.00 4.00 6.50 6.80 8.30 9.30 14.30
2.0” 1.90 3.20 7.30 11.90 14.60 16.90 20.00 24.20 29.20 33.70
2.5” 2.00 3.90 8.70 14.80 20.40 26.00 31.00 37.00 47.00 53.50
3.0” 4.90 10.00 18.50 24.00 31.00 39.60 56.00 72.00 87.40 110.00
