SPI VALVES SP160 Series User Manual

43
PARTS LIST  SHORT STROKE SHUT OFF VALVES

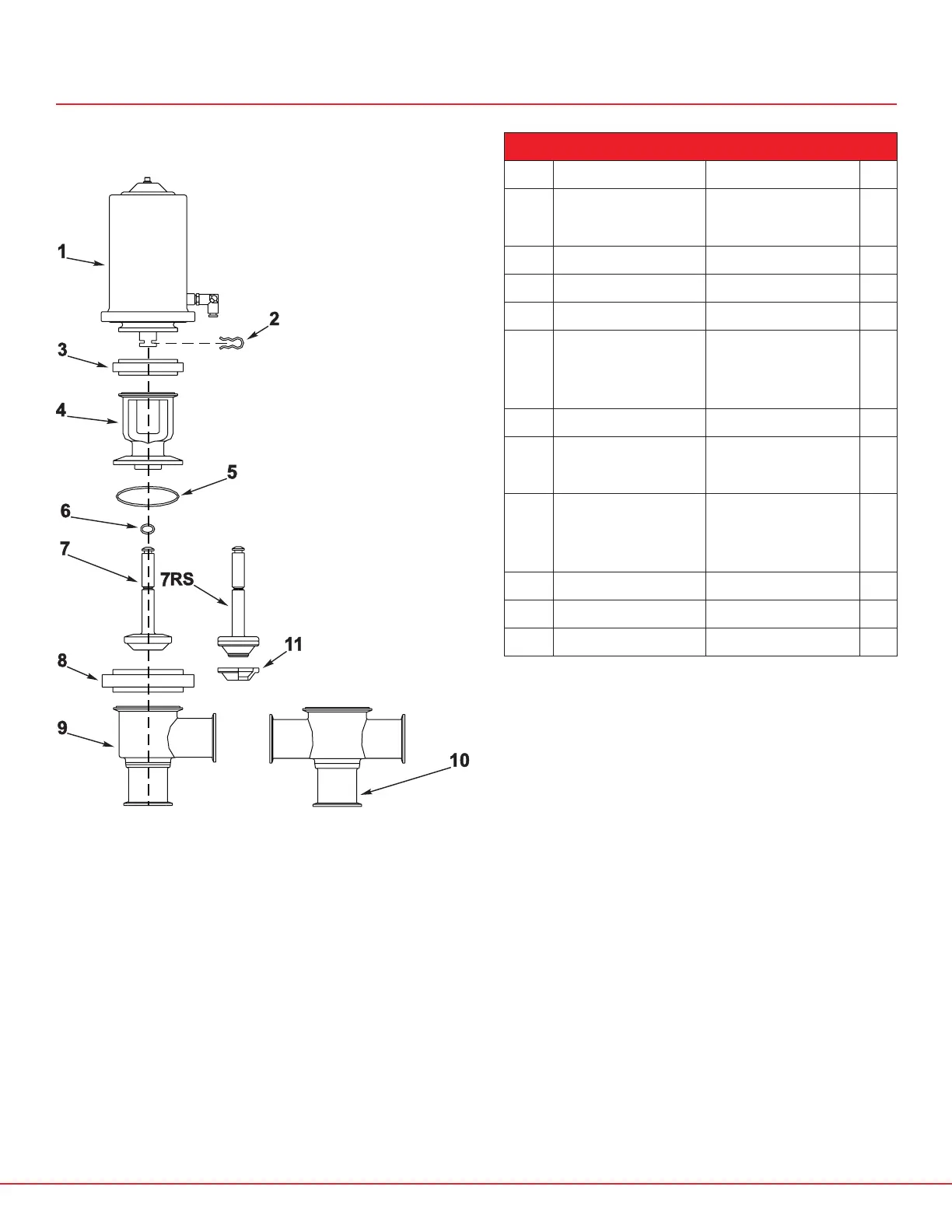

SP160 SHORT STROKE SHUT OFF VALVE
SHORT STROKE SHUT OFF VALVES
ITEM PART NUMBER DESCRIPTION KIT
1
SP10
SP20
SP30
Actuator (N.O.)
Actuator (N.C.)
Actuator (A/A)
2 SP160-7-1.5-9 Spring Clip ○
3 SP13Z-2.5 Bonnet Clamp
4 SP160-7-Size-3 Shut O Bonnet
5
SP40B-2.5
SP40B-3
SP40B-3.5
SP40B-4
Gasket for 1.5” Valve
Gasket for 2” Valve
Gasket for 2.5” Valve
Gasket for 3” Valve
○
6 SP10-6 Stem O-Ring ○
7
7RS
SP160-7-Size-2E
SP160-7-Size-2V
SP160-7RS-Size-2TS
Shut-o Stem (EPDM)
Shut-o Stem (Viton)
Shut-o Stem (PTFE)
8
SP13HC-2.5
SP13HC-3
SP13HC-3.5
SP13HC-4
Clamp for 1.5” Valve
Clamp for 2” Valve
Clamp for 2.5” Valve
Clamp for 3” Valve
9 SP160-7-Size-1 Tee Body
10 SP160-9-Size-1 Cross Body
11 SP160-7RS-Size-2TH Seat (PTFE)
○ INCLUDED IN SP20-RBK-SIZE VALVE SERVICE KIT
