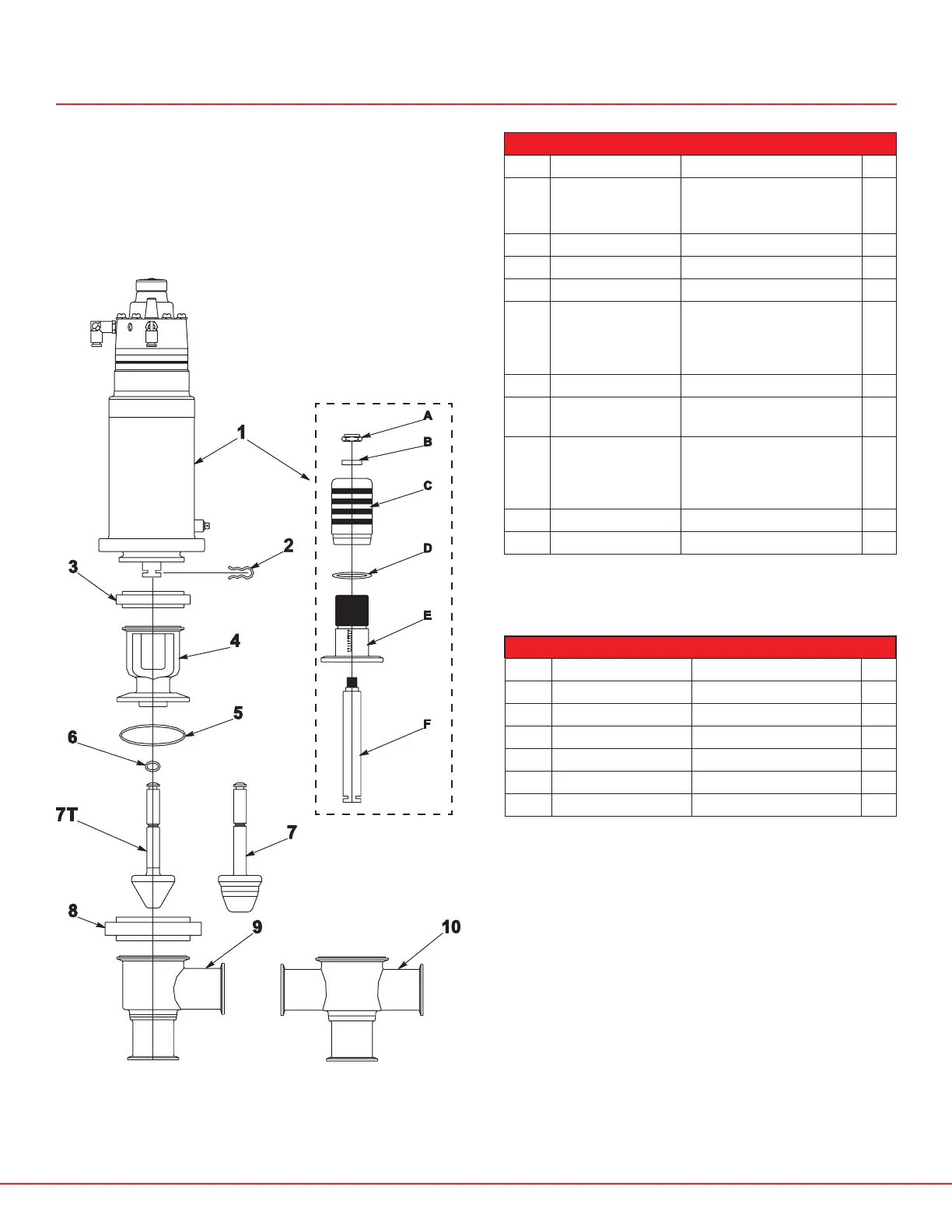

PARTS LIST MODULATING ACTUATOR
SP160 MODULATING VALVES
ITEM PART NUMBER DESCRIPTION KIT
1
SP10VPD
SP20VPR
SP160-7MH-H
Actuator (N.O.)
Actuator (N.C.)
Micrometer Handle
2 SP160-7-1.5-9 Spring Clip ○
3 SP13Z-2.5 Bonnet Clamp
4 SP160-7-Size-3 Bonnet
5
SP40B-2.5
SP40B-3
SP40B-3.5
SP40B-4
Gasket for 1.5” Valve
Gasket for 2” Valve
Gasket for 2.5” Valve
Gasket for 3” Valve
○
6 SP10-6 Stem O-Ring ○
7
7T
SP160-7M-Size-2
SP160-7MT-Size-2
Plug and Stem Multi-Taper
Plug and Stem Straight-Taper
8
SP13HC-2.5
SP13HC-3
SP13HC-3.5
SP13HC-4
Clamp for 1.5” Valve
Clamp for 2” Valve
Clamp for 2.5” Valve
Clamp for 3” Valve
9 SP160-7MT-Size-1 Tee Body
10 SP160-9MT-Size-1 Cross Body
○ INCLUDED IN SP20-RBK-SIZE VALVE SERVICE KIT
MICROMETER HANDLE
ITEM PART NUMBER DESCRIPTION KIT
A SP10-12 Stem Nut
B SP160-7MH-SW Space Washer
C SP160-7MH-H Micrometer Handle
D SP160-7MH-40 Bonnet O-Ring
E SP160-7MH-H-3 Micrometer Bonnet
F SP160-7MTH-2D Micrometer Stem
SP160-7M MULTI-TAPER
MODULATING VALVE
SP160-7MT STRAIGHT-TAPER
MODULATING VALVE
