IM-P337- 6 9 EMM Issue 2
14
Fig. 4b
Minimum
100 mm
Minimum
100 mm
Fig. 4a

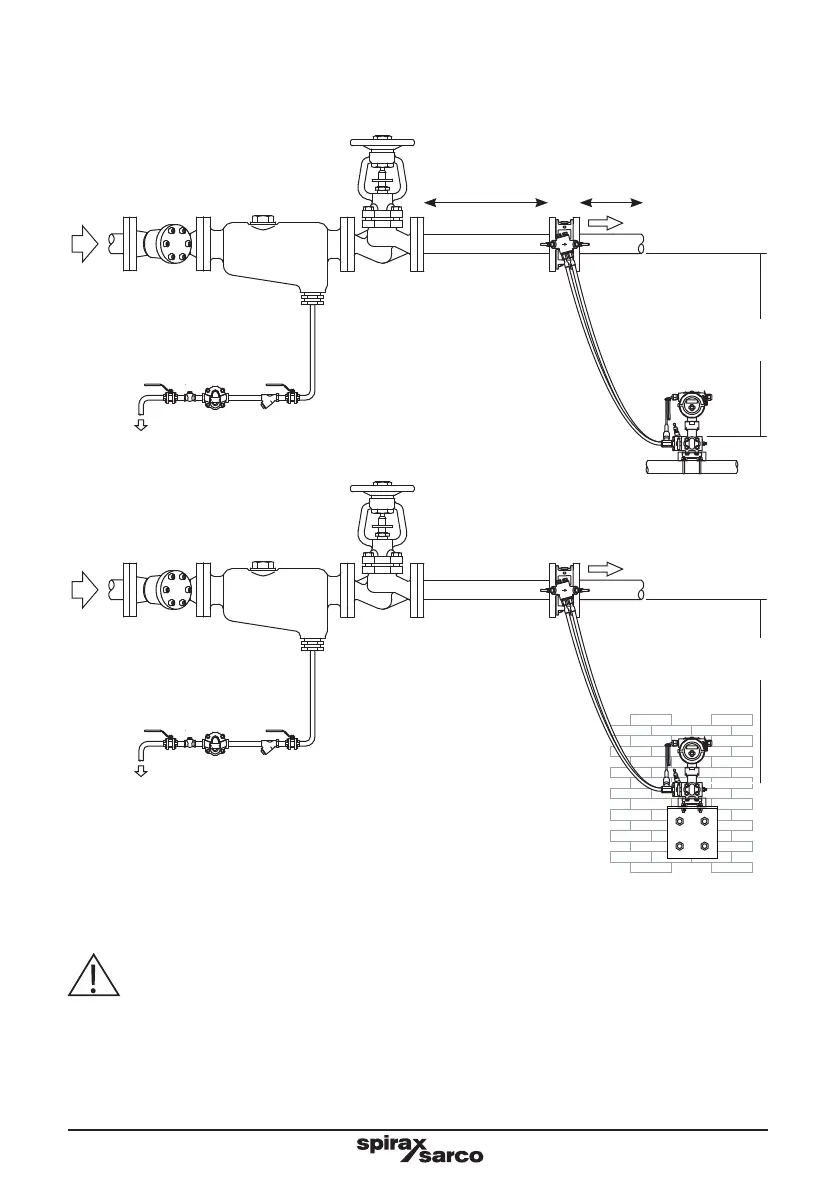

The MVT10 is supplied with a four bolt bracket and two U bolt fixings for mounting to a suitable structure. The
U bolts can be used to clamp the MVT10 to a suitably located pipe or bar up to 60 mm diameter, see Figure 4a.
Caution!
Do not clamp the MVT to another steam pipe. The pipe surface temperature must not exceed 60 °C.
Alternatively, the U bolts can be removed and the four bolt bracket can be directly mounted to a wall or
purpose made bracket, see Figure 4b.
Separator
Isolation valve
Strainer
6D
minimum
3D
minimum
Required installation
