IM-P337- 6 9 EMM Issue 2
21
4.6 How to fit the MVT10
MVT10 is supplied with a bracket which can be clamped
to small pipe (Æ60 mm), or fixed to a suitable wall. The
structure to which the MVT10 is fixed to should be robust
enough to carry the weight of the MVT10 (8 kg).
It is the responsibility of the installer to follow the
necessary safety requirements in this document, but also
specific site safety policies.
Do not attach to a pipe with temperature above 60 °C.

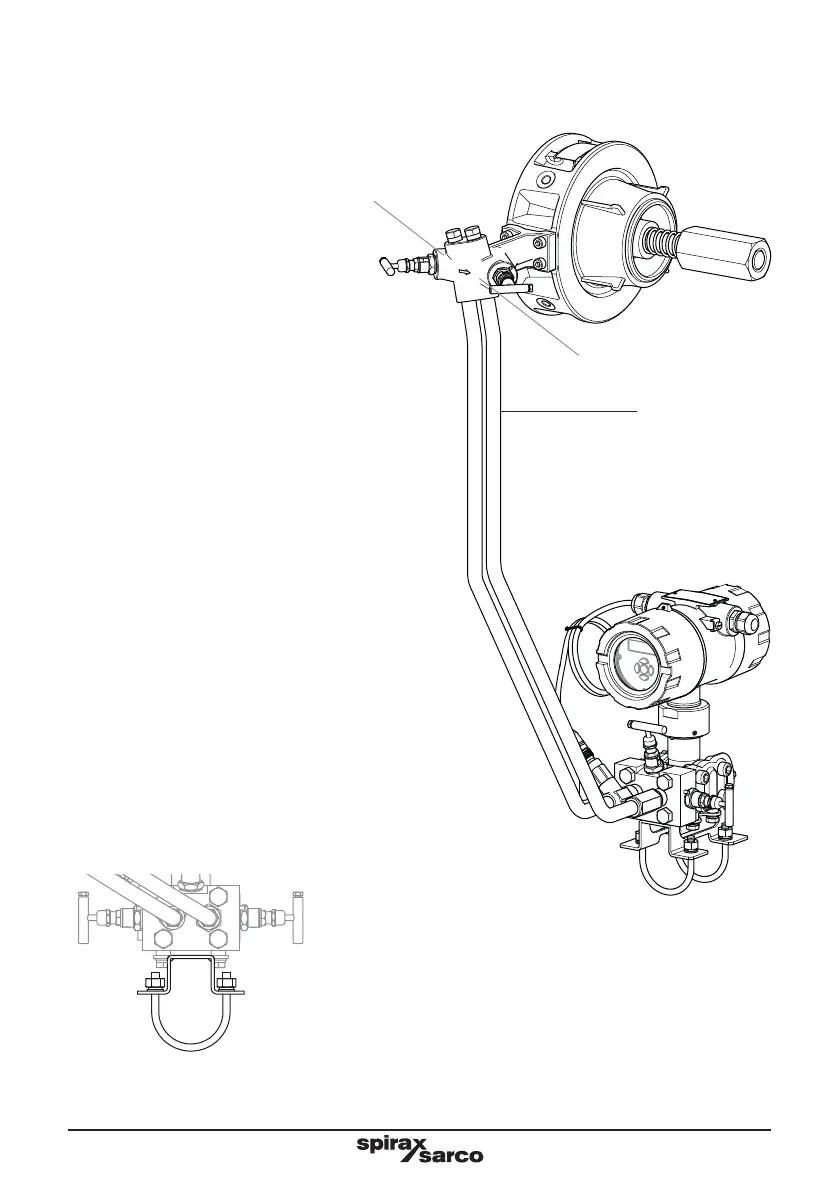

Fig. 17
Hard piping for
impulse lines
Hi
Lo
Fig. 16
4.5 Hard piped impulse lines
The ILVA20 and MVT10 can be installed with hard piping for
impulse lines (supplied by others). The general arrangement
should be as shown opposite.
