IM-P323-32
CTLS Issue 5
37
SX80 and SX90 Quickstart Guide

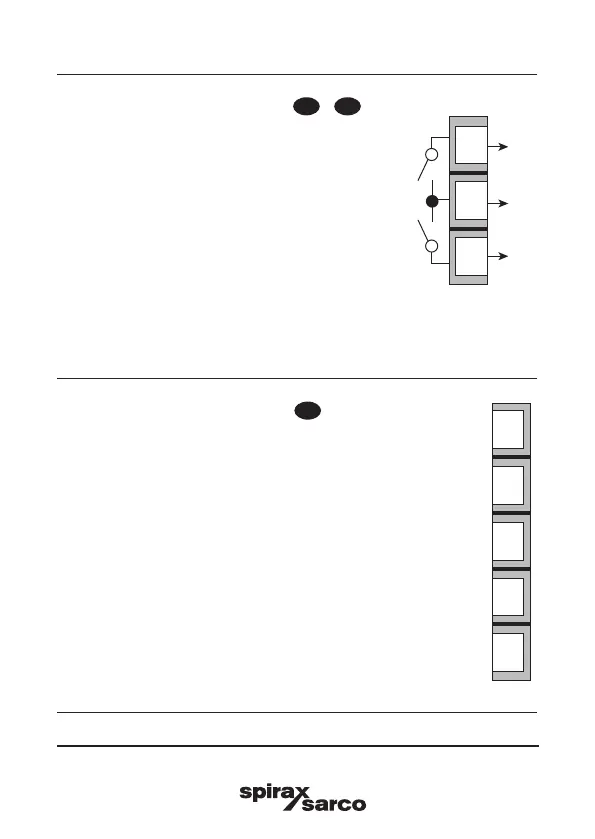

3.4.4.10 Outputs 5 and 6 (OP5/6)
5 6
SX90 only
Outputs 5 and 6 are supplied as normally open
(Form A) relays and are to control motor driven
valves.
They share a common connection and are,
therefore, not isolated from each other.
For alarm type see Quick Code, Code 3
- Contact rating: 2 A 264 Vac resistive – any terminal limited to 2 A.
- Isolated output 240 Vac.
3.4.4.11 Digital communications
12
SX90 only
Digital communications uses Modbus protocol.
It is available in SX90 only as EIA422 (EIA485
5-Wire).
- EIA422 or EIA485 (5-wire).
- Isolated 240 Vac.
5A
5B
5C
OP5
OP6
HB
HC
HD
HE
HF
Rx+
(A)
Rx-
(B)
Com.
Tx+
(A)
Tx-
(B)
